6GWIFI差分振荡器,X1G0051410604,SG3225HBN爱普生低耗能晶振
prevnext

6GWIFI差分振荡器,X1G0051410604,SG3225HBN爱普生低耗能晶振

尺寸3.20x2.50x1.20mm,频率250MHZ

6GWIFI差分振荡器,X1G0051410604,SG3225HBN有源晶振,EPSON爱普生晶振，尺寸3.20x2.50x1.20mm,频率250MHZ，输出逻辑HCSL，HCSL输出晶振，HCSL差分晶体振荡器，日本进口差分晶振，HCSL输出差分晶振，6G无线设备差分晶振，低抖动差分晶振，低相位差分振荡器，低电压差分晶振，SG3225HBN是一个低抖动，HCSL输出晶体振荡器。该产品是优秀的PCI Express®参考时钟满足PCIe®1.0到PCIe®5.0抖动要求.

差分晶振产品主要应用于nic, hba，PCI Express®串行通信，各种高速串行通信，以及网络设备，仪器设备，无线产品等领域。6GWIFI差分振荡器,X1G0051410604,SG3225HBN有源晶振,EPSON爱普生晶振.



订购热线：0755-27839151
QQ咨询 财付通

6GWIFI差分振荡器,X1G0051410604,SG3225HBN有源晶振,EPSON爱普生晶振，尺寸3.20x2.50x1.20mm,频率250MHZ，输出逻辑HCSL，HCSL输出晶振，HCSL差分晶体振荡器，日本进口差分晶振，HCSL输出差分晶振，6G无线设备差分晶振，低抖动差分晶振，低相位差分振荡器，低电压差分晶振，SG3225HBN是一个低抖动，HCSL输出晶体振荡器。该产品是优秀的PCI Express®参考时钟满足PCIe®1.0到PCIe®5.0抖动要求.

差分晶振产品主要应用于nic, hba，PCI Express®串行通信，各种高速串行通信，以及网络设备，仪器设备，无线产品等领域。6GWIFI差分振荡器,X1G0051410604,SG3225HBN有源晶振,EPSON爱普生晶振.耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

6GWIFI差分振荡器,X1G0051410604,SG3225HBN有源晶振,EPSON爱普生晶振      参数表

Item Symbol Specifications Conditions / Remarks
Output frequency range f0 250MHz Please contact us for inquiries regarding available frequencies.
Supply voltage VCC D:2.5V ±0.125V, C:3.3V ±0.165V
Storage temperature T_stg -55℃ to +125℃ Store as bare product.
Operating temperature T_use G: -40℃ to +85℃, H: -40℃ to +105℃
Frequency tolerance f_tol J: ± 50 × 10-6
(Not available H: -40℃ to +105℃) 		Includes initial tolerance, temperature change,
Vcc change and 10 years aging(+25 °C)
L: ± 100 × 10-6 Includes initial tolerance, temperature change,
Vcc change and 10 years aging(+25 °C)
Current consumption ICC 25 mA Typ. , 35mA Max. OE=VCC,with output load
Disable current I_dis 15mA Max. OE=GND
Symmetry SYM 45% to 55% At outputs crossing point
Output voltage VOH 0.75 V Typ., 0.66V to 0.85V DC characteristics, single output
VOL 0 V Typ., -0.15V to 0.15V
Crossing voltage VCR 0.25V to 0.55V
Output load condition L_HCSL 50Ω
RS 33Ω
Input voltage VIH 70% VCC Min. OE terminal
VIL 30% VCC Max.
Differential output
rise slew rate/ fall slew rate 		Rr / Rf 1 V/ns to 4V/ns Between -0.15 V and 0.15 V of differential output
Start-up time t_str 10ms Max. Time at minimum supply voltage to be 0 s
  Output
frequency 		100 MHz 125 MHz 156.25 MHz 200 MHz 322.265625 MHz Supply voltage
Phase Jitter [fs]
Offset Frequency
12 kHz to 20MHz 		Typ. 110 95 85 75 65 3.3V ± 0.165V
Max. 180 160 140 125 110
耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

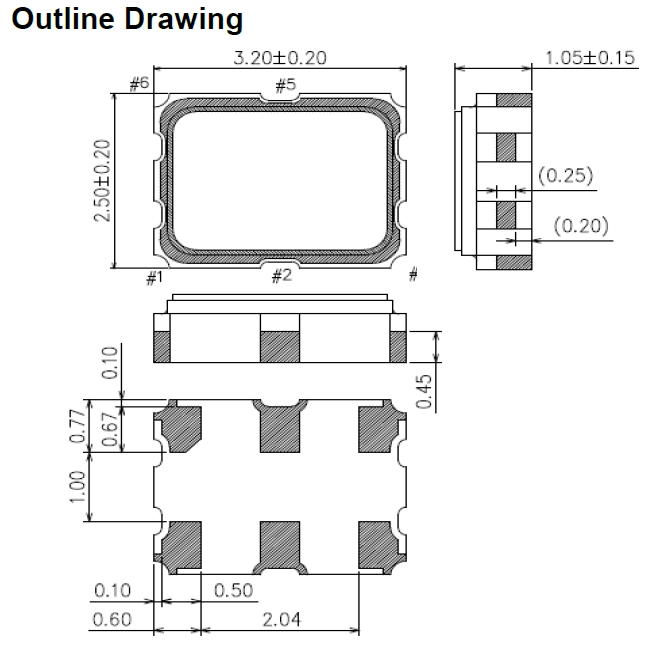

6GWIFI差分振荡器,X1G0051410604,SG3225HBN有源晶振,EPSON爱普生晶振   尺寸图SG3225HBN 3

有源晶振产品特性：

HCSL输出，低抖动SPXO

相位抖动:最大180秒。

fo = 100 MHz, 12 kHz至20 MHz有效值

频率范围:100mhz ~ 325mhz

供电电压选择:2.5 V型。/ 3.3 V类型

频率公差选择:±50 × 10-6，±100 × 10-6

工作温度可选:

-40ºC至+85ºC和-40ºC至+105ºC


SG3225HBN 1

SG3225HBN

更多相关日本爱普生晶振型号

编码 品牌 型号 频率 尺寸 输出方式 电源电压 工作温度
X1G0045110601 爱普生晶振 SG7050EBN 156.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110602 爱普生晶振 SG7050EBN 125.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110603 爱普生晶振 SG7050EBN 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0050110000 爱普生晶振 SG-8503CA 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050110003 爱普生晶振 SG-8503CA 156.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050110004 爱普生晶振 SG-8503CA 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050110005 爱普生晶振 SG-8503CA 125.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050111001 爱普生晶振 SG-8503CA 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050210000 爱普生晶振 SG-8504CA 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050210003 爱普生晶振 SG-8504CA 75.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050210004 爱普生晶振 SG-8504CA 62.500000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050210005 爱普生晶振 SG-8504CA 106.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050210006 爱普生晶振 SG-8504CA 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050210007 爱普生晶振 SG-8504CA 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050211001 爱普生晶振 SG-8504CA 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050310000 爱普生晶振 SG-8506CA 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050310003 爱普生晶振 SG-8506CA 622.080000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050311001 爱普生晶振 SG-8506CA 156.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1M0000910001 爱普生晶振 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910002 爱普生晶振 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910003 爱普生晶振 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910004 爱普生晶振 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V -5 to 85 °C
X1M0000910005 爱普生晶振 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V -20 to 70 °C
X1M0000910006 爱普生晶振 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910007 爱普生晶振 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V -5 to 85 °C
X1M0000910008 爱普生晶振 EG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910009 爱普生晶振 EG-2102CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910010 爱普生晶振 EG-2102CA 322.265625 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V -5 to 85 °C
X1M0001010002 爱普生晶振 EG-2121CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 2.375 to 2.625 V 0 to 70 °C
X1M0001410001 爱普生晶振 EG-4101CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0001410002 爱普生晶振 EG-4101CA 281.333300 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0001410003 爱普生晶振 EG-4101CA 106.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0001410004 爱普生晶振 EG-4101CA 698.812300 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0001410007 爱普生晶振 EG-4101CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0001410008 爱普生晶振 EG-4101CA 400.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0001410010 爱普生晶振 EG-4101CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0001410013 爱普生晶振 EG-4101CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0001410014 爱普生晶振 EG-4101CA 644.531200 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0001410017 爱普生晶振 EG-4101CA 156.253906 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -40 to 85 °C
X1M0002010001 爱普生晶振 EG-2102CB 133.330000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010002 爱普生晶振 EG-2102CB 150.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010003 爱普生晶振 EG-2102CB 133.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010004 爱普生晶振 EG-2102CB 156.250000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010005 爱普生晶振 EG-2102CB 212.500000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0002010006 爱普生晶振 EG-2102CB 644.531300 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010007 爱普生晶振 EG-2102CB 625.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0002010008 爱普生晶振 EG-2102CB 100.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0002010009 爱普生晶振 EG-2102CB 150.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010010 爱普生晶振 EG-2102CB 106.250000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0002110001 爱普生晶振 EG-2121CB 156.250000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0002110002 爱普生晶振 EG-2121CB 212.500000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.375 to 2.625 V -20 to 70 °C
X1M0002110003 爱普生晶振 EG-2121CB 156.250000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.375 to 2.625 V -20 to 70 °C
X1M0002110004 爱普生晶振 EG-2121CB 322.265625 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.375 to 2.625 V -20 to 70 °C
X1M0003010002 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010003 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010004 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010006 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010007 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010008 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010009 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010010 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010011 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010012 爱普生晶振 XG-2102CA 133.330000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010013 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010014 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
