日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振

尺寸5.0*3.2mm,频率13.56MHZ

日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振，尺寸5.0*3.2mm,频率13.56MHZ，NDK无源晶振，日本进口晶振，日本电波贴片晶振，5032mm贴片晶振，贴片陶瓷晶振，陶瓷谐振器，SMD晶振，无源贴片晶振，无源晶体，两脚贴片晶振，无线通讯晶振，轻薄型晶体，SMD晶体谐振器，水晶振动子，汽车级晶振，视频参考晶振，时钟源专用晶振，音频设备晶振，影音系统晶振，低损耗晶振，低功耗晶振，低耗能晶振，高质量晶振，具有高质量低损耗的特点。

无源晶振产品超级适合用于汽车配件和视频参考时钟源和音频设备，通信设备，影音系统等应用领域。日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振.

订购热线：0755-27839151

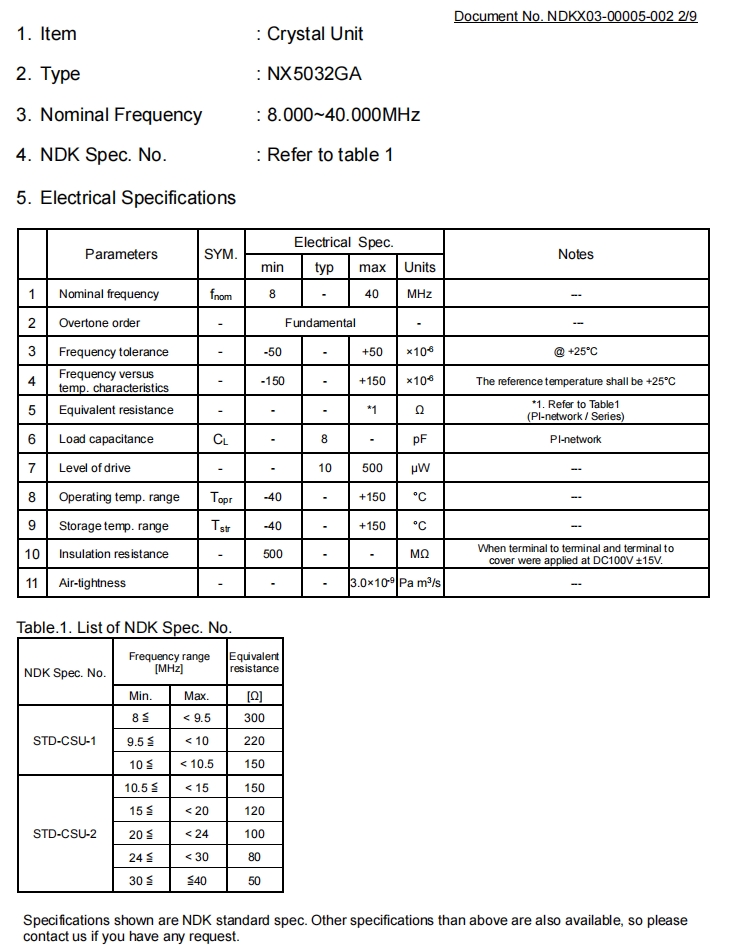

日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振 参数表

Parameters	SYM.	Electrical Spec.				Notes
		min	typ	max	Units
Nominal frequency	fnom		13.56		MHz	---
Overtone order	-	Fundamental			-	---
Frequency tolerance	-	-50	-	+50	×10-6	@ +25°C
Frequency versus temp. characteristics	-	-150	-	+150	×10-6	The reference temperature shall be +25°C
Equivalent resistance	-	-	-	*1	Ω	*1. Refer to Table1 (IEC PI-network / Series)
Load capacitance	CL	-	8	-	pF	IEC PI-network
Level of drive	-	-	10	200	µW	---
Operating temp. range	Topr	-40	-	+150	°C	---
Storage temp. range	Tstr	-40	-	+150	°C	---
Insulation resistance	-	500	-	-	MΩ	When terminal to terminal and terminal to cover were applied at DC100V ±15V.
Air-tightness	-	-	-	3.0×10-9	Pa m3/s	---

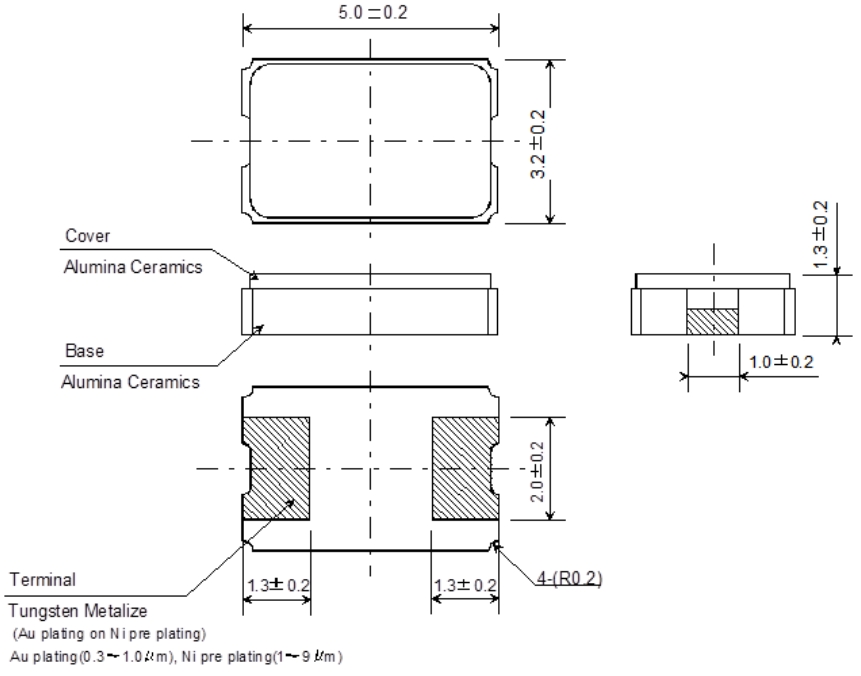

日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振 尺寸图

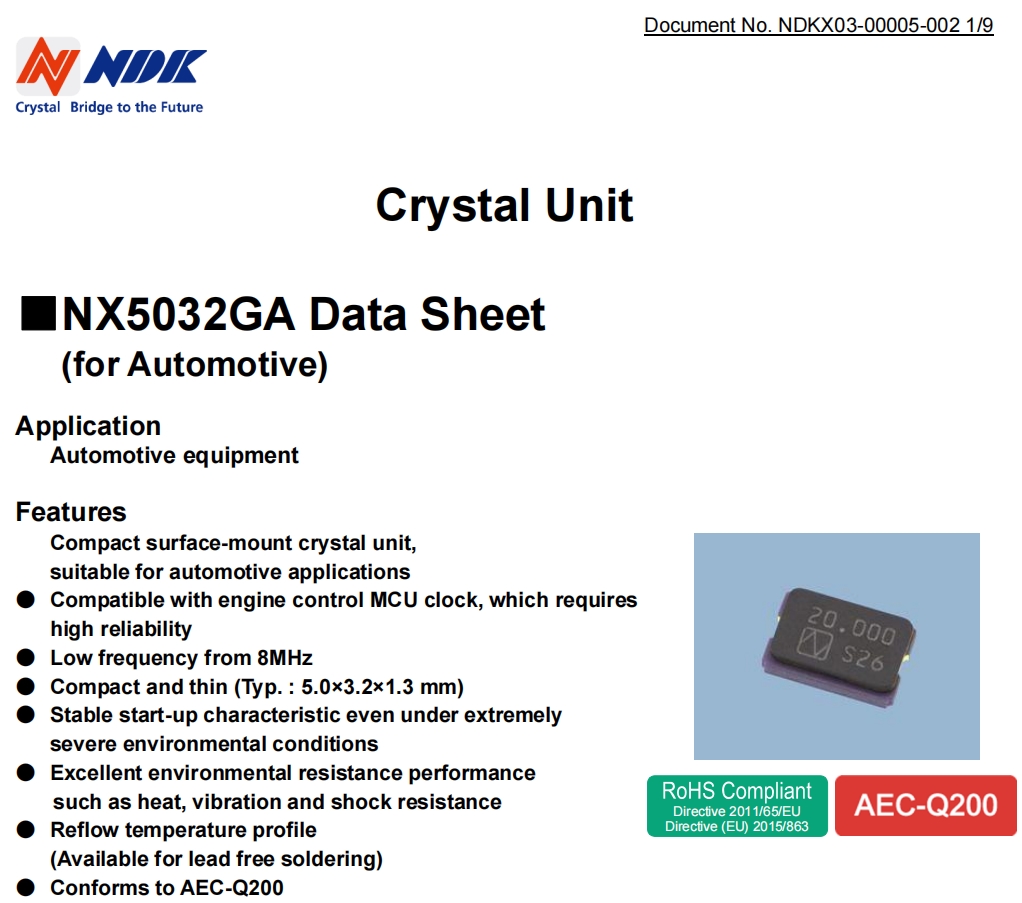

日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振

陶瓷晶振产品特性：

适用于汽车配件和视频参考时钟源和音频设备

紧凑型和薄(典型。:5.0×3.2×1.3毫米)

8MHz以下的低频

优异的耐热等耐环境性能和耐震强度

回流温度曲线(适用于无铅焊接)

进口晶振	Nominal frequency[MHz]	Specification number	Package size(LxW)[mm]	Operating temperature rang[℃]	Storage temperature range[℃]	Frequency tolerance[ppm]
NX3225GB	50	STD-CRA-2	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	7.998	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	8	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	8.018	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	8.192	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	9.18	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	9.185	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	9.509	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	9.844	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	9.99	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	10	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	11	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	11.059	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX3225GD	11.29	STD-CRA-3	3.2×2.5	-40~+150	-40~+150	±50
NX5032GA	8	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	8.192	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	9	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	9.216	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	9.519	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	9.6	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	9.83	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	9.844	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	10	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	10.178	STD-CSK-3	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	11.059	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	11.29	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	12	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	12.288	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	12.5	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	12.58	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	12.732	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	12.75	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	13	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	13.081	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	13.226	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	13.4	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	13.44	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	13.5	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	13.56	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	13.824	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	14	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	14.188	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	14.297	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	14.3	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	14.318	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	14.4	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	14.5	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	14.746	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	15	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	15.36	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	15.968	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	15.974	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	15.978	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.013	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.384	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.5	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.589	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.6	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.667	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.67	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.7	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.777	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.9	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	16.92	STD-CSK-4	5032贴片晶振	-10~+70	-40~+85	±20
NX5032GA	16.934	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	17.328	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	17.581	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	17.734	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	18	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	18.432	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	19	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	19.07	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	19.07	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	19.2	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	19.312	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	19.313	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	19.661	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	20	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	20.25	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
NX5032GA	20.48	STD-CSK-4	5.0×3.2	-10~+70	-40~+85	±20
