DF18CC1-20.000MHZ-T,Mmdcomp晶振,D系列晶体,20MHZ

尺寸13.2*4.5MHZ,频率20MHZ

DF18CC1-20.000MHZ-T,Mmdcomp晶振,D系列晶体,20MHZ，尺寸13.2*4.5MHZ,频率20MHZ，麦迪康SMD晶体，大尺寸无源晶振，Mmdcomp Crystal，欧美进口晶振，石英水晶振动子，无源贴片晶振，无源晶振，石英无源晶体，石英晶体谐振器，SMD晶体，进口石英晶振，可视化电话晶振，家电影音系统晶振，摄像头专用晶振，家用电视晶振，数字视频晶振，数字电表晶振，电子体重秤晶振，血压计晶振，高性能晶振，高品质晶振，低损耗晶振，低功耗晶振，具有高品质低损耗的特点。

高品质晶振产品非常适合用于可视化电话，家电影音系统，摄像头，家用电视，数字视频，数字电表，电子体重秤，血压计等应用。DF18CC1-20.000MHZ-T,Mmdcomp晶振,D系列晶体,20MHZ.

订购热线：0755-27839151

DF18CC1-20.000MHZ-T,Mmdcomp晶振,D系列晶体,20MHZ 参数表

Frequency Range			20.000MHz
Frequency Tolerance / Stability			(See Part Number Guide for Options)
Operating Temperature Range			(See Part Number Guide for Options)
Storage Temperature			-55°C to +125°C
Aging			±5ppm / first year Max
Shunt Capacitance			7pF Max
Load Capacitance			20pF Standard
			(See Part Number Guide for Options)

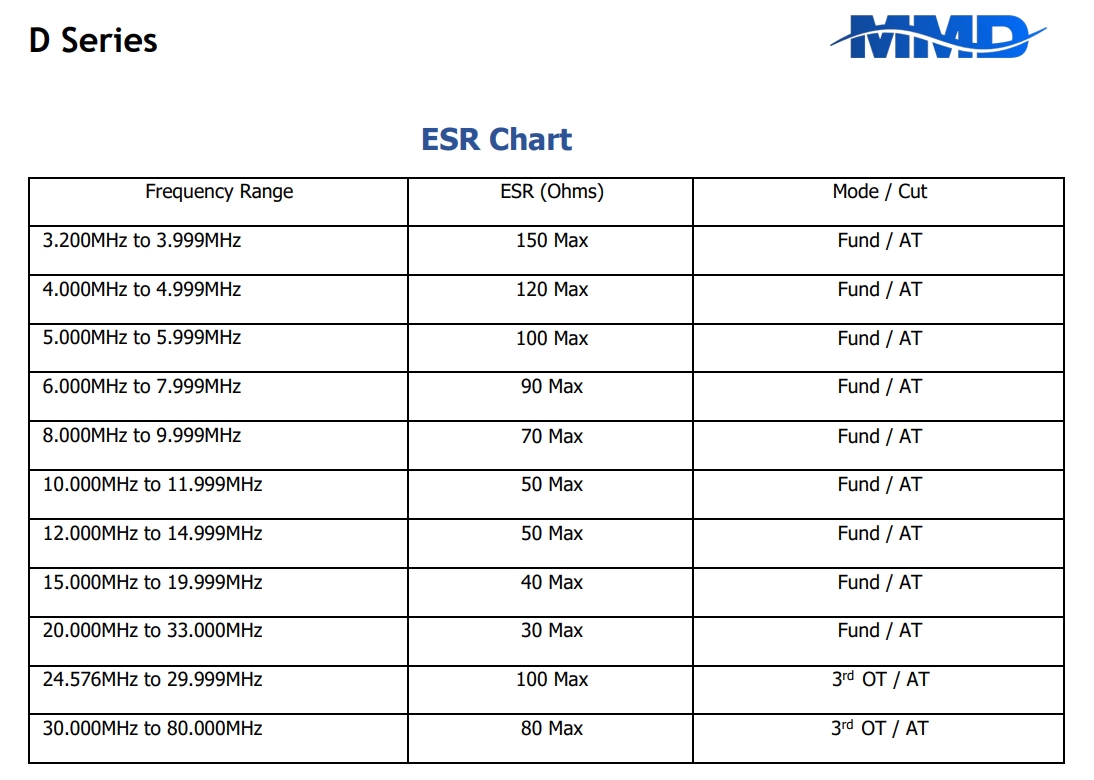

Equivalent Series Resistance			See ESR Chart
Mode of Operation			See ESR Chart
Drive Level			1mW Max

DF18CC1-20.000MHZ-T,Mmdcomp晶振,D系列晶体,20MHZ 尺寸图

DF18CC1-20.000MHZ-T,Mmdcomp晶振,D系列晶体,20MHZ

产品特性：

HC-49/S SMD晶振

第三引线接地选项可用

宽频率范围

基本或第三次OT AT切割

Mfr Part #	进口晶振厂家	Description	Series	Frequency	Frequency Stability
DF18CC1-10.240MHZ-T	麦迪康晶振	CRYSTAL 10.2400MHZ 18PF SMD	D	10.24 MHz	±30ppm
DF18CC1-3.6864MHZ-T	麦迪康晶振	CRYSTAL 3.6864MHZ 18PF SMD	D	3.6864 MHz	±30ppm
DF18CC1-4.500MHZ-T	麦迪康晶振	CRYSTAL 4.5000MHZ 18PF SMD	D	4.5 MHz	±30ppm
DF18CC1-15.000MHZ-T	麦迪康晶振	CRYSTAL 15.0000MHZ 18PF SMD	D	15 MHz	±30ppm
DF18CC1-3.579545MHZ-T	麦迪康晶振	CRYSTAL 3.579545MHZ 18PF SMD	D	3.579545 MHz	±30ppm
DF18CC1-13.000MHZ-T	麦迪康晶振	CRYSTAL 13.0000MHZ 18PF SMD	D	13 MHz	±30ppm
DF18CC1-14.31818MHZ-T	麦迪康晶振	CRYSTAL 14.31818MHZ 18PF SMD	D	14.31818 MHz	±30ppm
T10GC1-20.000MHZ-T	麦迪康晶振	CRYSTAL 20.0000MHZ 10PF SMD	T	20 MHz	±30ppm
X10CB1-40.000MHZ-T	麦迪康晶振	CRYSTAL 40.0000MHZ 10PF SMD	X	40 MHz	±30ppm
X10CB1-30.000MHZ-T	麦迪康晶振	CRYSTAL 30.0000MHZ 10PF SMD	X	30 MHz	±30ppm
X10CB1-24.576MHZ-T	麦迪康晶振	CRYSTAL 24.5760MHZ 10PF SMD	X	24.576 MHz	±30ppm
X10CB1-22.1184MHZ-T	麦迪康晶振	CRYSTAL 22.1184MHZ 10PF SMD	X	22.1184 MHz	±30ppm
X10CB1-27.000MHZ-T	麦迪康晶振	CRYSTAL 27.0000MHZ 10PF SMD	X	27 MHz	±30ppm
X10CB1-32.000MHZ-T	麦迪康晶振	CRYSTAL 32.0000MHZ 10PF SMD	X	32 MHz	±30ppm
X10CB1-25.000MHZ-T	麦迪康晶振	CRYSTAL 25.0000MHZ 10PF SMD	X	25 MHz	±30ppm
DF18CC1-20.000MHZ-T	麦迪康晶振	CRYSTAL 20.0000MHZ 18PF SMD	D	20 MHz	±30ppm
DF18CC1-24.576MHZ-T	麦迪康晶振	CRYSTAL 24.5760MHZ 18PF SMD	D	24.576 MHz	±30ppm
DF18CC1-4.433619MHZ-T	麦迪康晶振	CRYSTAL 4.433619MHZ 18PF SMD	D	4.433619 MHz	±30ppm
DF18CC1-19.6608MHZ-T	麦迪康晶振	CRYSTAL 19.6608MHZ 18PF SMD	D	19.6608 MHz	±30ppm
DF18CC1-14.7456MHZ-T	麦迪康晶振	CRYSTAL 14.7456MHZ 18PF SMD	D	14.7456 MHz	±30ppm
DF18CC1-30.000MHZ-T	麦迪康晶振	CRYSTAL 30.0000MHZ 18PF SMD	D	30 MHz	±30ppm
DF18CC1-16.9344MHZ-T	麦迪康晶振	CRYSTAL 16.9344MHZ 18PF SMD	D	16.9344 MHz	±30ppm
DF18CC1-6.144MHZ-T	麦迪康晶振	CRYSTAL 6.1440MHZ 18PF SMD	D	6.144 MHz	±30ppm
DF18CC1-7.3728MHZ-T	麦迪康晶振	CRYSTAL 7.3728MHZ 18PF SMD	D	7.3728 MHz	±30ppm
DF18CC1-4.194304MHZ-T	麦迪康晶振	CRYSTAL 4.194304MHZ 18PF SMD	D	4.194304 MHz	±30ppm
DF18CC1-18.432MHZ-T	麦迪康晶振	CRYSTAL 18.4320MHZ 18PF SMD	D	18.432 MHz	±30ppm
DF18CC1-15.360MHZ-T	麦迪康晶振	CRYSTAL 15.3600MHZ 18PF SMD	D	15.36 MHz	±30ppm
DF18CC1-6.7458MHZ-T	麦迪康晶振	CRYSTAL 6.7458MHZ 18PF SMD	D	6.7458 MHz	±30ppm
DF18CC1-18.000MHZ-T	麦迪康晶振	CRYSTAL 18.0000MHZ 18PF SMD	D	18 MHz	±30ppm
DF18CC1-12.000MHZ-T	麦迪康晶振	CRYSTAL 12.0000MHZ 18PF SMD	D	12 MHz	±30ppm
DF18CC1-4.9152MHZ-T	麦迪康晶振	CRYSTAL 4.9152MHZ 18PF SMD	D	4.9152 MHz	±30ppm
DF18CC1-28.63636MHZ-T	麦迪康晶振	CRYSTAL 28.63636MHZ 18PF SMD	D	28.63636 MHz	±30ppm
DF18CC1-6.000MHZ-T	麦迪康晶振	CRYSTAL 6.0000MHZ 18PF SMD	D	6 MHz	±30ppm
DF18CC1-5.000MHZ-T	麦迪康晶振	CRYSTAL 5.0000MHZ 18PF SMD	D	5 MHz	±30ppm
DF18CC1-13.500MHZ-T	麦迪康晶振	CRYSTAL 13.5000MHZ 18PF SMD	D	13.5 MHz	±30ppm
DF18CC1-24.000MHZ-T	麦迪康晶振	CRYSTAL 24.0000MHZ 18PF SMD	D	24 MHz	±30ppm
DF18CC1-11.0592MHZ-T	麦迪康晶振	CRYSTAL 11.0592MHZ 18PF SMD	D	11.0592 MHz	±30ppm
DF18CC1-9.216MHZ-T	麦迪康晶振	CRYSTAL 9.2160MHZ 18PF SMD	D	9.216 MHz	±30ppm
DF18CC1-12.288MHZ-T	麦迪康晶振	CRYSTAL 12.2880MHZ 18PF SMD	D	12.288 MHz	±30ppm
T10GC1-22.1184MHZ-T	麦迪康晶振	CRYSTAL 22.1184MHZ 10PF SMD	T	22.1184 MHz	±30ppm
T10GC1-24.000MHZ-T	麦迪康晶振	CRYSTAL 24.0000MHZ 10PF SMD	T	24 MHz	±30ppm
T10GC1-19.200MHZ-T	麦迪康晶振	CRYSTAL 19.2000MHZ 10PF SMD	T	19.2 MHz	±30ppm
T10GC1-24.576MHZ-T	麦迪康晶振	CRYSTAL 24.5760MHZ 10PF SMD	T	24.576 MHz	±30ppm
T10GC1-16.000MHZ-T	麦迪康晶振	CRYSTAL 16.0000MHZ 10PF SMD	T	16 MHz	±30ppm
T10GC1-16.384MHZ-T	麦迪康晶振	CRYSTAL 16.3840MHZ 10PF SMD	T	16.384 MHz	±30ppm
T10GC1-48.000MHZ-T	麦迪康晶振	CRYSTAL 48.0000MHZ 10PF SMD	T	48 MHz	±30ppm
X10CB1-16.000MHZ-T	麦迪康晶振	CRYSTAL 16.0000MHZ 10PF SMD	X	16 MHz	±30ppm
X10CB1-16.3676MHZ-T	麦迪康晶振	CRYSTAL 16.3676MHZ 10PF SMD	X	16.3676 MHz	±30ppm
X10CB1-26.000MHZ-T	麦迪康晶振	CRYSTAL 26.0000MHZ 10PF SMD	X	26 MHz	±30ppm
X10CB1-24.000MHZ-T	麦迪康晶振	CRYSTAL 24.0000MHZ 10PF SMD	X	24 MHz	±30ppm
X10CB1-16.384MHZ-T	麦迪康晶振	CRYSTAL 16.3840MHZ 10PF SMD	X	16.384 MHz	±30ppm
WC26SMFD-32.768KHZ-T	麦迪康晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	WC26SM	32.768 kHz	-
DF18CC1-8.000MHZ-T	麦迪康晶振	CRYSTAL 8.0000MHZ 18PF SMD	D	8 MHz	±30ppm
WC38F-32.768KHZ	麦迪康晶振	2 PIN THROUGH HOLE METAL PACKAGE	WC	32.768 kHz	-
WC26F-32.768KHZ	麦迪康晶振	2 PIN THROUGH HOLE METAL PACKAGE	WC	32.768 kHz	-
X10CB1-48.000MHZ-T	麦迪康晶振	CRYSTAL 48.0000MHZ 10PF SMD	X	48 MHz	±30ppm
X10CB1-20.000MHZ-T	麦迪康晶振	CRYSTAL 20.0000MHZ 10PF SMD	X	20 MHz	±30ppm
DF18CC1-25.000MHZ-T	麦迪康晶振	CRYSTAL 25.0000MHZ 18PF SMD	D	25 MHz	±30ppm
T10GC1-18.432MHZ-T	麦迪康晶振	CRYSTAL 18.4320MHZ 10PF SMD	T	18.432 MHz	±30ppm
X10CB1-19.200MHZ-T	麦迪康晶振	CRYSTAL 19.2000MHZ 10PF SMD	X	19.2 MHz	±30ppm
T10GC1-16.3676MHZ-T	麦迪康晶振	CRYSTAL 16.3676MHZ 10PF SMD	T	16.3676 MHz	±30ppm
X10CB1-18.432MHZ-T	麦迪康晶振	CRYSTAL 18.4320MHZ 10PF SMD	X	18.432 MHz	±30ppm
