X1G0054410201/TG2016SMN/2016/TCXO/±1.5ppm/SMD/16.368000MHz

频率：10~55MHz，尺寸：2.0x1.6mm

X1G0054410201/TG2016SMN/2016/TCXO/±1.5ppm/SMD/16.368000MHz，爱普生晶振型号TG2016SMN，产品编码：X1G0054410201，产品型号：TG2016SMN16.368000MHzTFGNNM温度补偿晶振，是一款小体积晶振尺寸2.0x1.6mm四脚贴片晶振，石英晶振，温补晶体振荡器，电源电压：1.8V~3.3V，工作温度：-40~+85℃，有源晶振，高稳定性和低相位噪声的TCXO晶振，使用Epson开发和制造的IC和MHz基晶体。相位噪声是爱普生紧凑的TCXO产品系列中最低的，使其成为GNSS和其他无线通信设备的理想参考时钟。石英晶体振荡器具有超小型，轻薄型，低抖动，低功耗，低耗能，低电源电压，低损耗，低电平，低相位噪声等特点，被应用于GNSS射频无线通信设备LTE、WiMAX、Wi-Fi、W-LAN网联网，无线网络，蓝牙模块等.

订购热线：0755-27839151

X1G0054410201/TG2016SMN/2016/TCXO/±1.5ppm/SMD/16.368000MHz，参数图

TG2016SMN/ TG2520SMN	Symbol	VC-TCXO	TCXO	Conditions / Remarks
输出频率范围	f0	10 MHz to 55MHz
输出频率范围	f0	16.368 MHz, 16.369 MHz, 19.2 MHz, 26 MHz, 32 MHz, 38.4 MHz and 40 MHz		Standard frequency
电源电压	VCC	1.8 V ±0.1 V / 2.8 V ±5 % / 3.0 V ±5 % / 3.3 V ±5 %		Supply voltage range :1.7 V to 3.63 V
储存温度	T_stg	-40 °C to +90 °C		Storage as single product.
工作温度	T_use	G: -40 °C to +85 °C
频率容差	f_tol	±1.5 ´ 10-6 Max.		After reflow, +25 °C
“频率/温度特性”	f0-TC	C: ±0.5 ´ 10-6 Max. / G: -40 °C to +85 °C F: ±2.0 ´ 10-6 Max. / G: -40 °C to +85 °C		Standard stability version
频率/负载系数	f0-Load	±0.1 ´ 10-6 Max.		10 kW // 10 pF ±10 %
频率/电压系数	f0-VCC	±0.1 ´ 10-6 Max.		VCC ± 5 %
频率老化	f_age	±0.5 ´ 10-6 Max.		+25 °C, First year, 10MHz, 12 MHz≤ f0 ≤20 MHz, 24 MHz≤ f0 ≤40 MHz
频率老化	f_age	±1.5 ´ 10-6 Max.		+25 °C ,First year, 10 MHz< f0 <12 MHz, 20 MHz< f0 <24 MHz, 40 MHz< f0 ≤55 MHz
电流消耗		1.5 mA Max.		10 MHz≤ f0 ≤26 MHz
	ICC	1.8 mA Max.		26 MHz< f0 ≤40 MHz
		2.0 mA Max.		40 MHz< f0 ≤50 MHz
		2.1 mA Max.		50 MHz< f0 ≤55 MHz
输入电阻	Rin	500 kW Min.	-	VC - GND (DC)
频率控制范围	f_cont	±8.0 ´ 10-6 to ±12.0 ´ 10-6	-	B: VC =0.9 V ±0.6 V (VCC =1.8 V) or C: VC =1.4 V ±1.0 V (VCC =2.8 V) or D: VC =1.5 V ±1.0 V (VCC =3.0 V) or E: VC =1.65 V ±1.0 V (VCC =3.3 V)
频率变化极性	-	Positive polarity	-
对称性	SYM	45 % to 55 %		GND level (DC cut)
输出电压	VPP	0.8 V Min.		Peak to Peak
启动时间	t_str	1.0 ms Max.		T=0 at 90% Vcc
输出负载条件	Load_R	10 kW		DC cut capacitor = 0.01 mF
输出负载条件	Load_C	10 pF		DC cut capacitor = 0.01 mF

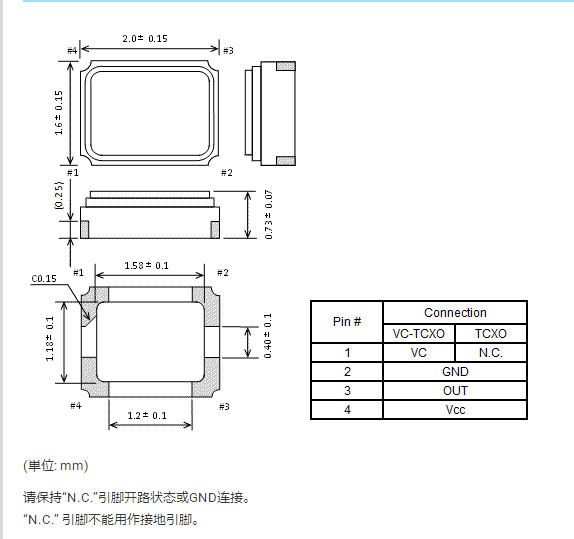

X1G0054410201/TG2016SMN/2016/TCXO/±1.5ppm/SMD/16.368000MHz，尺寸图

X1G0054410201/TG2016SMN/2016/TCXO/±1.5ppm/SMD/16.368000MHz

编码	石英晶振厂家	频率	尺寸	输出	电压
X1G0054410012	TG2016SMN	40.000000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	2.800 to 3.630 V
X1G0054410031	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	2.660 to 2.940 V
X1G0054410033	TG2016SMN	39.000000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	3.135 to 3.465 V
X1G0054410047	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	3.135 to 3.465 V
X1G0054410065	TG2016SMN	38.400000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410201	TG2016SMN	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410202	TG2016SMN	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410203	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410204	TG2016SMN	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410205	TG2016SMN	32.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410206	TG2016SMN	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410207	TG2016SMN	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410208	TG2016SMN	16.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410211	TG2016SMN	20.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410212	TG2016SMN	24.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410213	TG2016SMN	25.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410214	TG2016SMN	27.000000 MHz	2.00 x 1.60 x 0.73 mm	TCXO晶振	1.700 to 1.900 V
X1G0054410215	TG2016SMN	30.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410216	TG2016SMN	48.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410220	TG2016SMN	52.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410221	TG2016SMN	27.600000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410223	TG2016SMN	16.384000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054410301	TG2016SMN	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410302	TG2016SMN	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410303	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410304	TG2016SMN	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410305	TG2016SMN	32.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410306	TG2016SMN	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410307	TG2016SMN	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410308	TG2016SMN	16.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410311	TG2016SMN	20.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410312	TG2016SMN	24.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410313	TG2016SMN	25.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410314	TG2016SMN	27.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410315	TG2016SMN	30.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410316	TG2016SMN	48.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410320	TG2016SMN	52.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410321	TG2016SMN	27.600000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054410323	TG2016SMN	16.384000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	2.260 to 3.465 V
