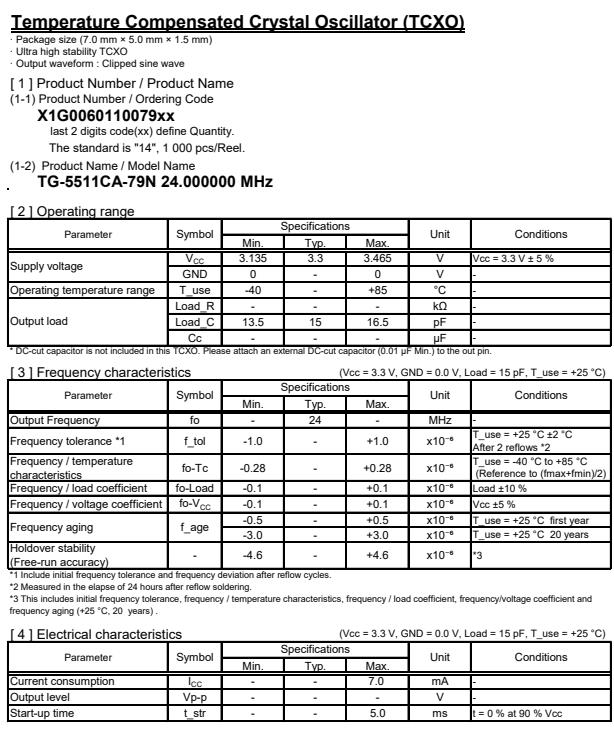

温补晶振编码X1G006011007914是苹果手机智能音响的臻选，爱普生公司经过多年的积累，拥有独特的创新能力，以及快速交付的能力，通过自身的成长，开发了许多新兴产品，因其对于晶振产品有着独特心得，开发这款TG-5511CA晶振，编码X1G006011007914，频率24.000000兆赫，输出剪波正弦波，电源电压3.13 ~ 3.46 V，电源电压(一般)3.300 V，尺寸(LxWxH)7.0 x 5.0 x 1.5 mm，操作温度-40至+85°C，频率公差+/- 1.0 ppm，这是一款高精度，低抖动的温补晶振，十分适合用于苹果手机智能音响，医疗设备，无线模块等领域。

在2010年全球晶振厂家排名中,占据首位.爱普生仅此一项水晶振动子行业就能足矣让电子世界的人都敬佩不已.爱普生晶体以32.768KHZ晶振称霸晶振行业,主要消费在手机,PCB,等电子产品.同时爱普生以提供原子钟的精准振荡器知名业界.

编码	型号	频率	尺寸	电源电压	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G006011004214	TG-5511CA	19.200000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004314	TG-5511CA	20.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004414	TG-5511CA	24.576000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004514	TG-5511CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004614	TG-5511CA	38.880000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004714	TG-5511CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004814	TG-5511CA	50.000000 MHz	7050石英晶振	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011007614	TG-5511CA	30.720000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011007714	TG-5511CA	24.576000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011007814	TG-5511CA	49.152000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011007914	TG-5511CA	24.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C	+/-0.28 ppm
X1G006011008014	TG-5511CA	48.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C	+/-0.28 ppm
X1G006011008114	TG-5511CA	19.200000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011008214	TG-5511CA	38.400000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011008314	TG-5511CA	27.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C	+/-0.28 ppm
X1G006011009014	TG-5511CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011009114	TG-5511CA	19.440000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
