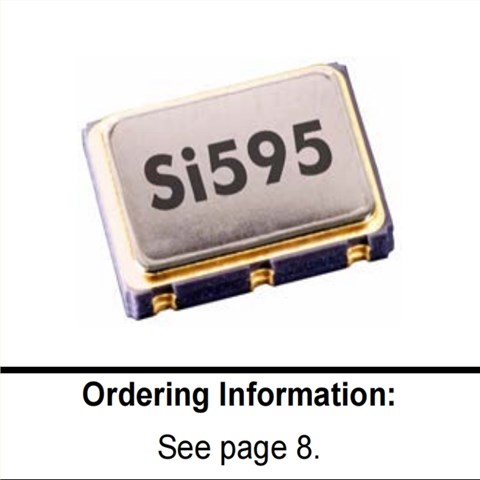

Skyworks压控晶振-595CD40M0000DGR-Si595有源振荡器-6G无线晶振

Skyworks压控晶振-595CD40M0000DGR-Si595有源振荡器-6G无线晶振Skyworks压控晶振-595CD40M0000DGR-Si595有源振荡器-6G无线晶振

产品简介

Skyworks压控晶振-595CD40M0000DGR-Si595有源振荡器-6G无线晶振，尺寸7.0*5.0mm,频率40MHZ，输出逻辑CMOS，有源贴片晶振，CMOS输出有源晶振，VCXO压控晶振，CMOS贴片型振荡器，压控晶体振荡器，OSC贴片振荡器，SMD振荡器，低电压有源晶振，低损耗有源晶振，低相位有源振荡器，低功耗有源晶振，低相噪有源晶振，高性能有源晶振，高质量有源晶振，网络设备有源晶振，娱乐设备有源晶振，时钟恢复有源晶振，光纤接入压控晶振，具有低抖动低电压低功耗的特点.

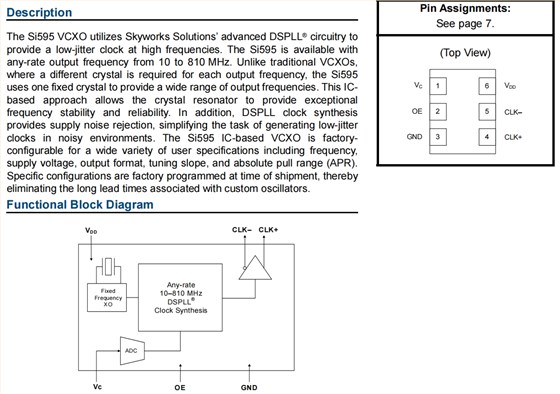

Si595 VCXO利用Skyworks Solutions的先进DSPLL®电路在高频下提供低抖动时钟。Si595贴片晶体振荡器具有从10到810MHz的任何速率输出频率。与传统的VCXO不同，其中每个输出频率需要不同的晶体，Si595使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体谐振器提供卓越的性能频率稳定性和可靠性。此外，DSPLL时钟合成提供电源噪声抑制，简化了生成低抖动的任务噪音环境中的时钟。Skyworks压控晶振-595CD40M0000DGR-Si595有源振荡器-6G无线晶振.




产品详情

Skyworks压控晶振-595CD40M0000DGR-Si595有源振荡器-6G无线晶振，尺寸7.0*5.0mm,频率40MHZ，输出逻辑CMOS，有源贴片晶振，CMOS输出有源晶振，VCXO压控晶振，CMOS贴片型振荡器，压控晶体振荡器，OSC贴片振荡器，SMD振荡器，低电压有源晶振，低损耗有源晶振，低相位有源振荡器，低功耗有源晶振，低相噪有源晶振，高性能有源晶振，高质量有源晶振，网络设备有源晶振，娱乐设备有源晶振，时钟恢复有源晶振，光纤接入压控晶振，具有低抖动低电压低功耗的特点.

Si595 VCXO利用Skyworks Solutions的先进DSPLL®电路在高频下提供低抖动时钟。Si595贴片晶体振荡器具有从10到810MHz的任何速率输出频率。与传统的VCXO不同，其中每个输出频率需要不同的晶体，Si595使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体谐振器提供卓越的性能频率稳定性和可靠性。此外，DSPLL时钟合成提供电源噪声抑制，简化了生成低抖动的任务噪音环境中的时钟。Skyworks压控晶振-595CD40M0000DGR-Si595有源振荡器-6G无线晶振.

耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

Skyworks压控晶振-595CD40M0000DGR-Si595有源振荡器-6G无线晶振参数表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		110
100
90
80 		125
110
100
90 		mA
Tristate mode — 60 75
Output Enable (OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 810 MHz
CMOS 10 — 160
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Total Stability Note 3, second option code “D” ±20 ppm
Note 3, second option code “C” ±30 ppm
Note 4, second option code “B” — — ±50 ppm
Note 4, second option code “A” — — ±100 ppm
Temperature Stability second option code “D” — — ±7 ppm
second option code “C” ±20 ppm
second option code “B” ±25 ppm
second option code “A” — — ±50 ppm
Powerup Time5 tOSC — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level VDD– 1.42 VDD– 1.25 V
VOD swing (diff) 1.1 1.9 VPP
VSE swing (single-ended) 0.55 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — VDD– 1.30 — V
1.8 V option mid-level — VDD– 0.36 —
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50
CMOS Output Option3 VOH 0.8 x VDD — VDD V
VOL — — 0.4
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 2 — ns
Symmetry (duty cycle) SYM LVPECL:VDD– 1.3 V (diff)
LVDS:1.25 V (diff)
CMOS:VDD/2 		45 — 55 %
耐振低频进口谐振器,大型7050mm贴片晶体,CX5晶振

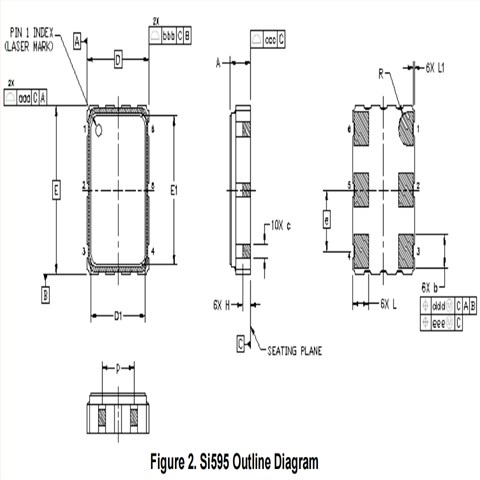

Skyworks压控晶振-595CD40M0000DGR-Si595有源振荡器-6G无线晶振尺寸图

Si595 7.050

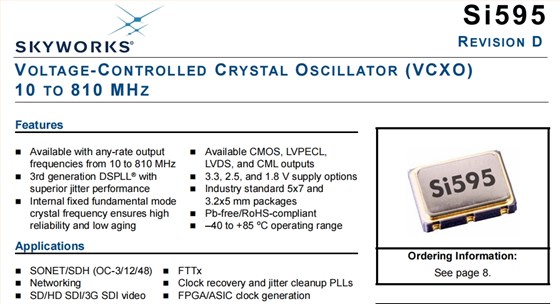

SMD振荡器产品特性：

可用于任何速率输出

频率从10到810兆赫

第三代DSPLL®卓越的抖动性能

内部固定基本模式

晶体频率确保高

可靠性和低老化

可用的CMOS、LVPECL、LVDS和CML输出

3.3、2.5和1.8 V电源选项

行业标准5x7和3.2x5 mm包装

无铅/符合RoHS

–40至+85ºC工作范围


Si595 1Si595 2

更多相关Skyworks有源晶振型号

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply
595CA000149DGR Skyworks有源晶振 XTAL OSC VCXO 149.0000KHZ CMOS Si595 149 kHz CMOS 3.3V
595CA12M2880DGR Skyworks有源晶振 XTAL OSC VCXO 12.2880MHZ CMOS Si595 12.288 MHz CMOS 3.3V
595CA28M0000DGR Skyworks有源晶振 XTAL OSC VCXO 28.0000MHZ CMOS Si595 28 MHz CMOS 3.3V
595CA65M0000DGR Skyworks有源晶振 XTAL OSC VCXO 65.0000MHZ CMOS Si595 65 MHz CMOS 3.3V
595CA74M2500DGR Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ CMOS Si595 74.25 MHz CMOS 3.3V
595CB10M0000DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CB10M2400DGR Skyworks有源晶振 XTAL OSC VCXO 10.2400MHZ CMOS Si595 10.24 MHz CMOS 3.3V
595CB12M2880DGR Skyworks有源晶振 XTAL OSC VCXO 12.2880MHZ CMOS Si595 12.288 MHz CMOS 3.3V
595CB12M2890DGR Skyworks有源晶振 XTAL OSC VCXO 12.2890MHZ CMOS Si595 12.289 MHz CMOS 3.3V
595CB28M0000DGR Skyworks有源晶振 XTAL OSC VCXO 28.0000MHZ CMOS Si595 28 MHz CMOS 3.3V
595CB70M6560DGR Skyworks有源晶振 XTAL OSC VCXO 70.6560MHZ CMOS Si595 70.656 MHz CMOS 3.3V
595CB95M5730DGR Skyworks有源晶振 XTAL OSC VCXO 95.5730MHZ CMOS Si595 95.573 MHz CMOS 3.3V
595CD000299DGR Skyworks有源晶振 XTAL OSC VCXO 299.0000KHZ CMOS Si595 299 kHz CMOS 3.3V
595CD122M880DGR Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ CMOS Si595 122.88 MHz CMOS 3.3V
595CD34M3680DGR Skyworks有源晶振 XTAL OSC VCXO 34.3680MHZ CMOS Si595 34.368 MHz CMOS 3.3V
595CD35M3280DGR Skyworks有源晶振 XTAL OSC VCXO 35.3280MHZ CMOS Si595 35.328 MHz CMOS 3.3V
595CD40M0000DGR Skyworks有源晶振 XTAL OSC VCXO 40.0000MHZ CMOS Si595 40 MHz CMOS 3.3V
595CD44M7360DGR Skyworks有源晶振 XTAL OSC VCXO 44.7360MHZ CMOS Si595 44.736 MHz CMOS 3.3V
595CD50M0000DGR Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si595 50 MHz CMOS 3.3V
595CC10M0000DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CC125M000DG Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ CMOS Si595 125 MHz CMOS 3.3V
595CC60M7500DG Skyworks有源晶振 XTAL OSC VCXO 60.7500MHZ CMOS Si595 60.75 MHz CMOS 3.3V
595CF10M0000DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CF24M0000DG Skyworks有源晶振 XTAL OSC VCXO 24.0000MHZ CMOS Si595 24 MHz CMOS 3.3V
595CF27M0000DG Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si595 27 MHz CMOS 3.3V
595CF60M7500DG Skyworks有源晶振 XTAL OSC VCXO 60.7500MHZ CMOS Si595 60.75 MHz CMOS 3.3V
595CG38M7853DG Skyworks有源晶振 XTAL OSC VCXO 38.7853MHZ CMOS Si595 38.7853 MHz CMOS 3.3V
595CG50M0000DG Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si595 50 MHz CMOS 3.3V
595CG61M4400DG Skyworks有源晶振 XTAL OSC VCXO 61.4400MHZ CMOS Si595 61.44 MHz CMOS 3.3V
595CG67M5000DG Skyworks有源晶振 XTAL OSC VCXO 67.5000MHZ CMOS Si595 67.5 MHz CMOS 3.3V
595PG27M0000DG Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si595 27 MHz CMOS 3.3V
595VF49M1520DG Skyworks有源晶振 XTAL OSC VCXO 49.1520MHZ CMOS Si595 49.152 MHz CMOS 1.8V
595CG10M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 10 MHz CMOS 3.3V
595CG93M3120DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 93.312 MHz CMOS 3.3V
595CS61M4400DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 61.44 MHz CMOS 3.3V
595JM49M1520DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 49.152 MHz CMOS 1.8V
595CM20M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 20 MHz CMOS 3.3V
595CS54M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 54 MHz CMOS 3.3V
595CS49M1520DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 49.152 MHz CMOS 3.3V
595CC10M0000DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CC125M000DGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ CMOS Si595 125 MHz CMOS 3.3V
595CC60M7500DGR Skyworks有源晶振 XTAL OSC VCXO 60.7500MHZ CMOS Si595 60.75 MHz CMOS 3.3V
595CF10M0000DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CF24M0000DGR Skyworks有源晶振 XTAL OSC VCXO 24.0000MHZ CMOS Si595 24 MHz CMOS 3.3V
595CF27M0000DGR Skyworks oscillator XTAL OSC VCXO 27.0000MHZ CMOS Si595 27 MHz CMOS 3.3V
595CF60M7500DGR Skyworks有源晶振 XTAL OSC VCXO 60.7500MHZ CMOS Si595 60.75 MHz CMOS 3.3V
595CG38M7853DGR Skyworks有源晶振 XTAL OSC VCXO 38.7853MHZ CMOS Si595 38.7853 MHz CMOS 3.3V
595CG50M0000DGR Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si595 50 MHz CMOS 3.3V
595CG61M4400DGR Skyworks有源晶振 XTAL OSC VCXO 61.4400MHZ CMOS Si595 61.44 MHz CMOS 3.3V
595CG67M5000DGR Skyworks有源晶振 XTAL OSC VCXO 67.5000MHZ CMOS Si595 67.5 MHz CMOS 3.3V
595PG27M0000DGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si595 27 MHz CMOS 3.3V
595VF49M1520DGR Skyworks有源晶振 XTAL OSC VCXO 49.1520MHZ CMOS Si595 49.152 MHz CMOS 1.8V
595CG93M3120DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 93.312 MHz CMOS 3.3V
595CG10M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 10 MHz CMOS 3.3V
595JM49M1520DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 49.152 MHz CMOS 1.8V
595CS54M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 54 MHz CMOS 3.3V
595CS61M4400DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 61.44 MHz CMOS 3.3V
595CS49M1520DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 49.152 MHz CMOS 3.3V
595CM20M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 20 MHz CMOS 3.3V
595CA000149DG Skyworks有源晶振 XTAL OSC VCXO 149.0000KHZ CMOS Si595 149 kHz CMOS 3.3V
595CA12M2880DG Skyworks有源晶振 XTAL OSC VCXO 12.2880MHZ CMOS Si595 12.288 MHz CMOS 3.3V
595CA28M0000DG Skyworks有源晶振 XTAL OSC VCXO 28.0000MHZ CMOS Si595 28 MHz CMOS 3.3V
595CA65M0000DG Skyworks有源晶振 XTAL OSC VCXO 65.0000MHZ CMOS Si595 65 MHz CMOS 3.3V
595CA74M2500DG Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ CMOS Si595 74.25 MHz CMOS 3.3V
595CB10M0000DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CB10M2400DG Skyworks有源晶振 XTAL OSC VCXO 10.2400MHZ CMOS Si595 10.24 MHz CMOS 3.3V
595CB12M2880DG Skyworks有源晶振 XTAL OSC VCXO 12.2880MHZ CMOS Si595 12.288 MHz CMOS 3.3V
595CB12M2890DG Skyworks有源晶振 XTAL OSC VCXO 12.2890MHZ CMOS Si595 12.289 MHz CMOS 3.3V
595CB28M0000DG Skyworks有源晶振 XTAL OSC VCXO 28.0000MHZ CMOS Si595 28 MHz CMOS 3.3V
595CB70M6560DG Skyworks有源晶振 XTAL OSC VCXO 70.6560MHZ CMOS Si595 70.656 MHz CMOS 3.3V
595CB95M5730DG Skyworks有源晶振 XTAL OSC VCXO 95.5730MHZ CMOS Si595 95.573 MHz CMOS 3.3V
595CD000299DG Skyworks有源晶振 XTAL OSC VCXO 299.0000KHZ CMOS Si595 299 kHz CMOS 3.3V
595CD122M880DG Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ CMOS Si595 122.88 MHz CMOS 3.3V
595CD34M3680DG Skyworks有源晶振 XTAL OSC VCXO 34.3680MHZ CMOS Si595 34.368 MHz CMOS 3.3V
595CD35M3280DG Skyworks有源晶振 XTAL OSC VCXO 35.3280MHZ CMOS Si595 35.328 MHz CMOS 3.3V
595CD40M0000DG Skyworks有源晶振 XTAL OSC VCXO 40.0000MHZ CMOS Si595 40 MHz CMOS 3.3V
595CD44M7360DG Skyworks有源晶振 XTAL OSC VCXO 44.7360MHZ CMOS Si595 44.736 MHz CMOS 3.3V
595CD50M0000DG Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si595 50 MHz CMOS 3.3V
595CD64M0000DG Skyworks有源晶振 XTAL OSC VCXO 64.0000MHZ CMOS Si595 64 MHz CMOS 3.3V
595CD74M2500DG Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ CMOS Si595 74.25 MHz CMOS 3.3V
595CD96M0000DG Skyworks有源晶振 XTAL OSC VCXO 96.0000MHZ CMOS Si595 96 MHz CMOS 3.3V
595CE000256DG Skyworks有源晶振 XTAL OSC VCXO 256.0000KHZ CMOS Si595 256 kHz CMOS 3.3V
595CE100M000DG Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ CMOS Si595 100 MHz CMOS 3.3V
