SMD100.3系列振荡器,SMD100.3C(E/D)-45.000MHz,7050mm,GED网络晶振特点:

HCMOS/TTL输出

3.3V电源电压

陶瓷SMD时钟振荡器封装

可用于磁带和卷轴

SMD100.3系列振荡器,SMD100.3C(E/D)-45.000MHz,7050mm,GED网络晶振 参数表

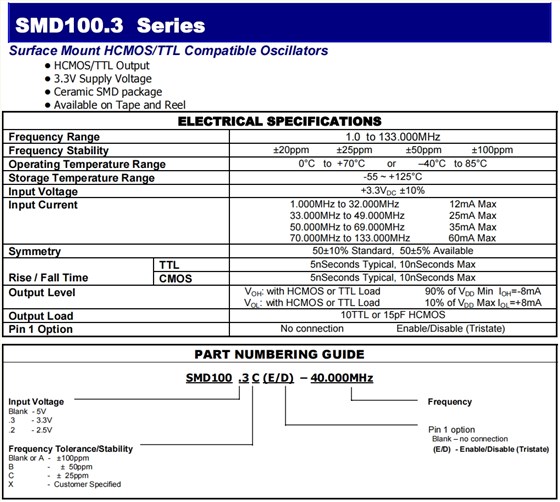

ELECTRICAL SPECIFICATIONS
Frequency Range			45.000MHz
Frequency Stability			±20ppm±25ppm±50ppm±100ppm
Operating Temperature Range			0°Cto+70°Cor–40°Cto 85°C
Storage Temperature Range			-55 ~ +125°C
Input Voltage			+3.3VDC±10%
Input Current			1.000MHz to 32.000MHz 33.000MHz to 49.000MHz 50.000MHz to 69.000MHz 70.000MHz to 133.000MHz			12mA Max 25mA Max 35mA Max 60mA Max
Symmetry			50±10% Standard,50±5% Available
Rise / Fall Time		TTL	5nSeconds Typical, 10nSeconds Max
		CMOS	5nSeconds Typical, 10nSeconds Max
Output Level			VOH: with HCMOS or TTL Load VOL: with HCMOS or TTL Load		90% of VDDMinIOH=-8mA 10% of VDDMax IOL=+8mA
Output Load			10TTL or 15pF HCMOS
Pin 1 Option			No connectionEnable/Disable (Tristate)

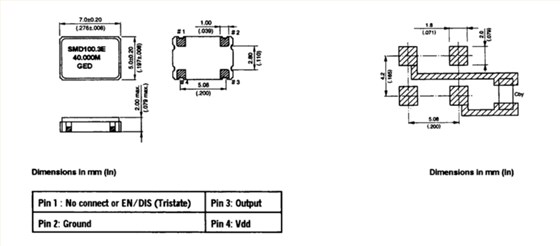

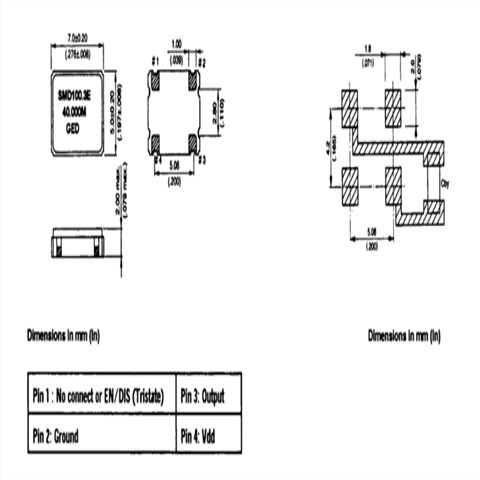

SMD100.3系列振荡器,SMD100.3C(E/D)-45.000MHz,7050mm,GED网络晶振 尺寸图
