GED以太网晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V,美国GED振荡器,有源贴片晶振,有源晶体振荡器,OSC贴片晶振,6035mm有源晶振,时钟有源晶振,32M晶体振荡器,贴片有源晶振,尺寸6.0*3.5mm,频率32MHZ,电压3.3V,输出HCMOS,低老化晶振,低电压晶振,低功耗晶振,高品质晶振,低相位晶振,测试设备晶振,智能手机晶振,数字音频晶振,无线局域网晶振,以太网晶振,视听设备晶振.
GED以太网晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V特点:
HCMOS输出晶体振荡器/TTL输出
3.3V和5.0V电源电压
陶瓷SMD封装

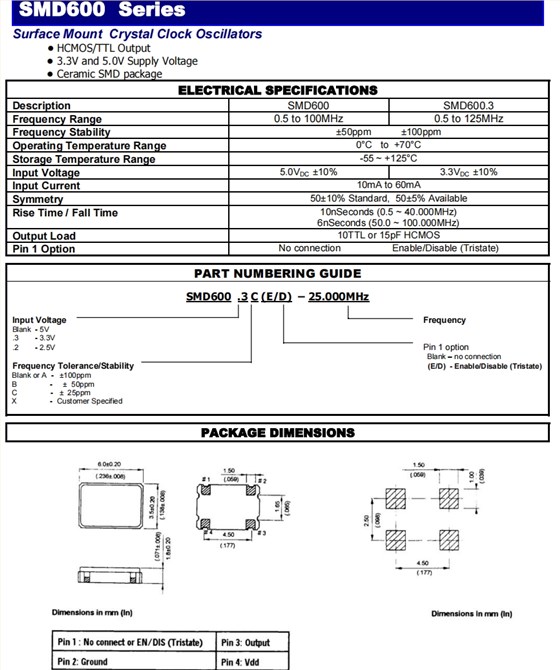

GED以太网晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V 参数表
| ELECTRICAL SPECIFICATIONS | |||||
| Description | SMD600 | SMD600.3 | |||
| Frequency Range | 0.5 to 100MHz | 32MHz | |||
| Frequency Stability | ±50ppm±100ppm | ||||
| Operating Temperature Range | 0°Cto+70°C | ||||
| Storage Temperature Range | -55 ~ +125°C | ||||
| Input Voltage | 5.0VDC±10% | 3.3VDC±10% | |||
| Input Current | 10mA to 60mA | ||||
| Symmetry | 50±10% Standard,50±5% Available | ||||
| Rise Time / Fall Time |
10nSeconds (0.5 ~ 40.000MHz) 6nSeconds (50.0 ~ 100.000MHz) |
||||
| Output Load | 10TTL or 15pF HCMOS | ||||
| Pin 1 Option | No connectionEnable/Disable (Tristate) | ||||

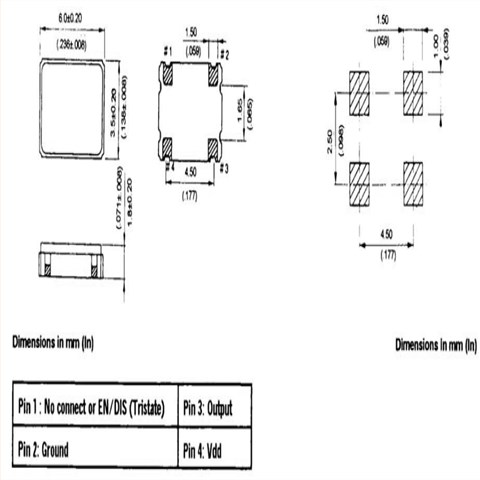

GED以太网晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V 尺寸图
