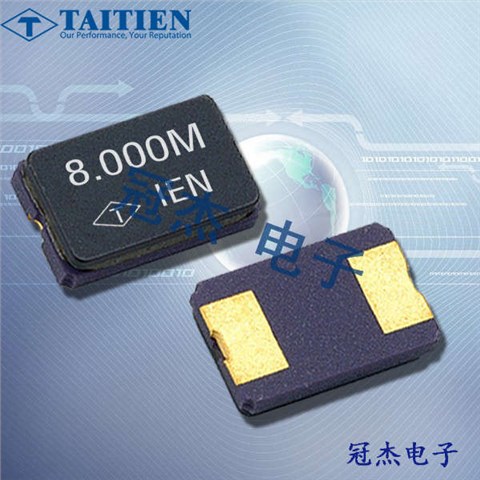

XSCEECNANF-8.000000,XS系列晶振,5032谐振器

产品简介

XSCEECNANF-8.000000,XS系列晶振,5032谐振器，物料编码为XSCEECNANF-8.000000，频率为8MHz，精度为±30ppm，负载电容为10pF，工作温度为-20℃~70℃，5032谐振器，石英晶体谐振器，石英晶振，晶振厂家，贴片晶振，石英晶振，四脚晶振，无源晶振，台产晶振，泰艺电子，广泛应用在肌电图，脑电图，心电图，激光机，智能听诊器等产品。

产品详情

1XQJX

XSCEECNANF-8.000000,XS系列晶振,5032谐振器，物料编码为XSCEECNANF-8.000000，频率为8MHz，精度为±30ppm，负载电容为10pF，工作温度为-20℃~70℃，5032谐振器，石英晶体谐振器，石英晶振，晶振厂家，贴片晶振，石英晶振，四脚晶振，无源晶振，台产晶振，泰艺电子，广泛应用在肌电图，脑电图，心电图，激光机，智能听诊器等产品。 2GGCS

TY-2

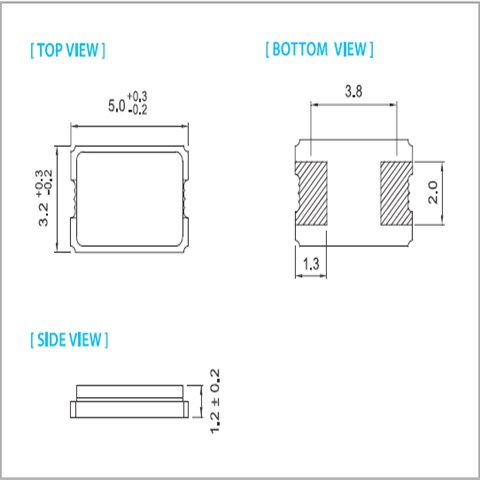

XSCEECNANF-8.000000,XS系列晶振,5032谐振器

参数表
型号	XS
频率	8MHZ
精度	±30ppm
负载电容	10pF
工作温度	-20℃-70℃
尺寸	5.0*3.2mm

3CC

TY-3

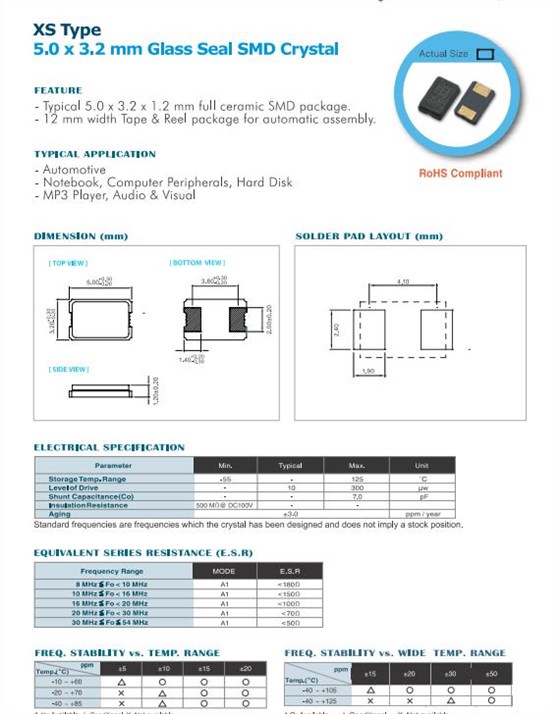

XSCEECNANF-8.000000,XS系列晶振,5032谐振器

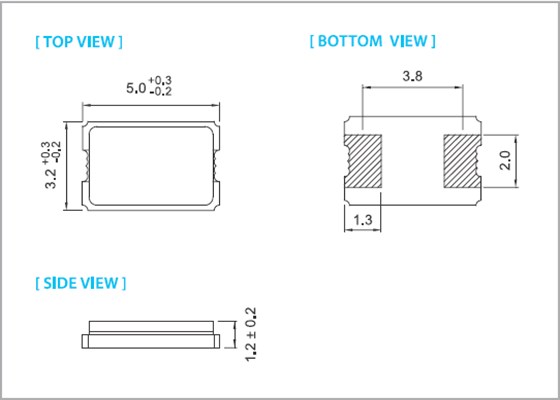

XS 5032

原厂编码	参数描述	型号	频率	频率稳定度	负载电容	工作温度
XSCEECNANF-8.000000	CRYSTAL 8.0000MHZ 10PF SMD	XS	台产晶振	±30ppm	10pF	-20°C ~ 70°C
XSCEGCNANF-10.000000	CRYSTAL 10.0000MHZ 10PF SMD	XS	10 MHz	±50ppm	10pF	-20°C ~ 70°C
XSCGGCNANF-24.576000	CRYSTAL 24.5760MHZ 10PF SMD	XS	24.576 MHz	±50ppm	10pF	-20°C ~ 70°C
XSDEECNANF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XS	25 MHz	±30ppm	12pF	-20°C ~ 70°C
XSDEELNANF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XS	12 MHz	±30ppm	12pF	-40°C ~ 85°C
XSDEELNANF-13.560000	CRYSTAL 13.5600MHZ 12PF SMD	XS	13.56 MHz	±30ppm	12pF	-40°C ~ 85°C
XSDEELNANF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XS	25 MHz	±30ppm	12pF	-40°C ~ 85°C
XSDEGCNANF-16.000000	CRYSTAL 16.0000MHZ 12PF SMD	XS	16 MHz	±50ppm	12pF	-20°C ~ 70°C
XSFGGLNANF-20.000000	CRYSTAL 20.0000MHZ 16PF SMD	XS	20 MHz	±50ppm	16pF	-40°C ~ 85°C
XSGEECNANF-16.000000	CRYSTAL 16.0000MHZ 18PF SMD	XS	16 MHz	±30ppm	18pF	-20°C ~ 70°C
XSGEELNANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XS	25 MHz	±30ppm	18pF	-40°C ~ 85°C
XSGEGLNANF-13.000000	CRYSTAL 13.0000MHZ 18PF SMD	XS	13 MHz	±50ppm	18pF	-40°C ~ 85°C
XSHEECNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XS	25 MHz	±30ppm	20pF	-20°C ~ 70°C
XSHEELNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XS	25 MHz	±30ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-11.059200	CRYSTAL 11.0592MHZ 20PF SMD	XS	11.0592 MHz	±50ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-12.000000	CRYSTAL 12.0000MHZ 20PF SMD	XS	12 MHz	±50ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-16.000000	CRYSTAL 16.0000MHZ 20PF SMD	XS	16 MHz	±50ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-24.000000	CRYSTAL 24.0000MHZ 20PF SMD	XS	24 MHz	±50ppm	20pF	-40°C ~ 85°C
XSDEELAANF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XS	12 MHz	±30ppm	12pF	-40°C ~ 85°C
XSDEELAANF-13.560000	CRYSTAL 13.5600MHZ 12PF SMD	XS	13.56 MHz	±30ppm	12pF	-40°C ~ 85°C
XSGEECAANF-16.000000	CRYSTAL 16.0000MHZ 18PF SMD	XS	16 MHz	±30ppm	18pF	-20°C ~ 70°C
XSGEELAANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XS	25 MHz	±30ppm	18pF	-40°C ~ 85°C
XSHEECAANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XS	25 MHz	±30ppm	20pF	-20°C ~ 70°C
XSHEELAANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XS	25 MHz	±30ppm	20pF	-40°C ~ 85°C
XSGCCLNANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XS	25 MHz	±20ppm	18pF	-40°C ~ 85°C
XSGCECNANF-8.000000	CRYSTAL 8.0000MHZ 18PF SMD	XS	8 MHz	±30ppm	18pF	-20°C ~ 70°C
XSGCELNANF-8.000000	CRYSTAL 8.0000MHZ 18PF SMD	XS	8 MHz	±30ppm	18pF	-40°C ~ 85°C
XSHCCLNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XS	25 MHz	±20ppm	20pF	-20°C ~ 70°C
