32.768KHZ收音机晶振,TST音叉晶振,TZ2065A谐振器,2012mm超小型晶振

产品简介

32.768KHZ收音机晶振,TST音叉晶振,TZ2065A谐振器,2012mm超小型晶振,台湾嘉硕晶振,嘉硕无源晶振,32.768K贴片晶振,音叉谐振器,SMD晶体,无源谐振器,2012mm晶体,两脚贴片晶振,尺寸2.0*1.2mm,频率32.768KHZ,低功耗晶振,低耗能晶振,高可靠晶振,高品质晶振,数字显示晶振,万年历晶振,智能体温计晶振,收音机晶振,数字设备晶振.

产品详情

32.768KHZ收音机晶振,TST音叉晶振,TZ2065A谐振器,2012mm超小型晶振特点:

陶瓷接缝封装

卓越的可靠性性能

超微型谐振器封装

可用于表面安装技术和红外回流工艺

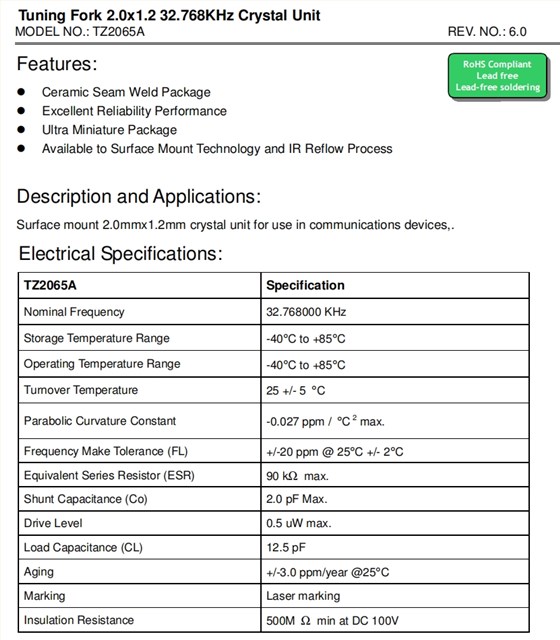

32.768KHZ收音机晶振,TST音叉晶振,TZ2065A谐振器,2012mm超小型晶振 参数表

TZ2065A	Specification
NominalFrequency	32.768000KHz
Storage TemperatureRange	-40°Cto+85°C
Operating TemperatureRange	-40°Cto+85°C
Turnover Temperature	25+/-5°C
Parabolic CurvatureConstant	-0.027ppm/°C2max.
FrequencyMakeTolerance(FL)	+/-20 ppm@25°C+/-3°C
EquivalentSeriesResistor(ESR)	90 Ωmax.
Nominal DriveLevel	10uW
ShuntCapacitance(Co)	2.0 pFmax
DriveLevel	0.5uWmax.
LoadCapacitance(CL)	12.5pF
Aging	+/-3.0ppm/year@25°C

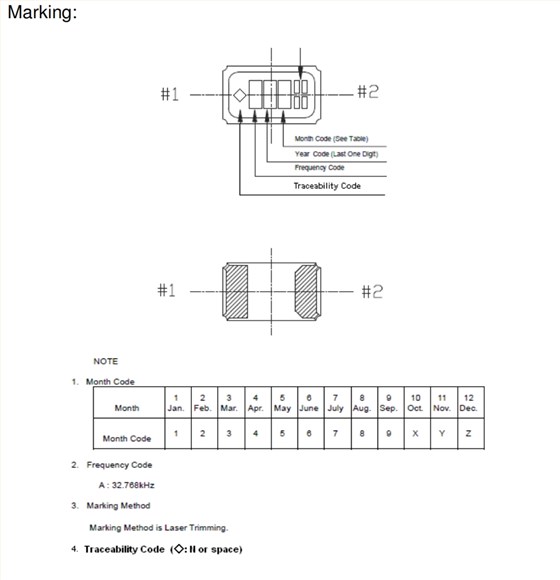

Marking	Lasermarking
InsulationResistance	500MΩmin atDC100V
