NFX-48.000-A-A-A-A-20,6035mm,NFX系列晶振,耐尔贴片晶体特点:

满足NEL的要求产品可靠性

用户指定的公差可获得的

无引线陶瓷谐振器封装,适用于回流焊

宽频率范围8.0MHz至80.0MHz

自动安装，抗冲击性：跌落试验

在2mm不锈钢上3次75厘米高的板接缝密封

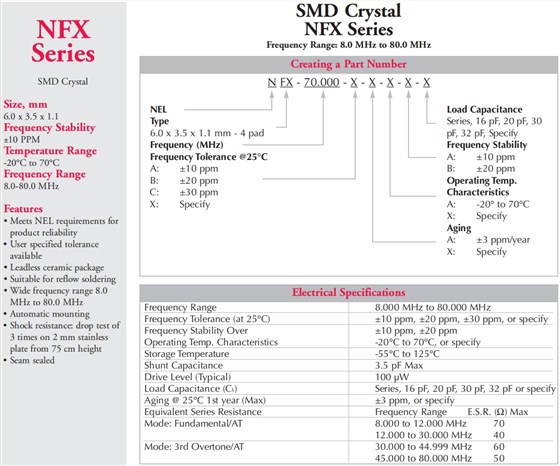

NFX-48.000-A-A-A-A-20,6035mm,NFX系列晶振,耐尔贴片晶体 参数表

Electrical Specifications
Frequency Range					48.000 MHz
Frequency Tolerance (at 25°C)					±10 ppm, ±20 ppm, ±30 ppm, or specify
Frequency Stability Over Operating Temp. Characteristics					±10 ppm, ±20 ppm -20°C to 70°C, or specify
Storage Temperature					-55°C to 125°C
Shunt Capacitance					3.5 pF Max
Drive Level (Typical)					100 µW
Load Capacitance (CL)					Series, 16 pF, 20 pF, 30 pF, 32 pF or specify
Aging @ 25°C 1st year (Max)					±3 ppm, or specify
Equivalent Series Resistance					Frequency RangeE.S.R. (Ω) Max
Mode: Fundamental/AT					8.000 to 12.000 MHz70 12.000 to 30.000 MHz40
Mode: 3rd Overtone/AT					30.000 to 44.999 MHz60 45.000 to 80.000 MHz50

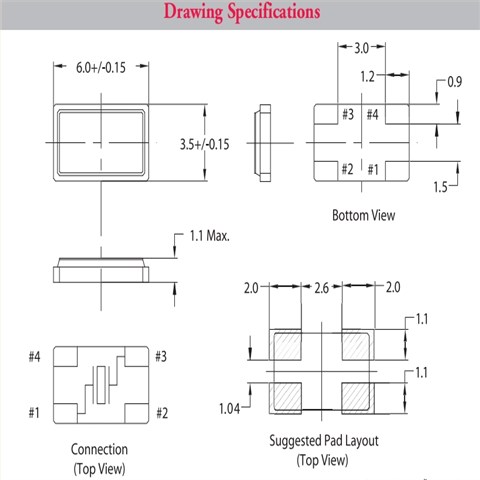

NFX-48.000-A-A-A-A-20,6035mm,NFX系列晶振,耐尔贴片晶体 尺寸图
