QVS轻薄型晶振,3215mm,QV3X-7XCF12.5-32.768KHz,QV3X系列晶体,欧美进口晶振,音叉谐振器,SMD晶体,3215mm水晶振动子,轻薄型晶体,音叉晶振32.768K,无源贴片晶振,无源晶体,尺寸3.2*1.5mm,频率32.768KHZ,负载12.5pF,低耗能晶振,低损耗晶振,高精度晶振,智能手表晶振,收音机晶振,移动电话晶振,智能电表晶振.
QVS轻薄型晶振,3215mm,QV3X-7XCF12.5-32.768KHz,QV3X系列晶体特点:

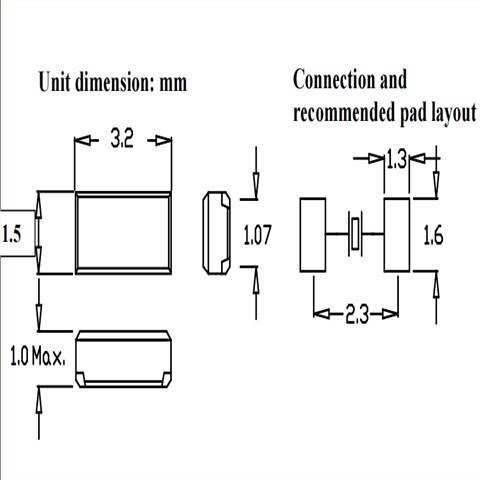

SMD晶振手表水晶，2个垫片3.2x1.5x1.0mm，X-CUT
频率32.768KHZ
低耗能高精度
QVS轻薄型晶振,3215mm,QV3X-7XCF12.5-32.768KHz,QV3X系列晶体 参数表
| Nominal Frequency | 32.768KHz | |||||||||||||||||||||||||||||
| Frequency Tolerance (25 ℃) | ±20 ppm Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||||||||||||
| Frequency Stability | - 0.035 ± 9 ppm / ℃ | |||||||||||||||||||||||||||||
| Load Capacitance (CL) | 12.5 pF Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||||||||||||
| Shunt Capacitance (Co) | 1.7pFTyp. | |||||||||||||||||||||||||||||
| Equivalent Series Resistance (E.S.R.) | 50 kΩMax. | |||||||||||||||||||||||||||||
| Isolation Resistance. | 500MΩMin. | |||||||||||||||||||||||||||||
| Drive Level | 0.1 – 1.0 µW | |||||||||||||||||||||||||||||
| Turnover Temperature | +25 ℃ | |||||||||||||||||||||||||||||
| Operating Temperature Range | -20 ℃ to +70 ℃ Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||||||||||||
| Storage Temperature Range | -55 ℃ to +125 ℃ Standard | |||||||||||||||||||||||||||||
| Holder Type | QV3X | |||||||||||||||||||||||||||||
