27MHZ,5032mm,HE-MCC-53E-27.00-16,HEC四脚无源晶振,欧美进口晶振,HEC轻薄型晶振,水晶振动子,5032mm谐振器,无源SMD晶体,27MHZ贴片晶振,石英贴片晶振,石英晶体,尺寸5.0*3.2mm,频率27MHZ,负载16pF,工作温度-40°C~+85°C,低耗能晶振,低损耗晶振,高性能晶振,移动电话晶振,网络设备晶振,便携式设备晶振,数字音频晶振.
27MHZ,5032mm,HE-MCC-53E-27.00-16,HEC四脚无源晶振特点:

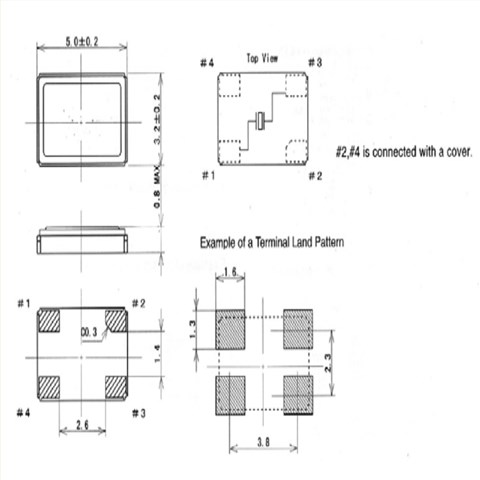

尺寸尺寸5.0*3.2mm贴片晶振类型
宽频率范围8~160MHZ
符合ROHS/无铅
27MHZ,5032mm,HE-MCC-53E-27.00-16,HEC四脚无源晶振 参数表

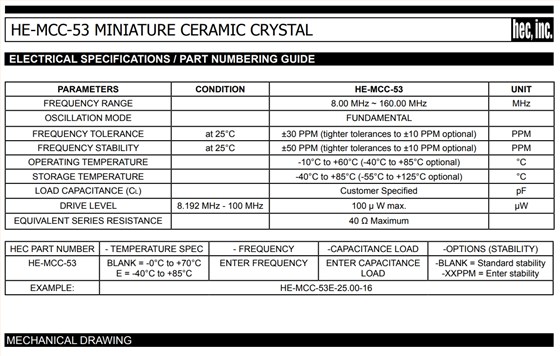

| ELECTRICAL SPECIFICATIONS / PART NUMBERING GUIDE | ||||||||
| PARAMETERS | CONDITION | HE-MCC-53 | UNIT | |||||
| FREQUENCY RANGE | 27.00 MHz | MHz | ||||||
| OSCILLATION MODE | FUNDAMENTAL | |||||||
| FREQUENCY TOLERANCE | at 25°C | ±30 PPM (tighter tolerances to ±10 PPM optional) | PPM | |||||
| FREQUENCY STABILITY | at 25°C | ±50 PPM (tighter tolerances to ±10 PPM optional) | PPM | |||||
| OPERATING TEMPERATURE | -10°C to +60°C (-40°C to +85°C optional) | °C | ||||||
| STORAGE TEMPERATURE | -40°C to +85°C (-55°C to +125°C optional) | °C | ||||||
| LOAD CAPACITANCE (CL) | Customer Specified | pF | ||||||
| DRIVE LEVEL | 8.192 MHz - 100 MHz | 100 µ W max. | µW | |||||
| EQUIVALENT SERIES RESISTANCE | 40 Ω Maximum | |||||||
