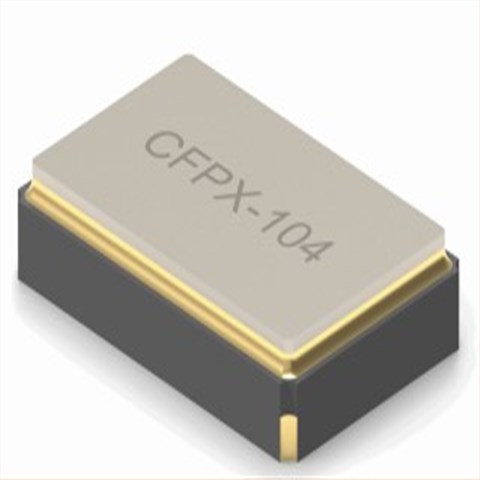

LFXTAL056583REEL,CFPX-104,10MHz,IQD轻薄型晶振,医疗设备晶振，伊克德晶振，IQD晶振，英国进口晶振，型号：CFPX-104系列晶振，产品编码为：LFXTAL056583REEL，频率为：10.000MHz ，频率稳定性：±30ppm，频率容差：±30ppm，负载电容：12pF，工作温度范围：-40℃至+85℃，小体积晶振尺寸：5.0x3.2mm封装，四脚贴片晶振，石英晶振，无源晶振，5032晶振，石英晶体谐振器，SMD晶振。具有超小型，轻薄型，高性能，高质量，耐热及耐环境等特点。应用于：通讯设备晶振，导航仪晶振，医疗设备晶振，车载电子晶振，数码电子等应用。

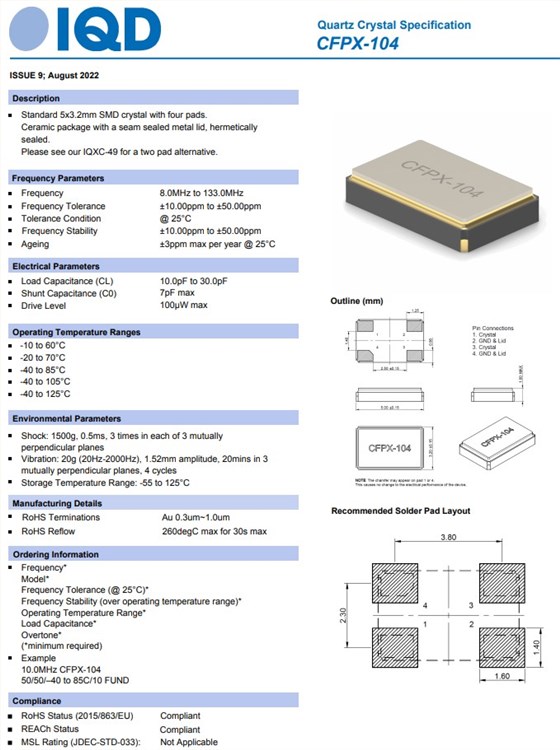

LFXTAL056583REEL,CFPX-104,10MHz,IQD轻薄型晶振,医疗设备晶振,参数表
| Frequency | 10 MHz |
| Frequency Tolerance | ±10.00ppm to ±50.00ppm |
| Tolerance Condition | @ 25°C |
| Frequency Stability | ±10.00ppm to ±50.00ppm |
| Ageing | ±3ppm max per year @ 25°C |
| Electrical Parameters | |
| Load Capacitance (CL) | 10.0pF to 30.0pF |
| Shunt Capacitance (C0) | 7pF max |
| Drive Level | 100uW max |
| Operating Temperature Ranges | -10 to 60℃ |
| -20 to 70℃ | |
| -40 to 85℃ | |
| -40 to 105℃ | |
| -40 to 125℃ |
| 产品编码 | 品牌 | 描述 | 系列 |
| LFXTAL055663REEL | IQD晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL061627REEL | IQD晶振 | CRYSTAL 8.0000MHZ 16PF SMD | CFPX-104 |
| LFXTAL055901REEL | IQD晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL059158REEL | IQD晶振 | CRYSTAL 8.0000MHZ 16PF SMD | CFPX-104 |
| LFXTAL055663BULK | IQD晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL030819REEL | IQD晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL059530REEL | IQD晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL061633REEL | IQD晶振 | CRYSTAL 13.5600MHZ 16PF SMD | CFPX-104 |
| LFXTAL055999REEL | IQD晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL033075REEL | IQD晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL059532REEL | 5032晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL056556REEL | IQD晶振 | CRYSTAL 12.5000MHZ 18PF SMD | CFPX-104 |
| LFXTAL059528REEL | IQD晶振 | CRYSTAL 16.3840MHZ 18PF SMD | CFPX-104 |
| LFXTAL050518REEL | IQD晶振 | CRYSTAL 12.0000MHZ 12PF SMD | CFPX-104 |
| LFXTAL061486REEL | IQD晶振 | CRYSTAL 8.1920MHZ 10PF SMD | CFPX-104 |
| LFXTAL036401REEL | IQD晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL069277REEL | IQD晶振 | CRYSTAL 8.0000MHZ 20PF SMD | CFPX-104 |
| LFXTAL059531REEL | IQD晶振 | CRYSTAL 24.5760MHZ 18PF SMD | CFPX-104 |
| LFXTAL033645REEL | IQD晶振 | CRYSTAL 40.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL056583REEL | IQD晶振 | CRYSTAL 10.0000MHZ 12PF SMD | CFPX-104 |
| LFXTAL061642REEL | IQD晶振 | CRYSTAL 25.0000MHZ 16PF SMD | CFPX-104 |
| LFXTAL032817REEL | IQD晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL072402REEL | IQD晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL059523REEL | IQD晶振 | CRYSTAL 12.2880MHZ 18PF SMD | CFPX-104 |
| LFXTAL033328BULK | IQD晶振 | CRYSTAL 14.7456MHZ 18PF SMD | CFPX-104 |
| LFXTAL033075BULK | IQD晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL059532BULK | IQD晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL032878BULK | IQD晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL059522BULK | IQD晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL030819BULK | IQD晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL059530BULK | IQD晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CFPX-104 |
| LFXTAL059522REEL | IQD晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CFPX-104 |
