XXGEGLNANF-25.000000,XX系列晶振,SMD晶振

产品简介

XXGEGLNANF-25.000000,XX系列晶振,SMD晶振，物料编码为XXGEGLNANF-25.000000，型号为XX系列晶振，频率为25MHz，精度为±50ppm，负载电容为18pF，工作温度范围为-40℃~85℃，尺寸为3.2*2.5mm，无源晶振，石英晶振，石英晶体谐振器，贴片晶振，四脚晶振，SMD晶振，3225晶振，3225谐振器，晶振厂家，台产晶振，泰艺晶振，轻小薄，高性能等特点，应用在汽车部分零件设备和工业机器设备中。

产品详情

1XQJX

XXGEGLNANF-25.000000,XX系列晶振,SMD晶振，物料编码为XXGEGLNANF-25.000000，型号为XX系列晶振，频率为25MHz，精度为±50ppm，负载电容为18pF，工作温度范围为-40℃~85℃，尺寸为3.2*2.5mm，无源晶振，石英晶振，石英晶体谐振器，贴片晶振，四脚晶振，SMD晶振，3225晶振，3225谐振器，晶振厂家，台产晶振，泰艺晶振，轻小薄，高性能等特点，应用在汽车部分零件设备和工业机器设备中。

2GGCS

TY-2

XXGEGLNANF-25.000000,XX系列晶振,SMD晶振

参数表
型号	XX
频率	25MHZ
精度	±50ppm
负载电容	18pF
工作温度	-40℃-85℃
尺寸	3.2*2.5mm

3CC

TY-3

XXGEGLNANF-25.000000,XX系列晶振,SMD晶振

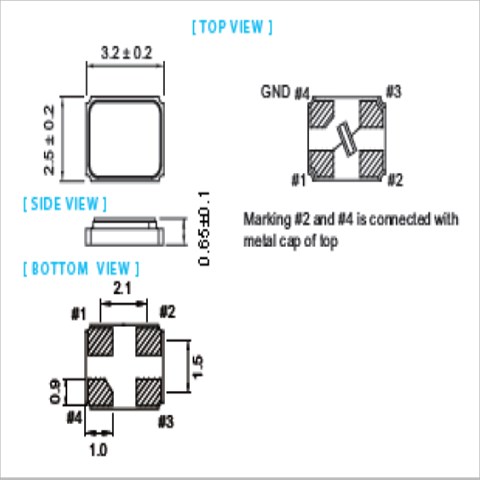

XX 3225尺寸图

原厂编码	参数描述	型号	无源晶振	频率稳定度	负载电容	工作温度
XXGEGLNANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	25 MHz	±50ppm	18pF	-40°C ~ 85°C
XXBBBCNANF-16.000000	CRYSTAL 16.0000MHZ 9PF SMD	XX	16 MHz	±10ppm	9pF	-20°C ~ 70°C
XXCCCLNANF-49.152000	CRYSTAL 49.1520MHZ 10PF SMD	XX	49.152 MHz	±20ppm	10pF	-40°C ~ 85°C
XXCBPLNANF-25.000000	CRYSTAL 25.0000MHZ 10PF SMD	XX	25 MHz	±15ppm	10pF	-40°C ~ 85°C
XXHCCLNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XX	25 MHz	±20ppm	20pF	-40°C ~ 85°C
XXGGGINANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	25 MHz	±50ppm	18pF	-10°C ~ 60°C
XXEBCLNANF-40.000000	CRYSTAL 40.0000MHZ 15PF SMD	XX	40 MHz	±20ppm	15pF	-40°C ~ 85°C
XXDCCCNANF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XX	12 MHz	±20ppm	12pF	-20°C ~ 70°C
XXGPPLNANF-20.000000	CRYSTAL 20.0000MHZ 18PF SMD	XX	20 MHz	±15ppm	18pF	-40°C ~ 85°C
XXDBPLNANF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XX	25 MHz	±15ppm	12pF	-40°C ~ 85°C
XXBBPLNANF-32.000000	CRYSTAL 32.0000MHZ 9PF SMD	XX	32 MHz	±15ppm	9pF	-40°C ~ 85°C
XXDPCLNAOF-16.000000	CRYSTAL 16.0000MHZ 12PF SMD	XX	16 MHz	±15ppm	12pF	-40°C ~ 85°C
XXDBPLNAOF-24.000000	CRYSTAL 24.0000MHZ 12PF SMD	XX	24 MHz	±15ppm	12pF	-40°C ~ 85°C
XXBBPLNAOF-24.000000	CRYSTAL 24.0000MHZ 9PF SMD	XX	24 MHz	±15ppm	9pF	-40°C ~ 85°C
XXCBPLNAOF-24.000000	CRYSTAL 24.0000MHZ 10PF SMD	XX	24 MHz	±15ppm	10pF	-40°C ~ 85°C
XXCBPLNANF-48.000000	CRYSTAL 48.0000MHZ 10PF SMD	XX	48 MHz	±15ppm	10pF	-40°C ~ 85°C
XXDBPLNAOF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	XX	25 MHz	±15ppm	12pF	-40°C ~ 85°C
XXACCLNANF-48.000000	CRYSTAL 48.0000MHZ 8PF SMD	XX	48 MHz	±20ppm	8pF	-40°C ~ 85°C
XXDBPLNAOF-38.400000	CRYSTAL 38.4000MHZ 12PF SMD	XX	38.4 MHz	±15ppm	12pF	-40°C ~ 85°C
XXGBPLNANF-27.000000	CRYSTAL 27.0000MHZ 18PF SMD	XX	27 MHz	±15ppm	18pF	-40°C ~ 85°C
XXDBPLNANF-40.000000	CRYSTAL 40.0000MHZ 12PF SMD	XX	40 MHz	±15ppm	12pF	-40°C ~ 85°C
XXGBPLNAOF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XX	25 MHz	±15ppm	18pF	-40°C ~ 85°C
XXDBCLNAOF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XX	12 MHz	±15ppm	12pF	-40°C ~ 85°C
XXCBPLNANF-50.000000	CRYSTAL 50.0000MHZ 10PF SMD	XX	50 MHz	±15ppm	10pF	-40°C ~ 85°C
XXHEGCNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XX	25 MHz	±50ppm	20pF	-20°C ~ 70°C
XXHCECNANF-26.690000	CRYSTAL 26.6900MHZ 20PF SMD	XX	26.69 MHz	±30ppm	20pF	-20°C ~ 70°C
XXCGGINANF-18.432000	CRYSTAL 18.4320MHZ 10PF SMD	XX	18.432 MHz	±50ppm	10pF	-10°C ~ 60°C
