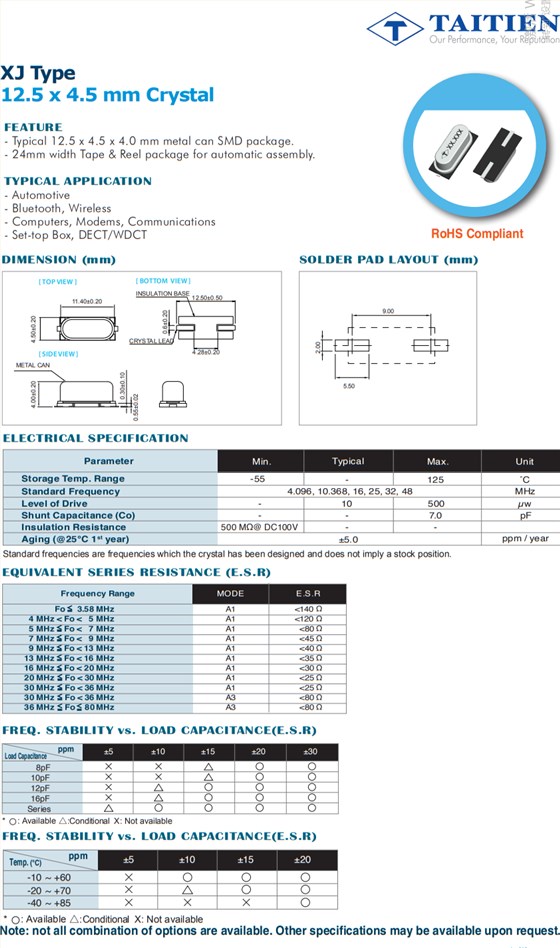

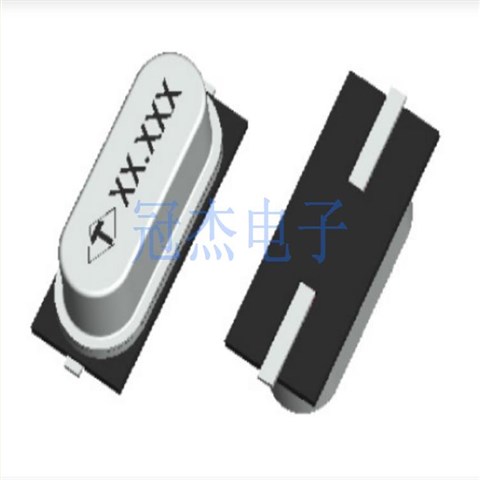

XJCBBIAANF-10.368000,泰艺晶体谐振器,无源晶振

产品简介

XJCBBIAANF-10.368000,泰艺晶体谐振器,无源晶振，物料编码为XJCBBIAANF-10.368000，频率为10.368MHz，精度为±10ppm，负载电容为10PF，工作温度为-10℃~60℃，尺寸为11.4*4.5mm，石英晶振，石英晶体谐振器，SMD晶振，无源晶振，台产晶振，晶振厂家，泰艺晶振，广泛应用在智能温度计,智能体重秤，CT，磁共振等产品。

产品详情

1XQJX

XJCBBIAANF-10.368000,泰艺晶体谐振器,无源晶振，物料编码为XJCBBIAANF-10.368000，频率为10.368MHz，精度为±10ppm，负载电容为10PF，工作温度为-10℃~60℃，尺寸为11.4*4.5mm，石英晶振，石英晶体谐振器，SMD晶振，无源晶振，台产晶振，晶振厂家，泰艺晶振，广泛应用在智能温度计,智能体重秤，CT，磁共振等产品。

2GGCS

TY-2

XJCBBIAANF-10.368000,泰艺晶体谐振器,无源晶振

参数表
型号	XJ
频率	10.368MHZ
精度	±10ppm
负载电容	10pF
工作温度	-10℃-60℃
尺寸	11.4*4.5mm

3CC

TY-3

XJCBBIAANF-10.368000,泰艺晶体谐振器,无源晶振

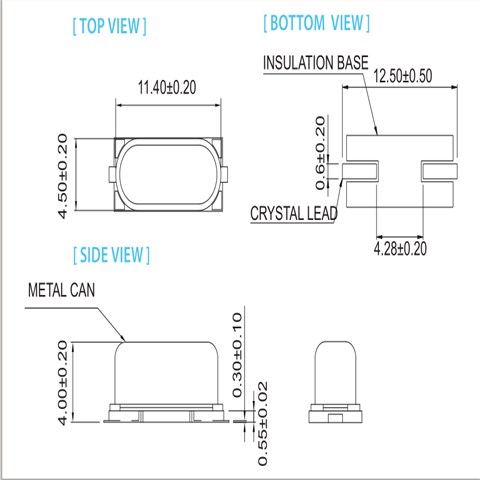

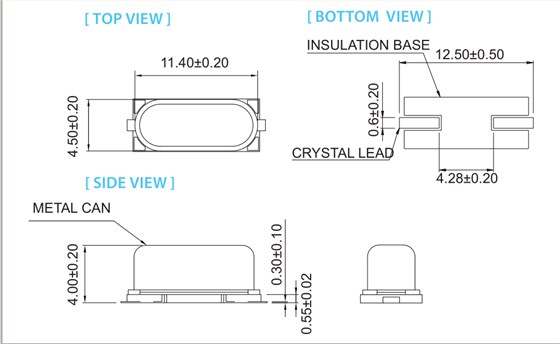

XJ尺寸图

原厂编码	参数描述	型号	频率	频率稳定度	负载电容	工作温度
XDMCZLNDDD-0.032768	CRYSTAL 32.768KHZ 12.5PF SMD	XD	32.768 kHz	石英晶体	12.5pF	-40°C ~ 85°C
XDMCZLNDMD-0.032768	CRYSTAL 32.768KHZ 12.5PF SMD	XD	32.768 kHz	-	12.5pF	-40°C ~ 85°C
XDLCZLNDMD-0.032768	CRYSTAL 32.768KHZ 6PF SMD	XD	32.768 kHz	-	6pF	-40°C ~ 85°C
XDOCZLNDMD-0.032768	CRYSTAL 32.768KHZ 7PF SMD	XD	32.768 kHz	-	7pF	-40°C ~ 85°C
XDOCZLNDDD-0.032768	CRYSTAL 32.768KHZ 7PF SMD	XD	32.768 kHz	-	7pF	-40°C ~ 85°C
XDBCZLNDMD-0.032768	CRYSTAL 32.768KHZ 9PF SMD	XD	32.768 kHz	-	9pF	-40°C ~ 85°C
X8HCAKNHNF-10.000000	CRYSTAL 10.0000MHZ 20PF THOLE	X8	10 MHz	-	20pF	-55°C ~ 125°C
X8GEBGNHNF-16.384000	CRYSTAL 16.384MHZ 18PF THOLE	X8	16.384 MHz	-	18pF	-55°C ~ 125°C
X7SPAHNHNF-10.000000	CRYSTAL 10.0000MHZ SERIES THOLE	X7	10 MHz	-	Series	-55°C ~ 125°C
X5HGGJNINF-100.000000	CRYSTAL 100.0000MHZ 20PF THOLE	X5	100 MHz	-	20pF	-55°C ~ 125°C
X6SFEININF-100.000000	CRYSTAL 100.0000MHZ SERIES THOLE	X6	100 MHz	-	Series	-55°C ~ 125°C
XJGPPCAANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	XJ	25 MHz	±15ppm	18pF	-20°C ~ 70°C
XJDECCAANF-4.194304	CRYSTAL 4.194304MHZ 12PF SMD	XJ	4.194304 MHz	±20ppm	12pF	-20°C ~ 70°C
XJCBBIAANF-10.368000	CRYSTAL 10.3680MHZ 10PF SMD	XJ	10.368 MHz	±10ppm	10pF	-10°C ~ 60°C
X2AEECNANF-24.000000	CRYSTAL 24.0000MHZ 8PF SMD	X2	24 MHz	±30ppm	8pF	-20°C ~ 70°C
X2AGHINANF-48.000000	CRYSTAL 48.0000MHZ 8PF SMD	X2	48 MHz	±100ppm	8pF	-10°C ~ 60°C
X2CGGCSANF-25.000000	CRYSTAL 25.0000MHZ 10PF SMD	X2	25 MHz	±50ppm	10pF	-20°C ~ 70°C
X2CGGCSANF-30.000000	CRYSTAL 30.0000MHZ 10PF SMD	X2	30 MHz	±50ppm	10pF	-20°C ~ 70°C
X2DCCCNANF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	X2	25 MHz	±20ppm	12pF	-20°C ~ 70°C
X2DEECNANF-24.000000	CRYSTAL 24.0000MHZ 12PF SMD	X2	24 MHz	±30ppm	12pF	-20°C ~ 70°C
X2DEECNANF-25.000000	CRYSTAL 25.0000MHZ 12PF SMD	X2	25 MHz	±30ppm	12pF	-20°C ~ 70°C
X2FCCLNANF-16.000000	CRYSTAL 16.0000MHZ 16PF SMD	X2	16 MHz	±20ppm	16pF	-40°C ~ 85°C
X2FCCLNANF-25.000000	CRYSTAL 25.0000MHZ 16PF SMD	X2	25 MHz	±20ppm	16pF	-40°C ~ 85°C
X2GCELNANF-24.000000	CRYSTAL 24.0000MHZ 18PF SMD	X2	24 MHz	±30ppm	18pF	-40°C ~ 85°C
X2GCELNANF-25.000000	CRYSTAL 25.0000MHZ 18PF SMD	X2	25 MHz	±30ppm	18pF	-40°C ~ 85°C
X2GEECNANF-24.000000	CRYSTAL 24.0000MHZ 18PF SMD	X2	24 MHz	±30ppm	18pF	-20°C ~ 70°C
X2GEGLNANF-24.000000	CRYSTAL 24.0000MHZ 18PF SMD	X2	24 MHz	±50ppm	18pF	-40°C ~ 85°C
