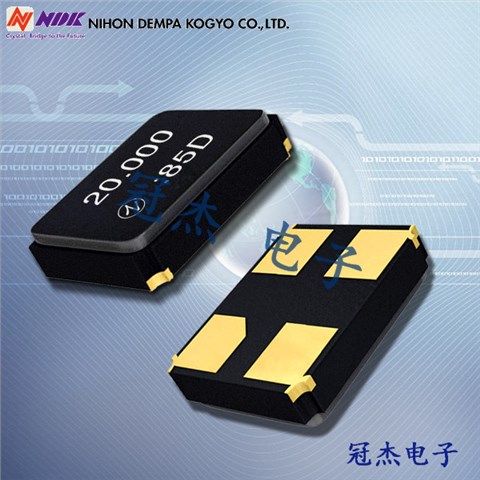

NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,±30ppm,3225mm，日本电波株式会社NDK晶振NX3225GA，编码为：NX3225GA-16.9344M-STD-CRG-2，是一款小体积晶振尺寸3.2x2.5mm四脚贴片晶振，石英晶体谐振器，无源晶振，石英晶振，无铅环保晶振，频率为16.9344MHz，工作温度范围：-40℃至+150℃。具有超小型，轻薄型，耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，符合AEC-Q200标准。该谐振器特别适用于：汽车电子设备，车载电子晶振，汽车音影晶振，汽车氛围灯控制器，汽车充电桩，汽车电子控制板，汽车大灯恒温器，无线网络，蓝牙模块，移动通讯设备，数码电子等应用。

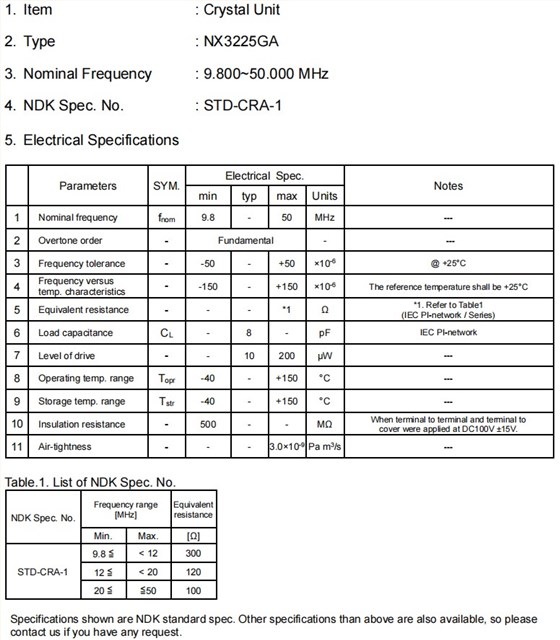

NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,±30ppm,3225mm，参数表
项目
NX3225GA
标称频率
9.840 to 50 MHz
序曲顺序
Fundamental
频率公差（25±3°C）
±20 × 10−6
频率与温度特性（参考+25°C）
±30 × 10−6
工作温度范围
−40 to +85 °C
储存温度范围
−40 to +85 °C
等效串联电阻
Refer to *1
驱动级别
10 μW (Max. 200 μW)
负载电容
8pF
规格编号
STD-CRG-2

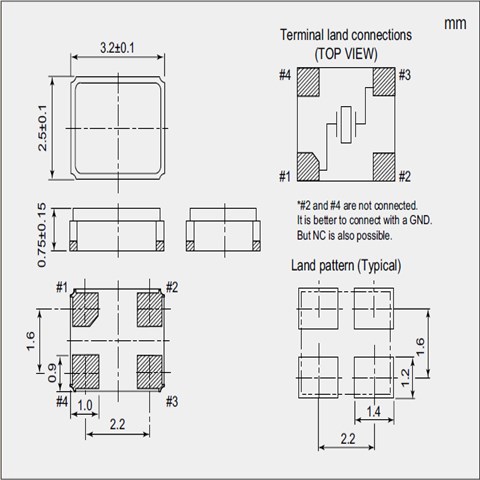

NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,±30ppm,3225mm，尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 频率稳定度 | 包装/封装 |
| NX3225GA-26.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 26MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-26MHZ-TI | NDK晶振 | NX3225GA | 26MHz | ±40ppm | 4-SMD, No Lead |
| NX3225GA-16.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 16MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 27MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-20.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 20MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-24.576M-STD-CRG-2 | NDK晶振 | NX3225GA | 24.576MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-26.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 26MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.31818M-STD-CRG-2 | NDK晶振 | NX3225GA | 14.31818MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-32M-EXS00A-CG02611 | NDK晶振 | NX3225GA | 32MHz | ±20ppm | 4-SMD, No Lead |
| NX3225GA-20.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 20MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.7456M-STD-CRG-1 | NDK晶振 | NX3225GA | 14.7456MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27M-STD-CRG-2 | NDK晶振 | NX3225GA | 27MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-20MHZ-STD-CRA-1 | NDK晶振 | NX3225GA | 20MHz | ±150ppm | 4-SMD, No Lead |
| NX3225GA-19.2M-STD-CRG-2 | NDK晶振 | NX3225GA | 19.2MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-16.9344M-STD-CRG-2 | NDK晶振 | NX3225GA | 16.9344MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-10.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 10MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-12MHZ- STD-CRG-2 | NDK晶振 | NX3225GA | 12MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-12.000M-STD-CRA-1 | NDK晶振 | NX3225GA | 12MHz | ±150ppm | 4-SMD, No Lead |
| NX3225GA-12.288M-STD-CRG-2 | NDK晶振 | NX3225GA | 12.288MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-13.56M-STD-CRG-2 | NDK晶振 | NX3225GA | 13.56MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.7456M-STD-CRG-2 | 3225晶振 | NX3225GA | 14.7456MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27.12M-STD-CRG-2 | NDK晶振 | NX3225GA | 27.12MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-25.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 25MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-25.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 25MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-16.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 16MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-12MHZ- STD-CRG-1 | NDK晶振 | NX3225GA | 12MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.31818M-STD-CRG-1 | NDK晶振 | NX3225GA | 14.31818MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-10.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 10MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-30.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 30MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-30.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 30MHz | ±30ppm | 4-SMD, No Lead |
