6G基站晶振,NX3215SE-32.768KHZ-STD-MUA-17,NDK无源谐振器，尺寸3.2*1.5mm,频率32.768KHZ，日本进口晶振，日本电波贴片晶振，32.768KHZ晶振，3215mm晶振，两脚贴片晶振，无源晶振，石英晶振，石英贴片晶振，石英晶体谐振器，低损耗晶振，无源贴片晶振，SMD晶振，贴片型谐振器，高性能晶振，高品质无源晶振，移动通信晶振，办公自动化晶振，6G基站专用晶振，蓝牙音响贴片晶振，时钟应用晶振，仪器设备晶振，网络产品晶振。
32.768K贴片晶振产品主要应用范围包含移动通信、OA(办公自动化)的最佳电气特性和视听应用，蓝牙音响，以及时钟应用，网络电子等领域。6G基站晶振,NX3215SE-32.768KHZ-STD-MUA-17,NDK无源谐振器.

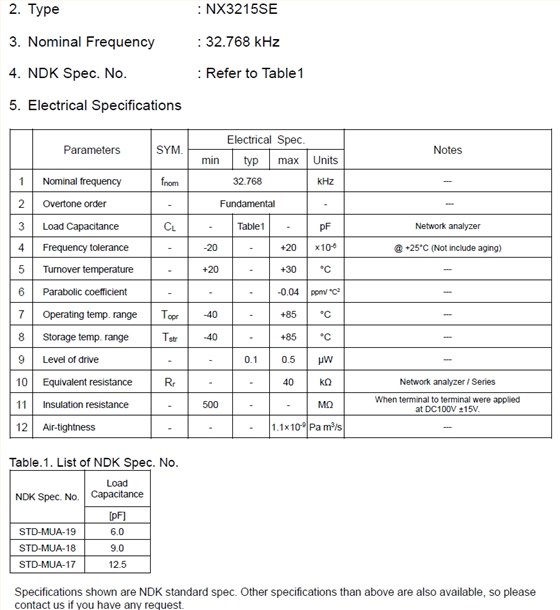

6G基站晶振,NX3215SE-32.768KHZ-STD-MUA-17,NDK无源谐振器参数表
Parameters
SYM.
ElectricalSpec.
Notes
min
typ
max
Units
1
Nominal frequency
fnom
32.768
kHz
---
2
Overtone order
-
Fundamental
-
---
3
Load Capacitance
CL
-
Table1
-
pF
Network analyzer
4
Frequency tolerance
-
-20
-
+20
×10-6
@ +25°C (Not include aging)
5
Turnover temperature
-
+20
-
+30
°C
---
6
Parabolic coefficient
-
-
-
-0.04
ppm/。C2
---
7
Operating temp. range
Topr
-40
-
+85
°C
---
8
Storage temp. range
Tstr
-40
-
+85
°C
---
9
Level of drive
-
-
0.1
0.5
µW
---
10
Equivalent resistance
Rr
-
-
40
kΩ
Network analyzer / Series
11
Insulation resistance
-
500
-
-
M?
When terminal to terminal were applied
at DC100V ±15V.
12
Air-tightness
-
-
-
1.1×10-9
Pa m3/s
---

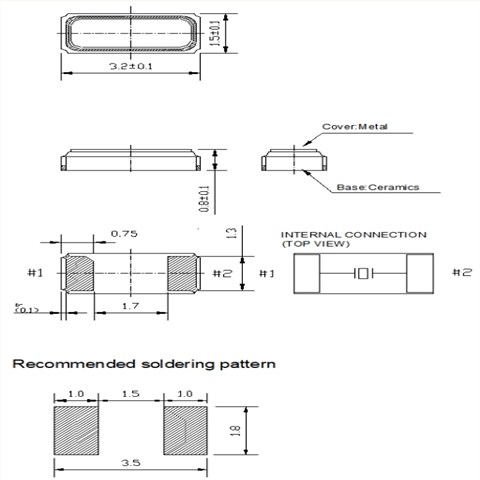

6G基站晶振,NX3215SE-32.768KHZ-STD-MUA-17,NDK无源谐振器尺寸图

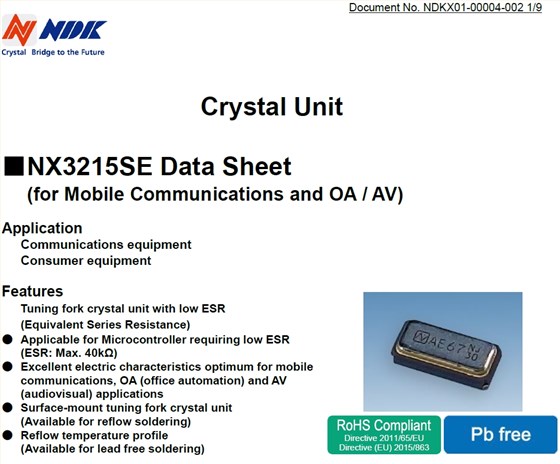

贴片石英晶体产品特性：
低ESR(等效串联电阻)音叉晶体单元
适用于要求低ESR的微控制器。(ESR:最大。40kΩ)
表面贴装音叉晶体单元(可用于回流焊)
回流温度曲线(适用于无铅焊接)
更多相关日本电波晶振型号
| Model | Nominal frequency[kHz] | Specification number | 晶振厂家 | Package size(LxW)[mm] | Package size(H)[mm] | Operating temperature rang[℃] | Storage temperature range[℃] |
| NX1610SA | 32.768 | STD-MUD-1 | NDK无源谐振器 | 1.6×1.0 | 0.45 | -40~+85 | -40~+85 |
| NX1610SA | 32.768 | STD-MUD-2 | NDK无源谐振器 | 1.6×1.0 | 0.45 | -40~+85 | -40~+85 |
| NX1610SA | 32.768 | STD-MUD-3 | NDK无源谐振器 | 1.6×1.0 | 0.45 | -40~+85 | -40~+85 |
| NX1610SE | 32.768 | STD-MUD-4 | NDK无源谐振器 | 1.6×1.0 | 0.45 | -40~+85 | -40~+85 |
| NX1610SE | 32.768 | STD-MUD-5 | NDK无源谐振器 | 1.6×1.0 | 0.45 | -40~+85 | -40~+85 |
| NX1610SE | 32.768 | STD-MUD-6 | NDK无源谐振器 | 1.6×1.0 | 0.45 | -40~+85 | -40~+85 |
| NX2012SA | 32.768 | STD-MUB-1 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SA | 32.768 | STD-MUB-2 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SA | 32.768 | STD-MUB-3 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SE | 32.768 | STD-MUB-8 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SE | 32.768 | STD-MUB-9 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SE | 32.768 | STD-MUB-10 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+85 | -40~+85 |
| NX2012SA | 32.768 | STD-MUT-1 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SA | 32.768 | STD-MUT-2 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SA | 32.768 | STD-MUT-3 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SF | 32.768 | STD-MUP-11 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SF | 32.768 | STD-MUP-12 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX2012SF | 32.768 | STD-MUP-13 | NDK无源谐振器 | 2.0×1.2 | 0.55 | -40~+125 | -40~+125 |
| NX3215SA | 32.768 | STD-MUA-8 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SA | 32.768 | STD-MUA-9 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SA | 32.768 | STD-MUA-14 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SE | 32.768 | STD-MUA-17 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SE | 32.768 | STD-MUA-18 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SE | 32.768 | STD-MUA-19 | NDK晶振 | 3.2×1.5 | 0.8 | -40~+85 | -40~+85 |
| NX3215SA | 32.768 | STD-MUS-2 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SA | 32.768 | STD-MUS-3 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SA | 32.768 | STD-MUS-4 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SD | 32.768 | STD-MUS-5 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SD | 32.768 | STD-MUS-6 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SD | 32.768 | STD-MUS-7 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SF | 32.768 | STD-MUP-1 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SF | 32.768 | STD-MUP-2 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
| NX3215SF | 32.768 | STD-MUP-3 | NDK无源谐振器 | 3.2×1.5 | 0.8 | -40~+125 | -40~+125 |
