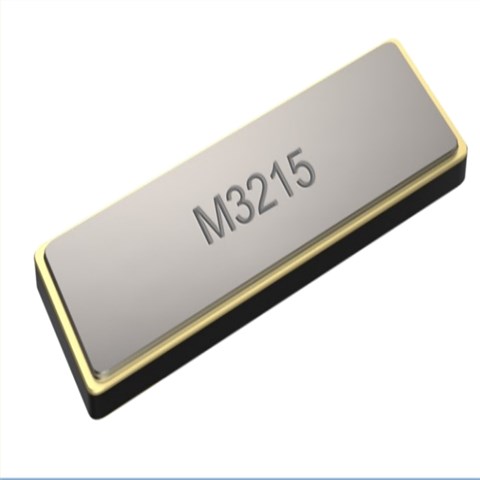

M3215-32.768kHz-±20ppm-12.5pF/6G通信晶振/彼得曼无源晶体，尺寸尺寸3.2*1.5mm,频率32.768KHZ，PETERMANN晶振，德国进口晶振，石英晶体，无源晶振，轻薄型晶振，水晶振动子，音叉晶体，无源贴片晶振，贴片石英晶振，石英晶体谐振器，32.768K晶振，环保晶振，无线应用晶振，移动通信晶振，智能手机晶振，平板电脑晶振，蓝牙耳机晶振，数码相机专用晶振，娱乐设备晶振，3215mm贴片晶振，两脚贴片晶振，高质量音叉晶体，32.768KHZ无源晶振，高性能晶振，低成本晶振，具有轻薄型高性能的特点。
SMD晶振产品比较适合用于优秀的时钟发生器的CPU，无线，移动通信，平板电脑，蓝牙耳机，数码相机，测试与测量，娱乐设备等领域。M3215-32.768kHz-±20ppm-12.5pF/6G通信晶振/彼得曼无源晶体.

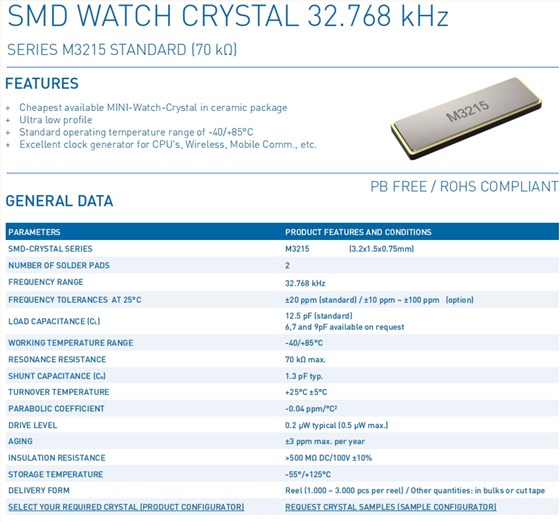

M3215-32.768kHz-±20ppm-12.5pF/6G通信晶振/彼得曼无源晶体参数表
PARAMETERS
PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES
M3215 (3.2*1.5*0.75mm)
NUMBER OF SOLDER PADS
2
FREQUENCY RANGE
32.768 kHz
FREQUENCY TOLERANCES AT 25°C
±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)
12.5 pF (standard)
6，7 and 9.0 pF available on request
WORKING TEMPERATURE RANGE
-40/+85°C
RESONANCE RESISTANCE
70 kΩ max.
SHUNT CAPACITANCE (Co)
1.3 pF typ.
TURNOVER TEMPERATURE
+25°C ±5°C
PARABOLIC COEFFICIENT
-0.04 ppm/°C²
DRIVE LEVEL
0.2 µW typical (0.5 μW max.)
AGING
±3 ppm max. per year
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE
-55°/+125°C
DELIVERY FORM
Reel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape

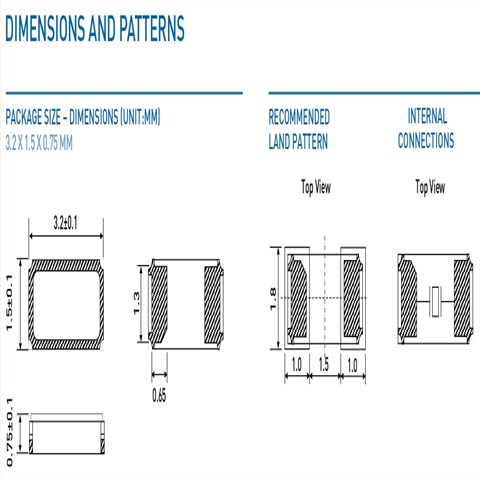

M3215-32.768kHz-±20ppm-12.5pF/6G通信晶振/彼得曼无源晶体尺寸图
无源晶振产品特性：
最便宜的迷你手表
水晶陶瓷包装
超低标准
工作温度范围-40/+85°C
更多相关德国彼得曼晶振PETERMANNCrystal型号，请咨询我们！
