EG-2121CB路由器晶振,X1M000231000400,EPSON低电压晶振

EG-2121CB路由器晶振,X1M000231000400,EPSON低电压晶振，日本进口晶振，EPSON爱普生株式会社，型号EG-2121CB，编码为：X1M000231000400，频率为：156.25MHz，小体积晶振尺寸：5.0x3.2x1.2mm封装，六脚贴片晶振，LVDS输出差分晶振，低抖动表面声波(SAW)振荡器 (SPSO)，有源晶振，石英晶体振荡器，无铅环保晶振，EG-2121CBL差分晶体振荡器能够输出差分信号的晶振,输出差分信号使用2种相位彼此完全相反的信号，从而消除了共模噪声,并产生一个更高性能的系统。具有超小型，轻薄型，低相位噪声，低抖动，低功耗，低损耗，低电源电压，高精度，高性能，高品质等特点。5032晶振被广泛用于：通讯设备，无线网络，蓝牙模块，光模块，光纤通讯，路由器，机顶盒，光端机，医疗设备，安防设备，物联网等应用。

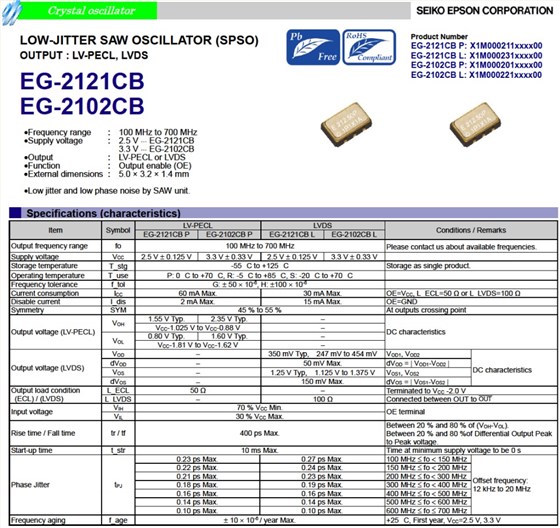

EG-2121CB路由器晶振,X1M000231000400,EPSON低电压晶振参数表

Item	Symbol	LV-PECL	LVDS	Conditions / Remarks
		EG-2121CBP	EG-2121CBL
Output frequency range	f0	156.25MHz		Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	2.5V ±0.125V
Storage temperature	T_stg	-55°C to +125°C		Store as bare product.
Operating temperature	T_use	P : 0°C to +70°C
		R : -5°C to +85°C
		S : -20°C to +70°C
Frequency tolerance	f_tol	G : ± 50 × 10-6
		H : ±100 × 10-6
Current consumption	ICC	60mA Max.	-	OE = VCC, L_ECL = 50Ω
		-	30mA Max.	OE = VCC, L_LVDS = 100Ω
Disable current	I_dis	2mA Max.	15mA Max.	OE = GND
Symmetry	SYM	45% to 55%		At outputs crossing point
Output voltage	VOH	1.55V Typ.	-	DC characteristics
(LV-PECL)		VCC- 1.025V to VCC- 0.88V	-
	VOL	0.80V Typ.	-
		VCC- 1.81V to VCC- 1.62V	-
Output voltage	VOD	-	350mV Typ, 247mV to 454mV	VOD1, VOD2	DC characteristics
(LVDS)	dVOD	-	50mV Max.	dVOD= \| VOD1- VOD2\|
	VOS	-	1.25V Typ, 1.125V to 1.375V	VOS1, VOS2
	dVOS	-	150mV Max.	dVOS= \| VOS1- VOS2\|
Output load condition	L_ECL	50Ω	-	Terminated to VCC- 2.0V
(ECL) / (LVDS)	L_LVDS	-	100Ω	Connected between OUT toOUT
Input voltage	VIH	70% VCCMin.		OE terminal
	VIL	30% VCCMax.
Rise time / Fall time	tr / tf	400ps Max.		Between 20% and 80% of ( VOH- VOL)
				Between 20% and 80% of Differential Output peek to peek voltage.
Start-up time	t_str	10ms Max.		Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.23ps Max.	0.27ps Max.	100MHz≦f0< 150MHz	Offset frequency:
		0.22ps Max.	0.24ps Max.	150MHz≦f0< 200MHz	12kHz to 20MHz
		0.21ps Max.	0.23ps Max.	200MHz≦f0< 300MHz
		0.18ps Max.	0.19ps Max.	300MHz≦f0< 400MHz
		0.16ps Max.	0.16ps Max.	400MHz≦f0< 500MHz
		0.14ps Max.	0.14ps Max.	500MHz≦f0< 600MHz
		0.10ps Max.	0.10ps Max.	600MHz≦f0< 700MHz
Frequency aging	f_aging	± 10 × 10-6/ year Max.		+25°C , First year , VCC= 2.5V

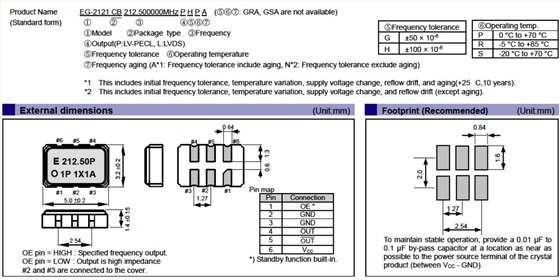

EG-2121CB路由器晶振,X1M000231000400,EPSON低电压晶振 尺寸图

EG-2121CB路由器晶振,X1M000231000400,EPSON低电压晶振

日本爱普生LVDS晶振也就是我们所说的EPSON差分晶振，具有多种输出功能，能够轻易识别网络信号以及精确的处理双极信号.差分贴片晶体振荡器使用于产品中能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的.

编码	爱普生晶振	型号	频率	尺寸	输出方式
X1M000121000100	EPSON晶振	EG-2103CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS
X1M000221000200	EPSON晶振	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000221000300	EPSON晶振	EG-2102CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000221000400	EPSON晶振	EG-2102CB	266.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000221000500	EPSON晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000221000600	EPSON晶振	EG-2102CB	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000221000700	EPSON晶振	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000221000800	EPSON晶振	EG-2102CB	148.351648 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000221000900	EPSON晶振	EG-2102CB	148.350000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000221001000	EPSON晶振	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000221001100	EPSON晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231000200	EPSON晶振	EG-2121CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231000300	EPSON晶振	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231000400	EPSON晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231000500	EPSON晶振	EG-2121CB	402.832000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231000600	EPSON晶振	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231000700	EPSON晶振	EG-2121CB	133.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231001000	EPSON晶振	EG-2121CB	500.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231001100	进口晶振	EG-2121CB	402.832031 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231001300	EPSON晶振	EG-2121CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231001400	EPSON晶振	EG-2121CB	441.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231001500	EPSON晶振	EG-2121CB	625.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231001600	EPSON晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231001700	EPSON晶振	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231001800	EPSON晶振	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231001900	EPSON晶振	EG-2121CB	233.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231002000	EPSON晶振	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000231002100	EPSON晶振	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000281000300	EPSON晶振	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000281000400	EPSON晶振	EG-2103CB	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
X1M000281000600	EPSON晶振	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS
