日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振，尺寸5.0*3.2mm,频率13.56MHZ，NDK无源晶振，日本进口晶振，日本电波贴片晶振，5032mm贴片晶振，贴片陶瓷晶振，陶瓷谐振器，SMD晶振，无源贴片晶振，无源晶体，两脚贴片晶振，无线通讯晶振，轻薄型晶体，SMD晶体谐振器，水晶振动子，汽车级晶振，视频参考晶振，时钟源专用晶振，音频设备晶振，影音系统晶振，低损耗晶振，低功耗晶振，低耗能晶振，高质量晶振，具有高质量低损耗的特点。
无源晶振产品超级适合用于汽车配件和视频参考时钟源和音频设备，通信设备，影音系统等应用领域。日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振.

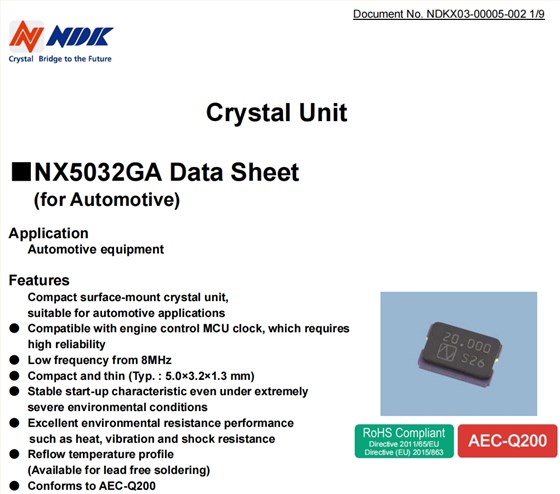

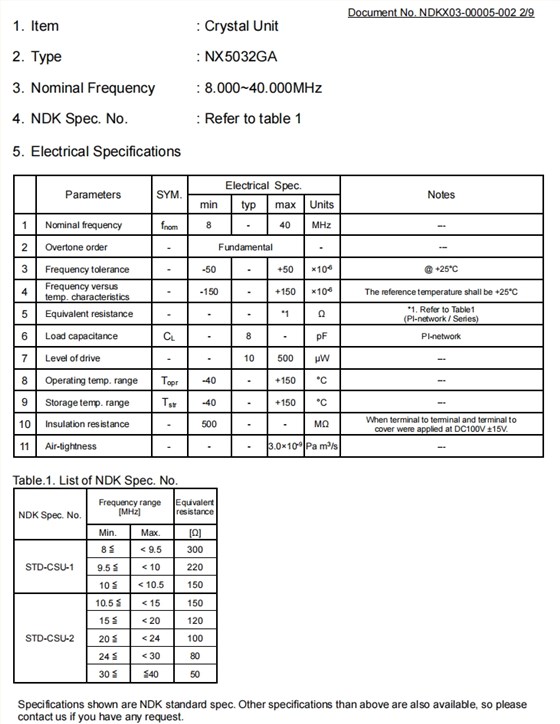

日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振 参数表
| Parameters | SYM. | ElectricalSpec. | Notes | ||||||||||||||||||||||||||||||||||||||
| min | typ | max | Units | ||||||||||||||||||||||||||||||||||||||
| Nominal frequency | fnom |
|
13.56 |
|
MHz | --- | |||||||||||||||||||||||||||||||||||
| Overtone order | - | Fundamental | - | --- | |||||||||||||||||||||||||||||||||||||
| Frequency tolerance | - | -50 | - | +50 | ×10-6 | @ +25°C | |||||||||||||||||||||||||||||||||||
|
Frequency versus temp. characteristics |
- | -150 | - | +150 | ×10-6 | The reference temperature shall be +25°C | |||||||||||||||||||||||||||||||||||
| Equivalent resistance | - | - | - | *1 | Ω |
*1. Refer to Table1 (IEC PI-network / Series) |
|||||||||||||||||||||||||||||||||||
| Load capacitance | CL | - | 8 | - | pF | IEC PI-network | |||||||||||||||||||||||||||||||||||
| Level of drive | - | - | 10 | 200 | µW | --- | |||||||||||||||||||||||||||||||||||
| Operating temp. range | Topr | -40 | - | +150 | °C | --- | |||||||||||||||||||||||||||||||||||
| Storage temp. range | Tstr | -40 | - | +150 | °C | --- | |||||||||||||||||||||||||||||||||||
| Insulation resistance | - | 500 | - | - | MΩ |
When terminal to terminal and terminal to cover were applied at DC100V ±15V. |
|||||||||||||||||||||||||||||||||||
| Air-tightness | - | - | - | 3.0×10-9 | Pa m3/s | --- | |||||||||||||||||||||||||||||||||||

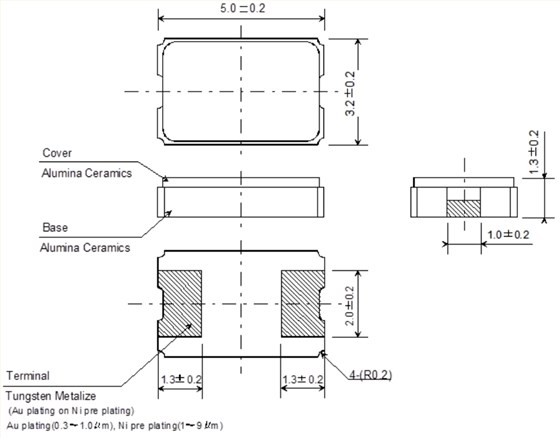

日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振 尺寸图
日本电波陶瓷晶振,NX5032GA-13.56MHZ-STD-CSK-4,NX5032GA视频晶振
陶瓷晶振产品特性：
适用于汽车配件和视频参考时钟源和音频设备
紧凑型和薄(典型。:5.0×3.2×1.3毫米)
8MHz以下的低频
优异的耐热等耐环境性能和耐震强度
回流温度曲线(适用于无铅焊接)
| 进口晶振 | Nominal frequency[MHz] | Specification number | Package size(LxW)[mm] | Operating temperature rang[℃] | Storage temperature range[℃] | Frequency tolerance[ppm] |
| NX3225GB | 50 | STD-CRA-2 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 7.998 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 8 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 8.018 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 8.192 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 9.18 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 9.185 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 9.509 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 9.844 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 9.99 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 10 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 11 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 11.059 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX3225GD | 11.29 | STD-CRA-3 | 3.2×2.5 | -40~+150 | -40~+150 | ±50 |
| NX5032GA | 8 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 8.192 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 9 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 9.216 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 9.519 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 9.6 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 9.83 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 9.844 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 10 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 10.178 | STD-CSK-3 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 11.059 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 11.29 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 12 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 12.288 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 12.5 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 12.58 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 12.732 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 12.75 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 13 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 13.081 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 13.226 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 13.4 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 13.44 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 13.5 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 13.56 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 13.824 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 14 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 14.188 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 14.297 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 14.3 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 14.318 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 14.4 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 14.5 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 14.746 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 15 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 15.36 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 15.968 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 15.974 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 15.978 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.013 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.384 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.5 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.589 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.6 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.667 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.67 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.7 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.777 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.9 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.92 | STD-CSK-4 | 5032贴片晶振 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 16.934 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 17.328 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 17.581 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 17.734 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 18 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 18.432 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 19 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 19.07 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 19.07 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 19.2 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 19.312 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 19.313 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 19.661 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 20 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 20.25 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
| NX5032GA | 20.48 | STD-CSK-4 | 5.0×3.2 | -10~+70 | -40~+85 | ±20 |
