H13-26.000-16-1030-EXT-TR,卢柏26MHZ晶振,7050mm,H13，尺寸7.0*5.0mm,频率26MHZ，Rubyquartz石英晶体，欧美进口晶振，高质量晶振，高性能晶振，无铅晶振，7050mm小体积晶振，26MHZ贴片晶振，石英晶体谐振器，SMD晶振，石英贴片晶振，石英晶体，无源晶振，测试设备晶振，仪器设备晶振，智能家居晶振，便携式设备晶振，智能音响晶振，可视化电话机晶振，物联网晶振，低损耗晶振，低功耗晶振，具有超高的可靠性能。
贴片晶振产品比较适合用于测试设备，仪器设备，智能家居，便携式设备，智能音响，可视化电话机，物联网等应用领域。H13-26.000-16-1030-EXT-TR,卢柏26MHZ晶振,7050mm,H13.

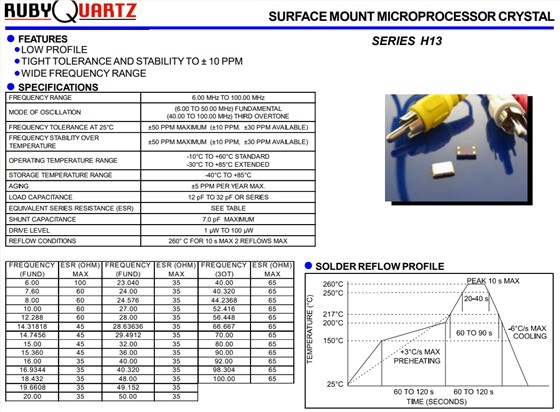

H13-26.000-16-1030-EXT-TR,卢柏26MHZ晶振,7050mm,H13 参数表
| FREQUENCY RANGE | 26.00 MHz | |||||||||||||||||
| MODE OF OSCILLATION |
(6.00 TO 50.00 MHz) FUNDAMENTAL (40.00 TO 100.00 MHz) THIRD OVERTONE |
|||||||||||||||||
| FREQUENCY TOLERANCE AT 25°C | ±50 PPM MAXIMUM(±10 PPM,±30 PPM AVAILABLE) | |||||||||||||||||
|
FREQUENCY STABILITY OVER TEMPERATURE |
±50 PPM MAXIMUM(±10 PPM,±30 PPM AVAILABLE) | |||||||||||||||||
| OPERATING TEMPERATURE RANGE |
-10°C TO +60°C STANDARD -30°C TO +85°C EXTENDED |
|||||||||||||||||
| STORAGE TEMPERATURE RANGE | -40°C TO +85°C | |||||||||||||||||
| AGING | ±5 PPM PER YEAR MAX. | |||||||||||||||||
| LOAD CAPACITANCE | 12 pF TO 32 pF OR SERIES | |||||||||||||||||
| EQUIVALENT SERIES RESISTANCE (ESR) | SEE TABLE | |||||||||||||||||
| SHUNT CAPACITANCE | 7.0 pFMAXIMUM | |||||||||||||||||
| DRIVE LEVEL | 1 µW TO 100 µW | |||||||||||||||||
| REFLOW CONDITIONS | 260° C FOR 10 s MAX 2 REFLOWS MAX | |||||||||||||||||

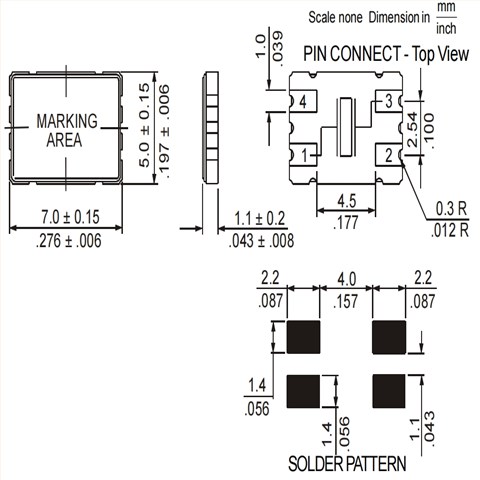

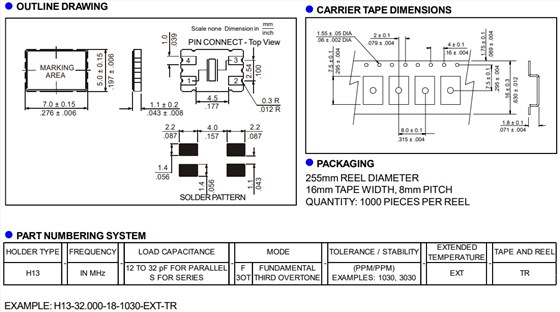

H13-26.000-16-1030-EXT-TR,卢柏26MHZ晶振,7050mm,H13 尺寸图
H13-26.000-16-1030-EXT-TR,卢柏26MHZ晶振,7050mm,H13
无源晶振产品特性：
低调
耐受性和稳定性为±10PPM
宽频率范围
