2520mm,FMXMC20S118FFB-27.000000M-CM,FMXMC20S网络晶振,FMI水晶振动子特点:
表面贴装陶瓷组件。

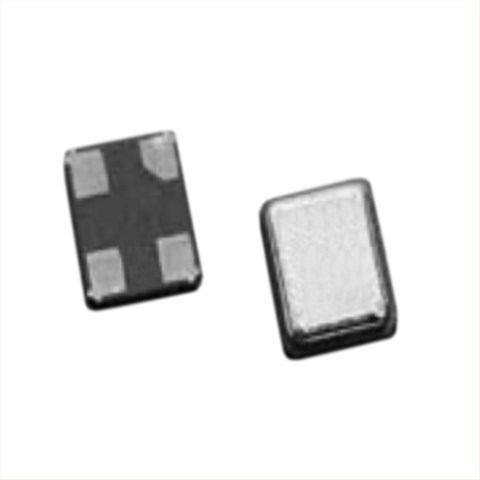

Micro 2520贴片晶振/超薄
高可靠性
紧密稳定性

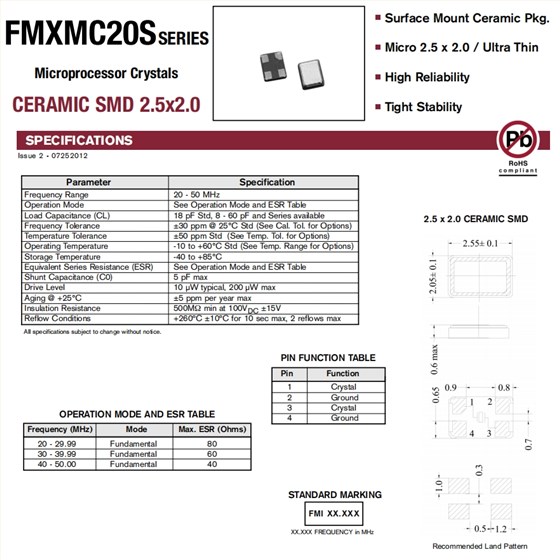

2520mm,FMXMC20S118FFB-27.000000M-CM,FMXMC20S网络晶振,FMI水晶振动子 参数表
| Parameter | Specification | |||||||||||||
| Frequency Range | 27 MHz | |||||||||||||
| Operation Mode | See Operation Mode and ESR Table | |||||||||||||
| Load Capacitance (CL) | 18 pF Std, 8 - 60 pF and Series available | |||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std (See Cal. Tol. for Options) | |||||||||||||
| Temperature Tolerance | ±50 ppm Std(See Temp. Tol. for Options) | |||||||||||||
| Operating Temperature | -10 to +60°C Std (See Temp. Range for Options) | |||||||||||||
| Storage Temperature | -40 to +85°C | |||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | |||||||||||||
| Shunt Capacitance (C0) | 5 pF max | |||||||||||||
| Drive Level | 10 µWtypical, 200 µW max | |||||||||||||
| Aging @ +25°C | ±5 ppm per year max | |||||||||||||
| Insulation Resistance | 500MΩ min at 100VDC±15V | |||||||||||||
| Reflow Conditions | +260ºC ±10ºC for 10 sec max, 2 reflows max | |||||||||||||
