FMXMC12S-9FC-32.768K-TR,FMI音叉晶振,2012mm,FMXMC12S系列晶体,美国FMI晶振,欧美进口晶振,无源贴片晶振,SMD晶振,两脚水晶振动子,2012mm超小型谐振器,无源晶振,轻薄型晶振,32.768KHZ晶振,尺寸2.0*1.2mm,频率32.768KHZ,负载9pF,无铅晶振,低功耗晶振,高精度晶振,高性能晶振,电话机晶振,无线设备晶振,数字显示晶振,时钟晶振.

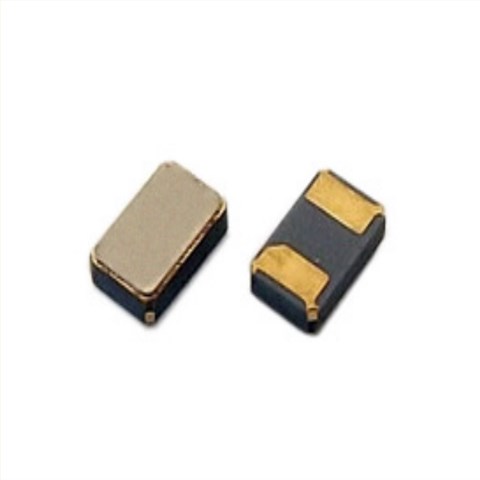

FMXMC12S-9FC-32.768K-TR,FMI音叉晶振,2012mm,FMXMC12S系列晶体特点:
表面贴装陶瓷组件。
Micro 2 x 1.2/超薄型无源晶振
32.768千赫
紧密稳定性

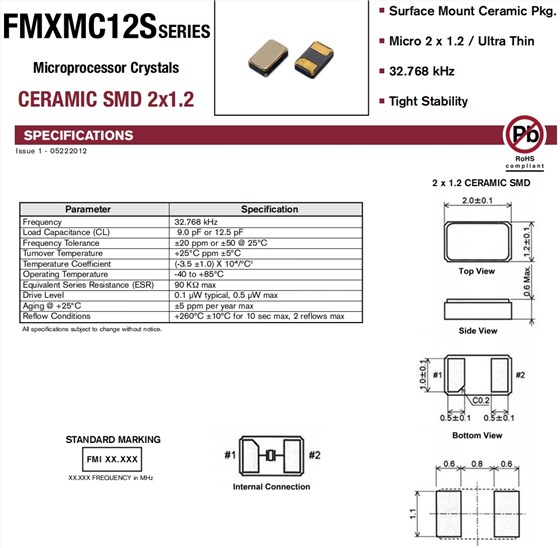

FMXMC12S-9FC-32.768K-TR,FMI音叉晶振,2012mm,FMXMC12S系列晶体 参数表
| Parameter | Specification | ||||||||||||||
| Frequency | 32.768 kHz | ||||||||||||||
| Load Capacitance (CL) | 9.0 pF or 12.5 pF | ||||||||||||||
| Frequency Tolerance | ±20 ppm or ±50 @ 25°C | ||||||||||||||
| Turnover Temperature | +25°C ppm ±5°C | ||||||||||||||
| Temperature Coefficient | (-3.5 ±1.0) X 10-8/ºC2 | ||||||||||||||
| Operating Temperature | -40 to +85°C | ||||||||||||||
| Equivalent Series Resistance (ESR) | 90 KΩ max | ||||||||||||||
| Drive Level | 0.1 µWtypical, 0.5 µW max | ||||||||||||||
| Aging @ +25°C | ±5 ppm per year max | ||||||||||||||
| Reflow Conditions | +260ºC ±10ºC for 10 sec max, 2 reflows max | ||||||||||||||
