D53G-020.0M-T,5032mm,20MHz,ConnorWinfield温补晶体振荡器

产品简介

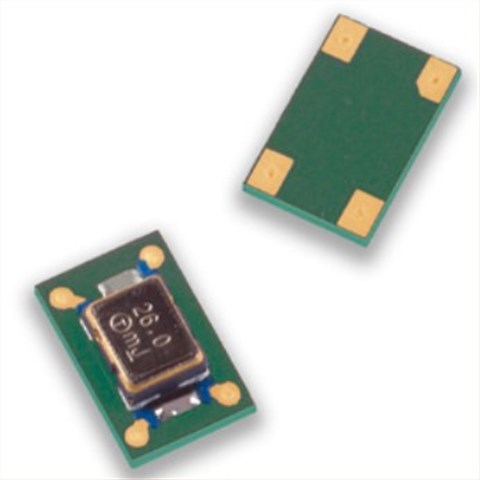

D53G-020.0M-T,5032mm,20MHz,ConnorWinfield温补晶体振荡器，美国进口晶振，ConnorWinfield晶振，康纳温菲尔德晶振，型号：D53G系列，编码为：D53G-020.0M-T，电压：3.3V，频率为：20.000MHz，工作温度范围：-30℃至+85℃，小体积晶振尺寸：5.0x3.2mm表面安装，四脚贴片晶振，有源晶振，石英晶振，TCXO温补晶振，5032石英晶体振荡器。设计用于需要紧密频率稳定性的应用。符合RoHS的表面安装包是设计为高密度安装，是最佳的大规模生产。应用于：移动通讯晶振，无线网络晶振，物联网晶振，汽车电子晶振，导航仪晶振，医疗设备等应用。

产品详情

D53G-020.0M-T,5032mm,20MHz,ConnorWinfield温补晶体振荡器，产品特点：

•3.3 Vdc操作，削波正弦波输出，频率稳定性：±0.50ppm

•温度范围：-30至85°C，低抖动<1ps RMS，石英晶振

•5.0x3.2mm SMT封装，磁带和卷轴包装，符合RoHS，无铅

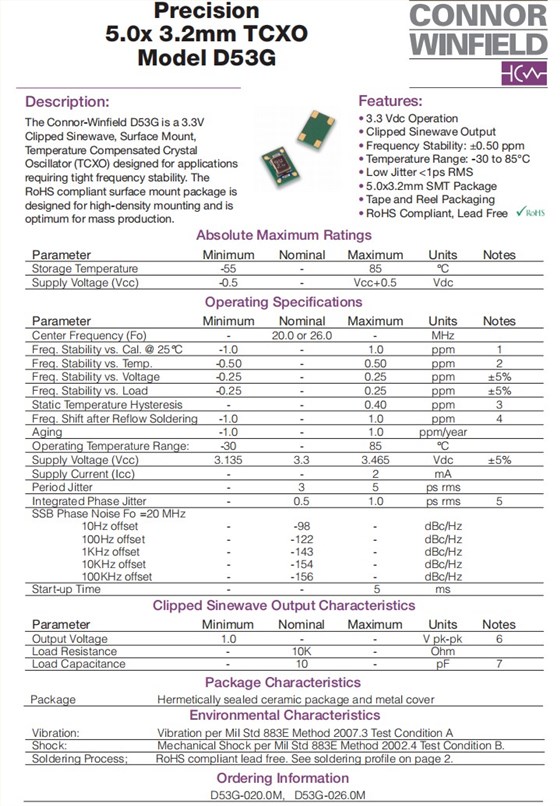

D53G-020.0M-T,5032mm,20MHz,ConnorWinfield温补晶体振荡器,参数表

ParameterMinimumNominalMaximumUnitsNotes

Center Frequency (Fo)-20.0 -MHz

Freq. Stability vs. Cal. @ 25。C-1.0-1.0ppm1

Freq. Stability vs. Temp.-0.50-0.50ppm2

Freq. Stability vs. Voltage-0.25-0.25ppm±5%

Freq. Stability vs. Load-0.25-0.25ppm±5%

Static Temperature Hysteresis--0.40ppm3

Freq. Shift after Reflow Soldering-1.0-1.0ppm4

Aging-1.0-1.0ppm/year

Operating Temperature Range:-30-85°C

Supply Voltage (Vcc)3.1353.33.465Vdc±5%

Supply Current (Icc)--2mA

Period Jitter-35ps rms

Integrated Phase Jitter-0.51.0ps rms5

SSB Phase Noise Fo =20 MHz
10Hz offset
100Hz offset
1KHz offset
10KHz offset
100KHz offset

-
-
-
-
-

-98
-122
-143
-154
-156

-
-
-
-
-

dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz

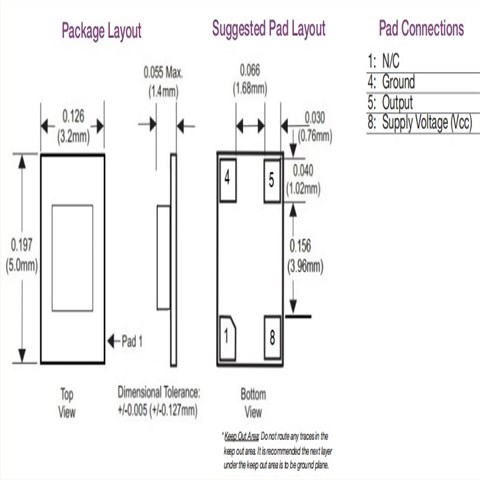

D53G-020.0M-T,5032mm,20MHz,ConnorWinfield温补晶体振荡器,尺寸图
