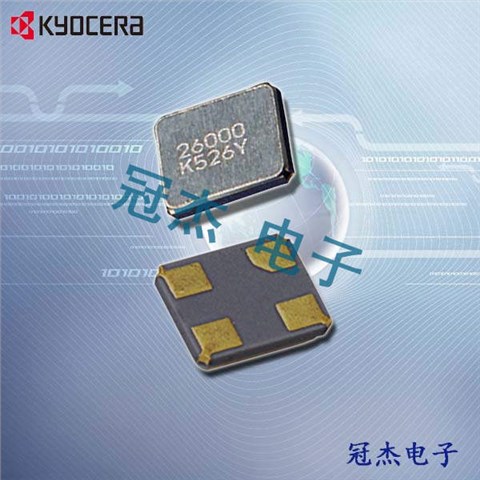

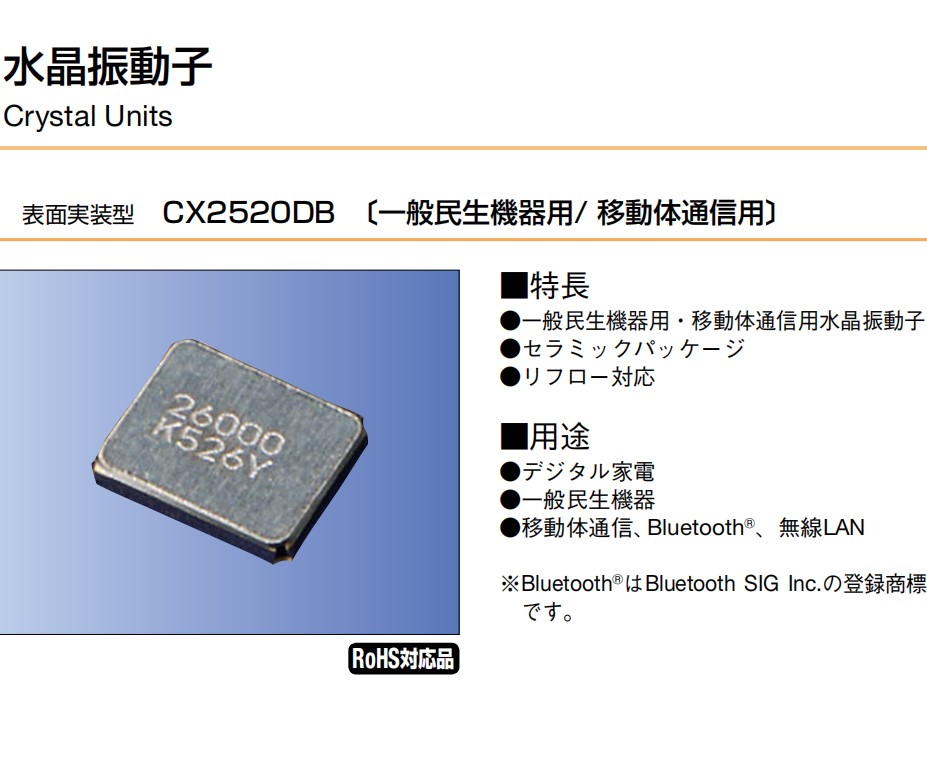

16MHz,CX2520DB16000D0GEJCC,2520mm,8pF,±15ppm,蓝牙模块晶振，日本进口Kyocera京瓷晶振，型号CX2520DB，编码为CX2520DB16000D0GEJCC，是一款小体积晶振尺寸2.5x2.0mm四脚贴片晶振，频率为16MHz，无源晶振，石英晶振，贴片晶振，无铅环保晶振，具有超小型，轻薄型，耐热及耐环境特点，石英晶体谐振器应用于，数字家电，普通民用设备，移动通信设备，无线网络，蓝牙模块，无线局域网，可穿戴设备，医疗设备，汽车电子，小型便捷式设备，数码电子等应用。

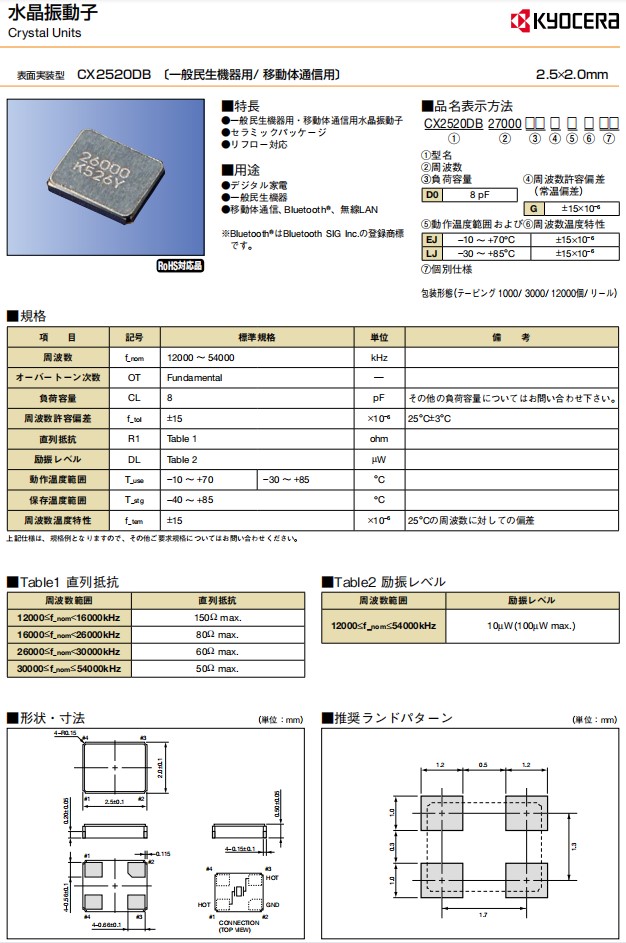

16MHz,CX2520DB16000D0GEJCC,2520mm,8pF,±15ppm,蓝牙模块晶振，参数表
項 目
記 号
CX2520DB 规格
単 位
備 考
周波数
f_nom
12000 ~ 54000
kHz
超调阶数
OT
Fundamental
―
負荷容量
CL
8
pF
关于其他的负荷容量请咨询
周波数許容偏差
f_tol
±15
× 10−6
25°C±3°C
直列抵抗
R1
Table 1
ohm
激励水平
DL
Table 2
W
動作温度範囲
T_use
−10 ~ +70 −30 ~ +85
°C
保存温度範囲
T_stg
−40 ~ +85
°C
周波数温度特性
f_tem
± 15
× 10−6
相对于25℃频率的偏差

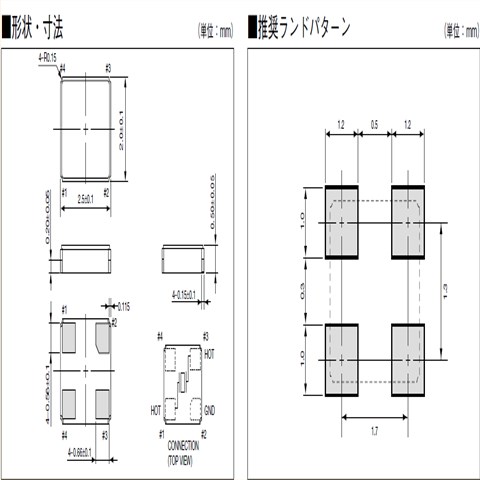

16MHz,CX2520DB16000D0GEJCC,2520mm,8pF,±15ppm,蓝牙模块晶振，尺寸图
16MHz,CX2520DB16000D0GEJCC,2520mm,8pF,±15ppm,蓝牙模块晶振
■品名表示方法
CX2520DB27000□□□□□□□
①② ③ ④ ⑤ ⑥ ⑦
①型名
②周波数
③負荷容量
|
D0 |
8 pF |
|
G |
±15× 10−6 |
⑤动作温度范围及
⑥频率温度特性
|
EJ |
− 10 ~ +70°C |
±15×10−6 |
|
LJ |
−30~ +85°C |
±15× 10−6 |
⑦个别规格
包装形态（包装1000/3000/1200个/卷轴）
| 原厂编码 | 2520晶振 | 频率 | 工作温度 | 包装/封装 |
| CX2520DB19200H0KFQC2 | CX2520DB | 19.2MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24000D0FLJCC | CX2520DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0WZRC1 | CX2520DB | 32MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2520DB16000D0GEJCC | CX2520DB | 16MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24000D0GEJCC | CX2520DB | 24MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB40000D0FLJCC | CX2520DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000H0KLSA1 | CX2520DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000B0FLHA1 | CX2520DB | 27MHz | -10°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB40000H0FLJC3 | CX2520DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB40000D0GPSC1 | CX2520DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB13560H0FLJC1 | CX2520DB | 13.56MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB19200D0FLJC2 | CX2520DB | 19.2MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000D0FLJC1 | CX2520DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB26000D0GPSC1 | CX2520DB | 26MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000H0FLJC1 | CX2520DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB25000D0FLJC1 | CX2520DB | 25MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB13560D0FLJC2 | CX2520DB | 13.56MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24000H0FLJC1 | CX2520DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB12000D0FLJC1 | CX2520DB | 12MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB16000H0FLJC1 | CX2520DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB16000D0GPSC1 | CX2520DB谐振器 | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB12000H0FLJC1 | CX2520DB | 12MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB19200H0FLJC1 | CX2520DB | 19.2MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0GPSC1 | CX2520DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000H0FLJC1 | CX2520DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB26000H0FLJC2 | CX2520DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB16000D0WZRC1 | CX2520DB | 16MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2520DB30000D0GEJCC | CX2520DB | 30MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB16000D0FLJCC | CX2520DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB26000D0FLJCC | CX2520DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400D0FZGC1 | CX2520DB | 38.4MHz | -25°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0FLJCC | CX2520DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000D0GEJCC | CX2520DB | 48MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24576D0GEJCC | CX2520DB | 24.576MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB25000H0FLJC1 | CX2520DB | 25MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB12000C0WLSC1 | CX2520DB | 12MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB12000D0GPSC1 | CX2520DB | 12MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB13560D0GPSC1 | CX2520DB | 13.56MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB19200D0GPSC1 | CX2520DB | 19.2MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB20000H0FLJC1 | CX2520DB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB20000D0GPSC1 | CX2520DB | 20MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24000D0GPSC1 | CX2520DB | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24576D0FLJC1 | CX2520DB | 24.576MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24576H0FLJC1 | CX2520DB | 24.576MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24576D0GPSC1 | CX2520DB | 24.576MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB25000D0GPSC1 | CX2520DB | 25MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000D0GPSC1 | CX2520DB | 27MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB30000D0FLJC1 | CX2520DB | 30MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB30000H0FLJC1 | CX2520DB | 30MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB30000D0GPSC1 | CX2520DB | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400H0FLJC1 | CX2520DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400D0GPSC1 | CX2520DB | 38.4MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000D0FLJC2 | CX2520DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000H0FLJC1 | CX2520DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000D0GPSC1 | CX2520DB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0GEJCC | CX2520DB | 32MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB20000D0FLJCC | CX2520DB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400D0FLJCC | CX2520DB石英晶体 | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24576H0HZQA1 | CX2520DB | 24.576MHz | -20°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB26041F0FJLA1 | CX2520DB | 26.041MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000D0GEJZ1 | CX2520DB | 48MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24576D0GEJZ1 | CX2520DB | 24.576MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB26000D0FLJZ1 | CX2520DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB30000D0GEJZ1 | CX2520DB | 30MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB32000D0FLJZ1 | CX2520DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0GEJZ1 | CX2520DB | 32MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB16000D0FLJZ1 | CX2520DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400D0FLJZ1 | CX2520DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB16000D0GEJZ1 | CX2520DB | 16MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB40000D0FLJZ1 | CX2520DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB20000D0FLJZ1 | CX2520DB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24000D0GEJZ1 | CX2520DB | 24MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24000C0FLJA1 | CX2520DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
