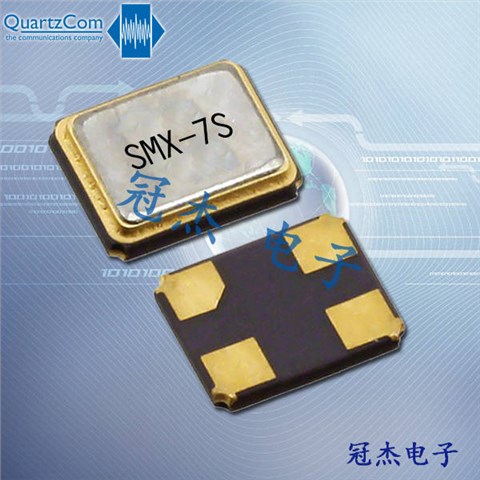

欧洲石英晶振,SMX-7S无源谐振器,24.576MHZ晶体,6GWIFI晶振

产品简介

欧洲石英晶振,SMX-7S无源谐振器,24.576MHZ晶体,6GWIFI晶振，尺寸2.0*1.6mm,频率24.576MHZ，无源晶体，欧美进口晶振，小体积晶振，贴片石英晶体，石英贴片晶振，SMD谐振器，石英晶体谐振器，无源贴片晶振，石英无源晶振，四脚贴片晶振，蓝牙音响晶振，移动通信晶振，6G无线设备晶振，6GWIF专用晶振，网络设备晶振，低损耗无源晶振，高精度石英晶振，高品质贴片晶振，高性能贴片晶振，产品具有低损耗高精度高品质的特点.

石英晶振产品比较适合用于可视化智能家居，移动通信，蓝牙音响，无线设备，网络产品，小型设备，仪器仪表，汽车，电信，医疗等领域。欧洲石英晶振,SMX-7S无源谐振器,24.576MHZ晶体,6GWIFI晶振.

产品详情

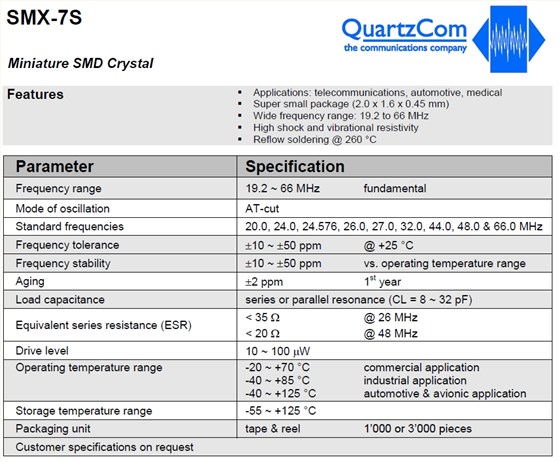

欧洲石英晶振,SMX-7S无源谐振器,24.576MHZ晶体,6GWIFI晶振参数表

Parameter	Specification
Frequency range	24.576MHZfundamental
Mode of oscillation	AT-cut
Standard frequencies	20.0, 24.0, 24.576, 26.0, 27.0, 32.0, 44.0, 48.0 & 66.0 MHz
Frequency tolerance	土10 ~土50 ppm@ +25 °C
Frequency stability	土10 ~土50 ppmvs. operating temperature range
Aging	土2 ppm	1st	year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 35Ω < 20Ω	@ 26 MHz @ 48 MHz
Drive level	10 ~ 100μW
Operating temperature range	-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C	commercial application industrial application automotive & avionic application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel1’000 or 3’000 pieces
Customer specifications on request
