QCM20-21AF16-27.000|QVS石英晶振|6GWIFI晶振，尺寸5.0x3.2mm,频率27MHZ，美国进口晶振，QVS无源晶体，小体积晶振，5032贴片晶振，无源贴片晶振，SMD晶振，陶瓷谐振器，两脚贴片晶振，轻薄型晶振，无铅环保晶振，贴片谐振器，水晶振动子，智能手机晶振，6WIFI专用晶振，仪器设备晶振，无线网络专用晶振，小型设备晶振，蓝牙音响贴片晶振，高品质无源晶振，低损耗晶振，高性能晶振，产品具有高品质高性能的特点。
SMD晶振产品被广泛用于智能手机，6WIFI应用，仪器设备，无线网络设备，小型设备晶振，蓝牙音响，测量与测试等领域.QCM20-21AF16-27.000|QVS石英晶振|6GWIFI晶振.
QCM20-21AF16-27.000|QVS石英晶振|6GWIFI晶振参数表

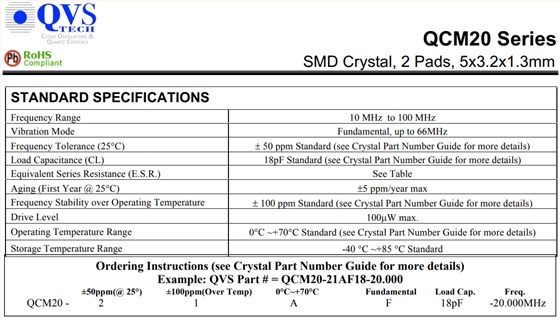

| STANDARD SPECIFICATIONS | ||||||||||||||||||||
| Frequency Range | 27 MHz | |||||||||||||||||||
| Vibration Mode | Fundamental, up to 66MHz | |||||||||||||||||||
| Frequency Tolerance (25°C) | ±50 ppm Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||
| Load Capacitance (CL) | 18pF Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||

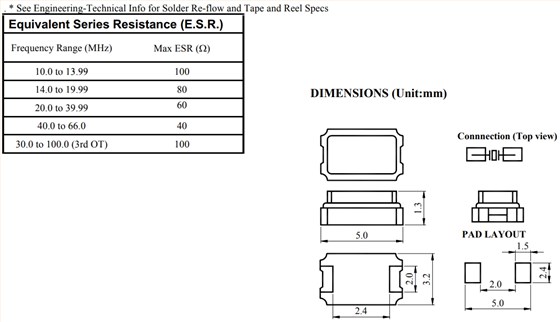

| Equivalent Series Resistance (E.S.R.) | See Table | |||||||||||||||||||
| Aging (First Year @ 25°C) | ±5 ppm/year max | |||||||||||||||||||
| Frequency Stability over Operating Temperature | ±100 ppm Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||
| Drive Level | 100μW max. | |||||||||||||||||||
| Operating Temperature Range | 0°C ~+70°C Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||
| Storage Temperature Range | -40 °C ~+85 °C Standard | |||||||||||||||||||

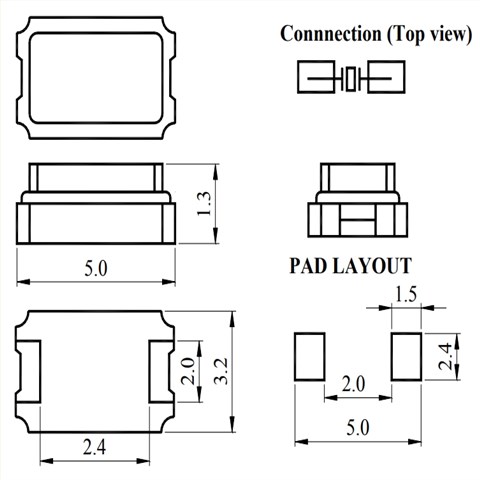

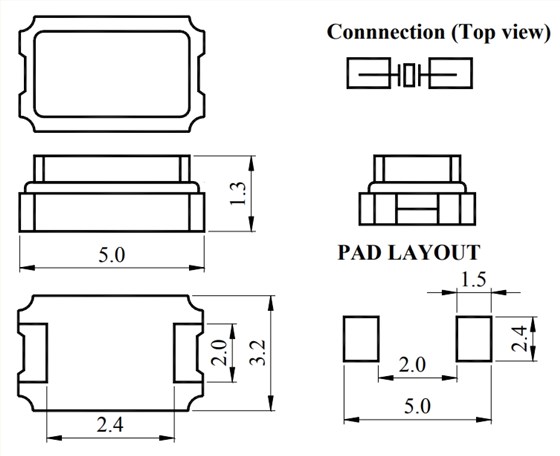

QCM20-21AF16-27.000|QVS石英晶振|6GWIFI晶振尺寸图
5032晶振产品特性：
优异的老化特性
符合RoHS标准且无铅
尺寸5.0x3.2mm
更多相关美国QVSCrystal型号，请咨询我们！
