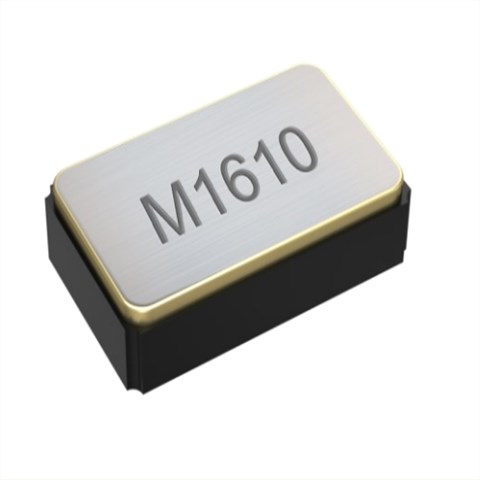

彼得曼汽车应用晶振,6G无线设备晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C)

产品简介

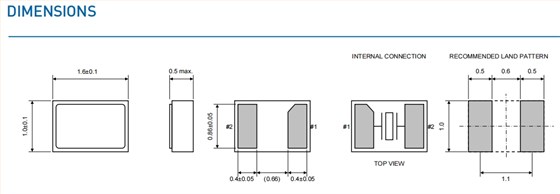

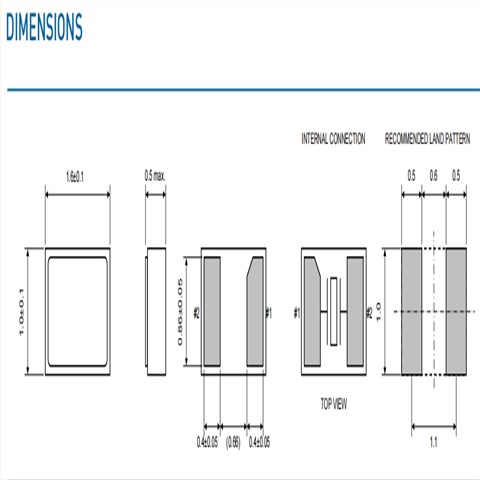

彼得曼汽车应用晶振,6G无线设备晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C)，尺寸1.61.0mm,频率32.768KHZ，德国彼得曼晶振，PETERMANN无源晶振，两脚贴片晶振，无源贴片晶振，SMD晶振，时钟晶振，32.768KHZ晶振，石英晶体，石英贴片晶振，轻薄型晶体，1610mm无源晶振，32.768KHZ音叉晶体，低功耗晶振，高质量晶振，无线应用晶振，可穿戴设备晶振，通信产品专用晶振，汽车应用晶振，小型设备晶振，蓝牙耳机晶振，时计晶振，具有低功耗轻薄型的特点。

无源晶振产品很适合用于无线设备、可穿戴设备、通信、汽车，蓝牙耳机，时计产品等，还可以广泛用于数码相机等领域。彼得曼汽车应用晶振,6G无线设备晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C).

产品详情

彼得曼汽车应用晶振,6G无线设备晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C)参数表

PARAMETERS	PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES	M1610
NUMBER OF SOLDER PADS	2
FREQUENCY RANGE	32.768 kHz
FREQUENCY TOLERANCES AT 25°C	±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)	12.5 pF (standard) 5.0, 7.0 and 9.0 pF available on request
WORKING TEMPERATURE RANGE	-40/+85°C or -40/+105° or -40/+125°
RESONANCE RESISTANCE	90 kΩ max.
SHUNT CAPACITANCE (Co)	1.3 pF typ.
TURNOVER TEMPERATURE	+25°C ±5°C
PARABOLIC COEFFICIENT	-0.03±0.01 ppm/°C²
DRIVE LEVEL	0.5 μW max.
AGING	±3 ppm max. per year
INSULATION RESISTANCE	>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE	-55°/+125°C
DELIVERY FORM	Tape and Reel (5.000 pcs per reel)
