D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振

产品简介

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振美国进口晶振,ConnorWinfield晶振,康纳温菲尔德晶振,型号:D75A系列,编码为:D75A-019.2M,频率为:19.2MHz,工作温度范围:0℃至+70℃,小体积晶振尺寸:7.0x5.0x2.0mm封装,10垫脚贴片晶振,有源晶振,石英晶振,TCXO温补晶振,温补晶体振荡器,石英晶体振荡器。具有超小型晶振,轻薄型晶振,低抖动晶振,低功耗晶振,低电压晶振,低耗能晶振,低损耗等特点。具有三态LVCMOS输出。通过使用模拟温度补偿,D75A能够在0至70°C的温度范围内保持低于1-ppm的稳定性。D75A满足第3层的要求。应用于:通讯设备晶振,以太网晶振,6G基站,物联网晶振,GPS定位晶振,导航仪等应用。

产品详情

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振美国进口晶振,ConnorWinfield晶振,康纳温菲尔德晶振,型号:D75A系列,编码为:D75A-019.2M,频率为:19.2MHz,工作温度范围:0℃至+70℃,小体积晶振尺寸:7.0x5.0x2.0mm封装,10垫脚贴片晶振,有源晶振,石英晶振,TCXO温补晶振,温补晶体振荡器,石英晶体振荡器。具有超小型晶振,轻薄型晶振,低抖动晶振,低功耗晶振,低电压晶振,低耗能晶振,低损耗等特点。具有三态LVCMOS输出。通过使用模拟温度补偿,D75A能够在0至70°C的温度范围内保持低于1-ppm的稳定性。D75A满足第3层的要求。应用于:通讯设备晶振,以太网晶振,6G基站,物联网晶振,GPS定位晶振,导航仪等应用。

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振,产品特点:

•3.3 Vdc操作,LVCMOS输出,频率稳定性:±0.28ppm

•温度范围:0至70°C,低抖动<1ps RMS,7050石英晶振

•三态启用/禁用功能,5x7mm表面安装封装

•磁带和卷轴包装,符合RoHS/无铅

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振,参数表

Parameter Minimum Nominal Maximum Units Notes
Nominal Frequency (Fo) 19.2 MHz
Frequency Calibration @ 25 °C -1.0 - 1.0 ppm 1
Frequency Stability vs. Temperature -0.28 - 0.28 ppm 2
Holdover Stability (Over 24 Hours) -0.32 - 0.32 ppm 3
Frequency vs. Load Stability -0.2 - 0.20 ppm ±5%
Frequency vs. Voltage Stability -0.2 - 0.20 ppm ±5%
Static Temperature Hysteresis - - 0.4 ppm Absolute, 4
Total Frequency Tolerance: -4.6 - 4.6 ppm 5
Operating Temperature Range: 0 - 70
Supply Voltage (Vcc) 3.135 3.3 3.465 Vdd ±5%
Supply Current (Icc) - - 6 mA
Period Jitter - 3 5 ps rms
Integrated Phase Jitter - 0.5 10 ps rms 6

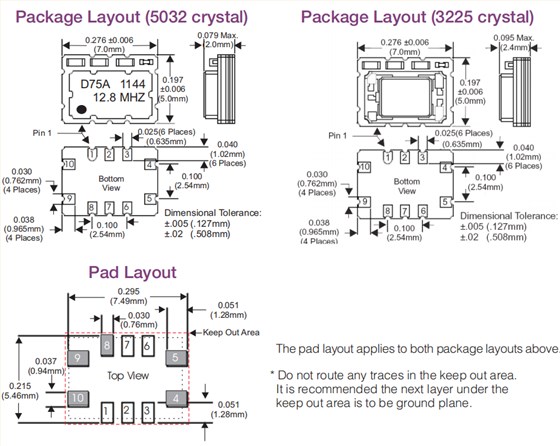

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振,尺寸图

D75A尺寸

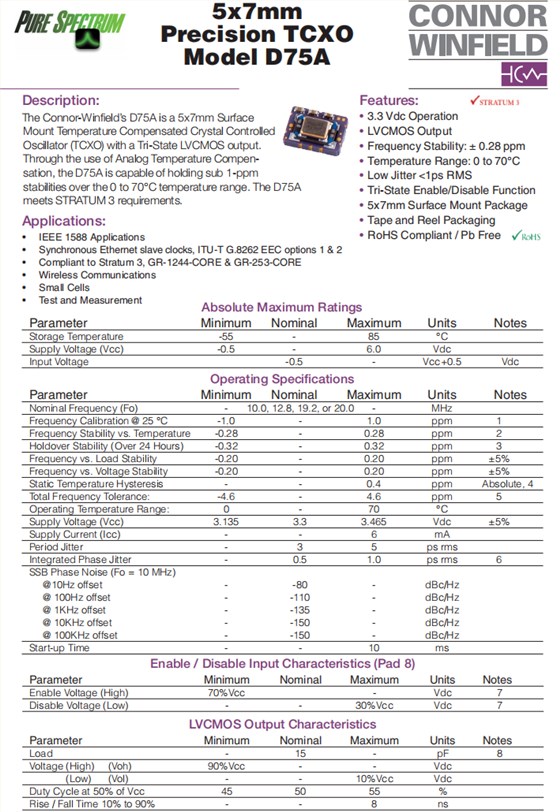

D75A规格

原厂代码 晶振厂家 型号 频率 工作温度 包装/封装
D75J-050.0M ConnorWinfield晶振 D75J 50MHz 0°C ~ 70°C 10-SMD, No Lead
D75J-038.88M ConnorWinfield晶振 D75J 38.88MHz 0°C ~ 70°C 10-SMD, No Lead
D75J-040.0M ConnorWinfield晶振 D75J 40MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-010.0M ConnorWinfield晶振 D75A 10MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-019.2M ConnorWinfield晶振 D75A 19.2MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-012.8M ConnorWinfield晶振 D75A 12.8MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-020.0M ConnorWinfield晶振 D75A 20MHz 0°C ~ 70°C 10-SMD, No Lead
D75AS-020.0M ConnorWinfield晶振 D75AS 20MHz 0°C ~ 70°C 10-SMD, No Lead
D75F-013.0M ConnorWinfield晶振 D75F 13MHz 0°C ~ 70°C 10-SMD, No Lead
D75F-019.44M ConnorWinfield晶振 D75F 19.44MHz 0°C ~ 70°C 10-SMD, No Lead
D75F-027.0M 康纳温菲尔德晶振 D75F 27MHz 0°C ~ 70°C 10-SMD, No Lead
D75F-025.0M ConnorWinfield晶振 D75F 25MHz 0°C ~ 70°C 10-SMD, No Lead
D75J-038.88M-T ConnorWinfield晶振 D75J 38.88MHz 0°C ~ 70°C 10-SMD, No Lead
D75J-050.0M-T ConnorWinfield晶振 D75J 50MHz 0°C ~ 70°C 10-SMD, No Lead
D75J-040.0M-T ConnorWinfield晶振 D75J 40MHz 0°C ~ 70°C 10-SMD, No Lead
D75F-013.0M-T ConnorWinfield晶振 D75F 13MHz 0°C ~ 70°C 10-SMD, No Lead
D75F-019.44M-T ConnorWinfield晶振 D75F 19.44MHz 0°C ~ 70°C 10-SMD, No Lead
D75F-025.0M-T ConnorWinfield晶振 D75F 25MHz 0°C ~ 70°C 10-SMD, No Lead
D75F-027.0M-T ConnorWinfield晶振 D75F 27MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-010.0M-T ConnorWinfield晶振 D75A 10MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-012.8M-T ConnorWinfield晶振 D75A 12.8MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-019.2M-T ConnorWinfield晶振 D75A 19.2MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-020.0M-T ConnorWinfield晶振 D75A 20MHz 0°C ~ 70°C 10-SMD, No Lead
D75AS-020.0M-T ConnorWinfield晶振 D75AS 20MHz 0°C ~ 70°C 10-SMD, No Lead
