22M245-8,22SMX石英谐振器,6G路由器晶振,SMI无源晶体

产品简介

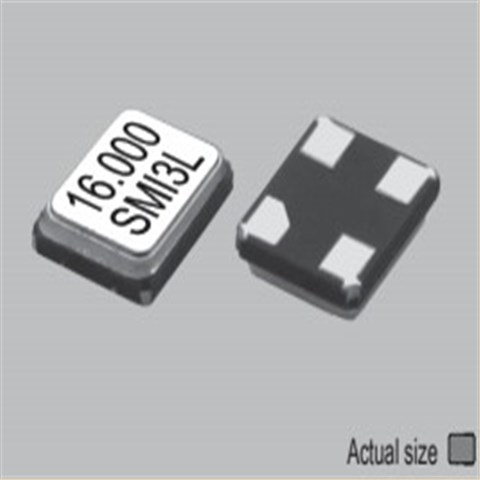

22M245-8,22SMX石英谐振器,6G路由器晶振,SMI无源晶体，尺寸2.5*2.0mm,频率24.576MHZ，日本进口晶振，SMI石英晶体，四脚贴片晶振，2520mm无源晶体，石英晶体谐振器，贴片石英晶体，无源晶体，水晶振动子，SMD晶振，石英无源晶振，高品质贴片晶振，高性能石英晶振，低损耗无源晶体，路由器石英晶振，智能音响晶振，测试测量石英晶振，小型设备晶振，无线网络专用晶振，物联网晶振，通信产品专用晶振，具有高性能高品质的特点.

石英晶振产品适用于十分广泛，尤其适合用于路由器，智能音响，测试测量，小型设备，无线网络，物联网，通信产品等领域。22M245-8,22SMX石英谐振器,6G路由器晶振,SMI无源晶体.

产品详情

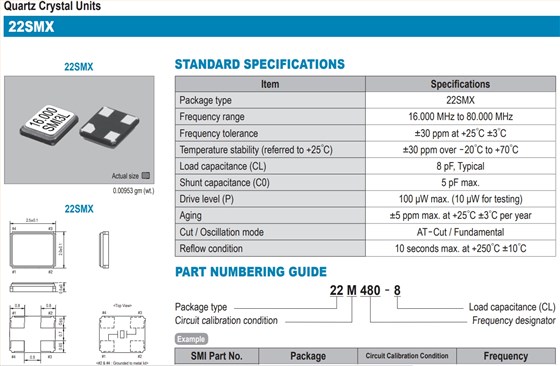

22M245-8,22SMX石英谐振器,6G路由器晶振,SMI无源晶体参数表

Item					Specifications

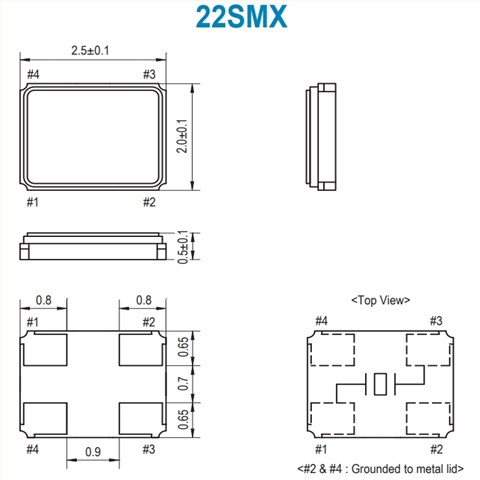

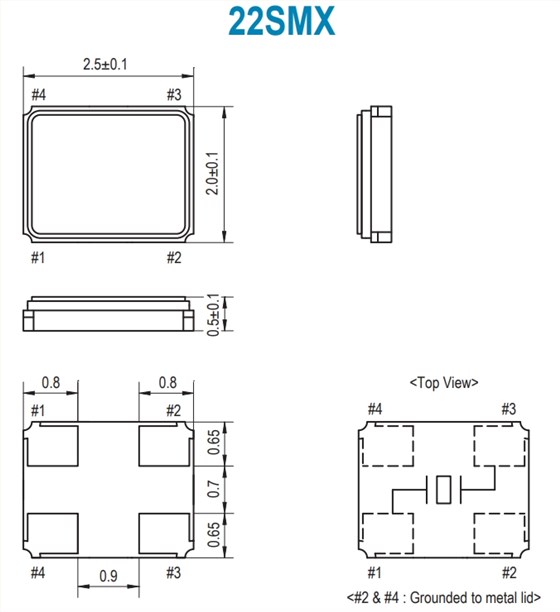

Package type					22SMX
Frequency range					24.5760 MHz
Frequency tolerance					±30 ppm at +25℃ ±3℃
Temperature stability (referred to +25℃)					±30 ppm over-20℃ to +70℃
Load capacitance (CL)					8 pF, Typical
Shunt capacitance (C0)					5 pF max.

Drive level (P)					100 μW max. (10 μWfor testing)

Aging					±5 ppm max. at +25。C ±3。C per year
Cut / Oscillation mode					AT-Cut / Fundamental

Reflow condition					10 seconds max. at +250。C ±10。C
