Jauch推出TCXO高精度JT21S专用于无线网络

2023-10-19 14:02:46

Jauch推出TCXO高精度JT21S专用于无线网络

NEW JAUCH-TCXOS: HIGHEST PRECISION FOR BLUETOOTH, WIFI, ZIGBEE ETC

Whether it’s Bluetooth, ZigBee, WiFi or SigFox; these standards for wireless data transmission operate with extremely low high-frequency channel bandwidths. Wireless applications using these standards thus rely on a highly precise reference clock to guarantee smooth functioning.
In order to meet the needs of these applications, Jauch Quartz has advanced the development of its JT-series, launching the JT21S. This new component is a temperature compensated crystal oscillator (TCXO), characterized by an excellent frequency stability of up to ± 0.5 ppm. The JT21S thus works even more precisely than the other components of the JT product family. The improved pad layout also ensures optimum compatibility with almost all applications.
Under the designation JT21SV, Jauch also offers the new component as VCTCXO with additional voltage control. This enables the user to fine-tune the desired output frequency by at least ± 8.0 ppm.
The JT21S and JT21SV are available in the frequency range from 9.5 MHz to 52.0 MHz. Their operating voltage ranges from 1.8 Volt to 3.3 Volt. Thanks to their "clipped sine" output, typical for the JT-series, both oscillators have very low current consumption.
Measuring only 2.6 mm x 1.6 mm x 0.7 mm, the JT21S and JT21SV are the smallest members of the JT product family and are therefore ideally suited for the use on particularly compact PCBs and circuits. Both components are available for the industrial operating temperature range from -40°C to 85°C.
Besides IoT applications, metering solutions or consumer products benefit from the excellent frequency stability of the new components. Additionally, Jauch recently introduced its newly developed TCXOs JT21G and JT21GE for use in satellite-based navigation systems.

The JT21S and JT21SV are both 100 percent lead-free and RoHS and REACH compliant. Both also comply to conflict minerals regulations.

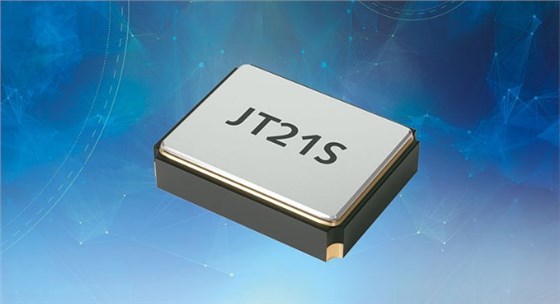

JT21S


Jauch推出TCXO高精度JT21S专用于无线网络

新的JAUCH-TCXOS:最高精度的蓝牙，无线网络，ZIGBEE等
无论是蓝牙、ZigBee、WiFi还是SigFox这些无线数据传输标准以极低的高频信道带宽工作。因此，使用这些标准的无线应用依赖高度精确的参考时钟来保证平稳运行。
为了满足这些应用的需求，Jauch Quartz推进了JT系列的开发，推出了JT21S。这款新器件是一款温度补偿晶振(TCXO)，具有高达0.5ppm的出色频率稳定性。因此，JT21S比JT产品系列的其他组件工作更精确。改进的焊盘布局也确保了与几乎所有应用的最佳兼容性。JT21S小体积尺寸：2.0x1.6mm封装，四脚贴片晶振，石英晶振，TCXO晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，高精度，高性能，高品质，低抖动，低功耗，低电压，低相位噪声，低电平等特点。
在JT21SV名称下，Jauch还提供了带有附加电压控制的新元件VCTCXO。这使用户能够将所需输出频率微调至少8.0ppm。
JT21S和JT21SV的工作频率范围为9.5MHz至52.0MHz。它们的工作电压从1.8V到3.3V不等。由于其“削波正弦”输出，典型的JT系列，两个振荡器具有非常低的电流消耗。
Jauch晶振JT21S和JT21SV的尺寸仅为2.6mmx1.6mmx0.7mm石英晶振，是JT产品家族中最小的成员，因此非常适合在特别紧凑的PCB和电路上使用。这两款器件均可用于-40°C至85°C的工业工作温度范围。
除了物联网应用之外，计量解决方案或消费产品也受益于新器件出色的频率稳定性。此外，Jauch最近推出了新开发的用于卫星导航系统的TCXOs JT21G和JT21GE。
JT21S和JT21SV均为100%无铅产品，符合RoHS和REACH标准。两者都符合冲突矿物法规。

贴片晶振 品牌 描述 系列 频率
Q 26.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 10PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 10PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 10PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 12PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 12PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 12PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 8PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 8PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 8PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 9PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 9PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 9PF SMD JXS21-WA 26MHz
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 10PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 10PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 10PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch晶振 CRYSTAL 27.12MHZ 9PF SMD JXS21-WA 27.12MHz
Q 38.4-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 10PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 10PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 10PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 12PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 12PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 12PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 8PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 8PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 8PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 9PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 9PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 9PF SMD JXS21-WA 38.4MHz
Q 40.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 10PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 10PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 10PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 12PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 12PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 12PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 8PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 8PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 8PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 9PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 9PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 9PF SMD JXS21-WA 40MHz
Q 32.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 10PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 10PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 10PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 12PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 12PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 12PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 8PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 8PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 8PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 9PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 9PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 9PF SMD JXS21-WA 32MHz
Q 19.2-JXS21-10-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 10PF SMD JXS21-WA 19.2MHz
Q 19.2-JXS21-10-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 10PF SMD JXS21-WA 19.2MHz
Q 19.2-JXS21-10-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 10PF SMD JXS21-WA 19.2MHz
Q 19.2-JXS21-12-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 12PF SMD JXS21-WA 19.2MHz
Q 19.2-JXS21-12-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 12PF SMD JXS21-WA 19.2MHz
