JAUCH发布新振荡器JO22和JO32实时时钟

JAUCH发布新振荡器JO22和JO32实时时钟

HIGH PERFORMANCE FREQUENCY STABILITY FOR RTC DEVICES: JAUCH QUARTZ RELEASES NEW OSCILLATORS
Real Time Clocks (RTCs) ensure accurate time measurement in laptops, smartphones, metering and numerous other electronic devices. At the heart of each RTC there is usually a tuning fork quartz crystal with a frequency of exactly 32.768 kHz.

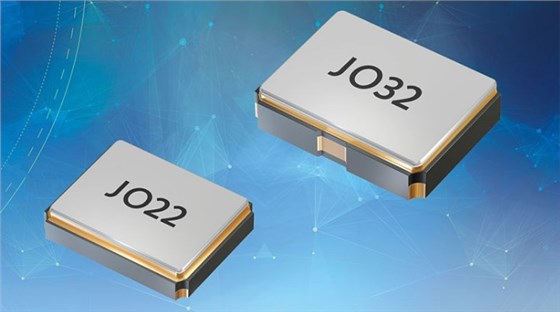

Jauch Quartz developed the new oscillators JO22 32.768 kHz and JO32 32.768 kHz especially for these applications. In contrast to tuning fork-based oscillators, these new Jauch components use an AT-cut quartz blank and thus feature a significantly superior frequency stability.
In a temperature range between -20°C and 70°C a frequency stability of ± 25 ppm is achieved. In the extended temperature range between -40°C and 85°C ± 30 ppm is possible and even at extreme heat of up to 125°C the oscillators reliably generate the desired frequency to ± 100 ppm.
Just like the JO22 and JO32 oscillators for the MHz range that were introduced last year, the new Jauch components for 32.768 kHz operate with a variable supply voltage between 1.8 V and 3.3 V. Within this range, variations in the operating voltage have no negative effect on frequency stability.
The JO22 32.768 kHz and the JO32 32.768 kHz have an LVCMOS-compatible output signal which is suitable for operating standard logic circuits. Thanks to their ultra-compact miniature SMD packages of only 2.5 mm x 2.0 mm x 0.8 mm and 3.2 mm x 2.5 mm x 1.0 mm, respectively, the oscillators are ideally suited for the development of particularly small PCBs and circuits within various applications.
The oscillators are 100 percent lead-free and RoHS and REACH compliant. Both components comply to conflict minerals regulations.

RTC器件的高性能频率稳定性：JAUCH发布新振荡器JO22和JO32实时时钟

振荡器100%无铅，符合RoHS和REACH标准。这两种成分都符合冲突矿物法规。

Jauch根据您的要求为您的电池系统提供完整的解决方案-标准电池和定制电池组，从简单的电池到最苛刻应用的智能电池组。
Jauch晶振频率控制产品按照最高质量标准生产和配置。因此，即使在极端条件下，对于最复杂的半导体芯片，它们也能可靠地设定速度。
Jauch集团是石英晶体、晶体振荡器和电池技术的主要专家之一。成立于1954年，我们现在是频率控制产品领域的领先公司之一，也是锂离子和锂聚合物电池新兴市场的公认专家。
