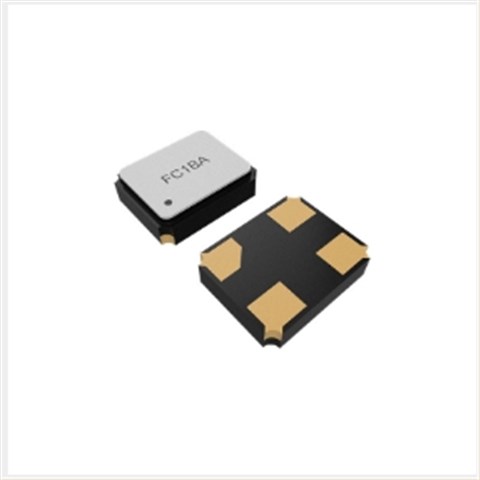

FOX福克斯晶振\FC1BACBEI20.0-T3\6G交换机晶振

产品简介

FOX福克斯晶振\FC1BACBEI20.0-T3\6G交换机晶振，尺寸2.0mmx1.6mm,频率20MHZ,负载电容10PF，福克斯无源晶体，欧美进口晶振，FOX贴片晶体，SMD晶振，无源晶振，石英晶体，水晶振动子，石英晶体谐振器，石英贴片晶体，SMD无源晶振，2016mm贴片晶振，低损耗晶振，高性能石英晶振，高精度石英晶振，高品质晶振，6G交换机专用晶振，可穿戴设备专用晶振，物联网专用晶振，移动通信晶振，蓝牙音响专用晶振，智能手机晶振，无线设备晶振，娱乐产品专用晶振，具有轻薄小,高性能的特点。

石英晶体产品常常被应用于可穿戴设备，还可以广泛应用于物联网，移动通信，蓝牙音响，智能手机，无线设备，娱乐产品等领域.FOX福克斯晶振\FC1BACBEI20.0-T3\6G交换机晶振.

产品详情

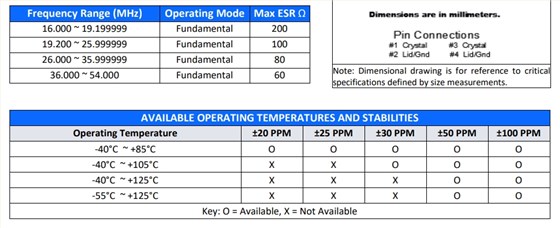

FOX福克斯晶振\FC1BACBEI20.0-T3\6G交换机晶振参数表

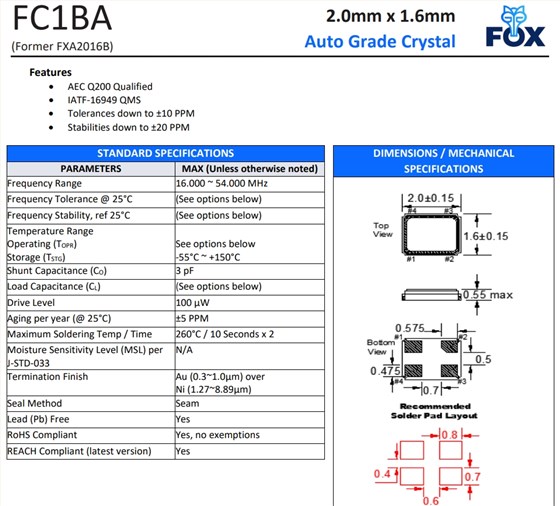

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

20.000 MHz

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C

(See options below)

Temperature Range
Operating (TOPR)
Storage (TSTG)

See options below
-55°C ~ +150°C

Shunt Capacitance (CO)

3 pF

Load Capacitance (CL)

(See options below)

Drive Level

100 µW

Aging per year (@ 25°C)

±5 PPM

Maximum Soldering Temp / Time

260°C / 10 Seconds x 2

Moisture Sensitivity Level (MSL) per
J-STD-033

N/A

Termination Finish

Au (0.3~1.0µm) over
Ni (1.27~8.89µm)

Seal Method

Seam

Lead (Pb) Free

Yes

RoHS Compliant

Yes, no exemptions

REACH Compliant (latest version)

Yes

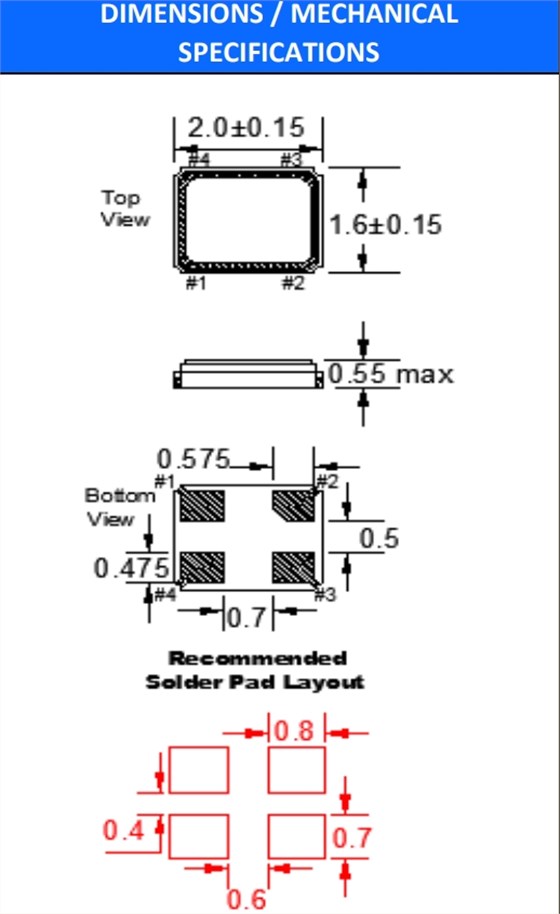

FOX福克斯晶振\FC1BACBEI20.0-T3\6G交换机晶振尺寸图

石英晶振产品特性：

符合AEC Q200标准

IATF-16949质量管理系统

公差低至10PPM

稳定性低至20PPM
